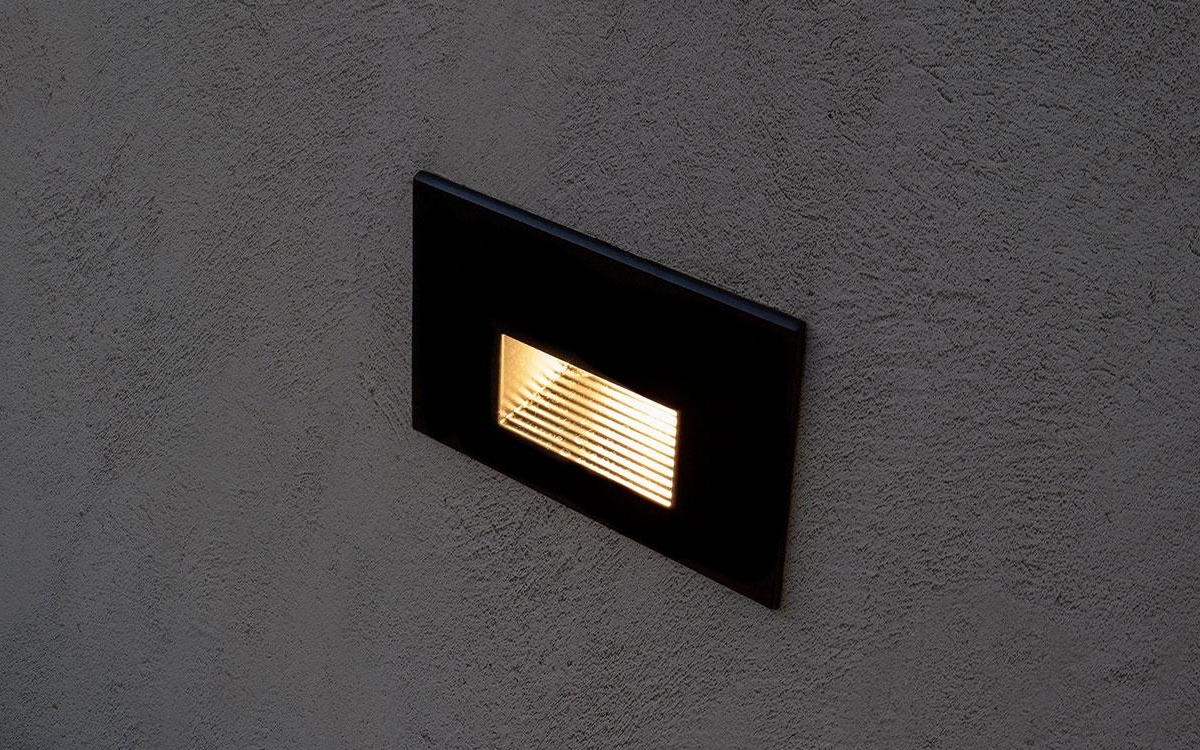

The RH Recessed Wall/Step Light is designed for sleek, seamless integration, making it a modern and efficient upgrade for illuminating walkways and stairs. This fully recessed fixture is available in 1 LED, 3 LED, and ZDC configurations, with integrated LED light sources that provide diffused, soft illumination. This helps to reduce glare, which is critical in applications where changes in grade require safe, clear visibility. Its robust mechanical sealing and full potting make it ideal for near-grade installations, and it is compatible with standardized single-gang junction boxes for ease of installation.
Constructed from durable die-cast A380 aluminum, the RH features a two-layer marine-grade anodization combined with a polyester TGIC powder coat finish, ensuring superior weather resistance tested to ASTM standards. The polycarbonate lens is shock-resistant and tolerates thermal expansion and stress, while tamper-resistant stainless steel fasteners secure the fixture. Inside, the integrated Cree LEDs with gold-plated connectors and conformal coating maximize reliability and corrosion resistance. The fixture’s onboard intelligent driver uses firmware-controlled temperature regulation to extend LED lifespan, with LEDs rated for up to 50,000 hours and a maximum drive current of 1 amp. The socket incorporates MoistureBlock™ technology to prevent moisture from penetrating sealed areas, further enhancing durability.
The RH operates at an input voltage of 10 to 15 volts AC or DC and requires a remote transformer, which must be specified separately. It offers excellent performance with a color rendering index (CRI) of 80+ to 84 depending on the configuration and produces between 36 and 98 total lumens. The light output efficacy ranges from 17 to 23 lumens per watt. Optics are carefully engineered, with beam angles calculated using the LM-79 method for solid-state lighting. Control options include phase dimming through the transformer and secondary dimming using either phase-cut or Luxor technology. Luxor compatibility allows zoning of fixtures into up to 250 groups, with dimming in 1% increments and color adjustments for RGBW-enabled models, supporting up to 30,000 colors.
The RH Recessed Wall/Step Light is designed for recessed installation in vertical walls in a down-lighting position. It weighs approximately one pound (0.5 kg) and is rated to operate in ambient temperatures ranging from 0°F to 140°F (-18°C to 60°C). The fixture is built with sustainability in mind, using recycled materials where possible without sacrificing performance. It provides energy-efficient, high-quality illumination with a long operational lifespan and durability. The RH comes with a 10-year limited warranty, and its construction sleeve is compatible with standardized single-gang junction boxes, ensuring easy installation and replacement.
