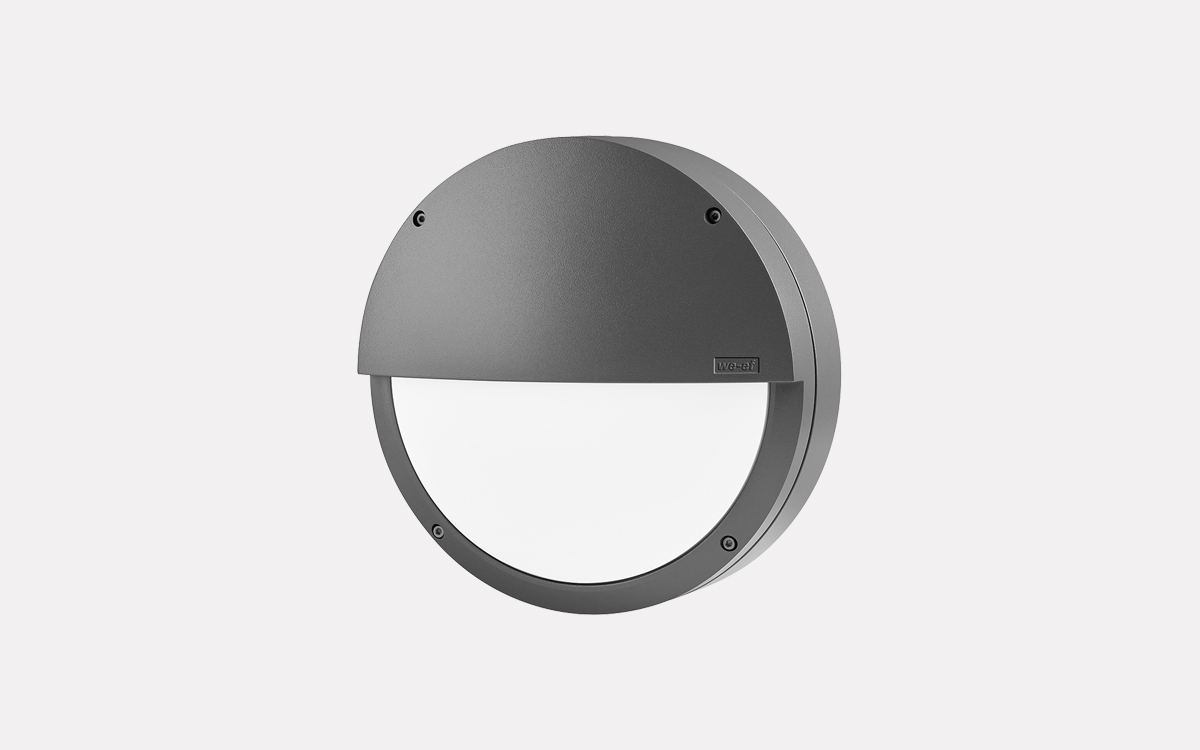

The DLS229 LED is a robust wall luminaire designed for demanding outdoor environments. It features an IP55 rating and Class I electrical protection, with Class II available upon request. The fixture is built from marine-grade die-cast aluminium alloy, ensuring excellent durability and resistance to harsh conditions. Its construction includes 5CE superior corrosion protection along with PCS polymer-coated stainless steel hardware, making it highly suitable for coastal or industrial settings where corrosion is a concern.
To provide reliable sealing and long-lasting performance, the luminaire incorporates a silicone rubber gasket and a polycarbonate main lens that offers strong impact resistance rated at IK10. The design includes two cable entries for flexible installation options. The LED circuit board is factory-installed and sealed, paired with an integral EC electronic converter that ensures efficient and stable power management.
The DLS229 LED comes in a variety of architectural finish options, including RAL9004 Signal Black, RAL9006 White Aluminium, RAL9007 Grey Aluminium, RAL7016 Anthracite Grey, and RAL9016 Traffic White, allowing seamless integration into diverse exterior design schemes. Its power supply supports a standard voltage of 220-240V at 50-60 Hz, and the built-in surge protection of 1/2 kV provides enhanced resilience against electrical disturbances.
This combination of marine-grade materials, robust sealing, and reliable electronic components makes the DLS229 LED an ideal choice for exterior lighting in commercial, industrial, and coastal applications.
