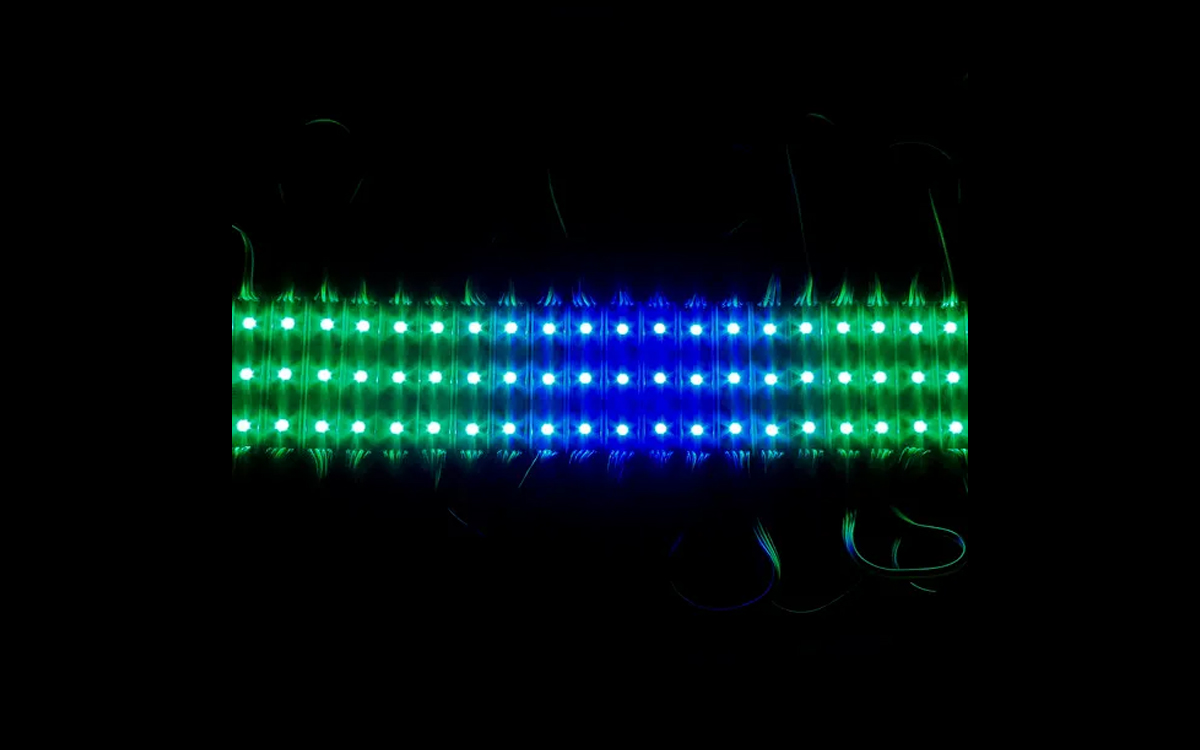

The Waterproof RGB PixelPro LED Rectangle Modules are designed to deliver vibrant, intelligent lighting effects by combining three RGB LEDs with an advanced WS2801 integrated circuit chip. Each module is equipped with its own IC, requiring three addresses for complete color control. This design ensures that every module in a chain can be individually addressed, offering the freedom to create dynamic animated lighting effects with remarkable precision. After extensive testing of different IC options, the WS2801 was chosen for its superior performance. It offers a wider color spectrum, faster processing, improved efficiency, and enhanced overall reliability compared to other chips on the market, making it the ideal choice for high-quality pixel-controlled lighting.
These modules are simple to integrate into professional lighting systems, especially when paired with the DMX512 Pixel Decoder. The DMX512-PX-2801 seamlessly converts standard DMX output into the serial protocol required by the WS2801, enabling compatibility with DMX controllers and light boards. This allows designers to fully customize and synchronize lighting across multiple modules, opening endless possibilities for effects such as color waves, chasing patterns, scrolling text, rain simulations, rotating graphics, and company logos. With every rectangle individually addressable, the PixelPro system is perfect for creative backlighting and complex displays that go far beyond the limitations of traditional LED lighting.
Each chain consists of twenty modules with input and output connectors for linking multiple strings. The modules are directional, with a female connector serving as the input and a male connector as the output, indicated by arrows for clarity. While the modules themselves are IP65 rated for water resistance, the connectors are not waterproof, nor are cut sections of the chain. Installation is designed to be fast and flexible: every module features double-sided adhesive backing, so you can cut, peel, and stick them directly to most surfaces. With 20 cm (about 8 inches) of wire between each module, the flexible wiring allows you to arrange them around corners, edges, or custom layouts, and reposition them easily to eliminate dark spots. For reliable performance across larger installations, power injection is recommended every twenty modules by applying power at both ends of a string or between chains, reducing voltage drop and ensuring consistent brightness throughout the run.
The PixelPro Rectangle Modules are built with epoxy-encased housings to provide durability and weather resistance, making them suitable for both indoor and outdoor use. Each module measures 74 mm in length, 14 mm in width, and 10 mm in height, with LED spacing of 25.4 mm (1 inch). Operating on 12V DC, each module consumes 0.72 watts, with a full 20-module string using approximately 14.4 watts. The LEDs emit vivid red, green, and blue light at wavelengths of 623 nm, 522 nm, and 472 nm respectively, producing bright, consistent colors without ultraviolet emissions, ensuring that sensitive artwork, documents, or surfaces remain unharmed. With an expected lifetime of 50,000 hours, RoHS compliance, and a limited three-year warranty, these modules are engineered for long-lasting, dependable operation. The manufacturer’s commitment to quality is evident in the choice of premium LEDs and materials, prioritizing color vibrancy, longevity, and reliability over commodity-grade alternatives.
The versatility of these modules makes them ideal for countless applications. They can transform restaurants, lounges, casinos, retail stores, and homes with decorative and accent lighting. Their pixel-level control makes them a perfect choice for display boards, trade show exhibits, entertainment centers, and home theaters, as well as architectural lighting for glass panels, models, and building features. They are also popular in specialty environments such as wine cellars, yachts, and cruise ships, and can be used for vehicular accent lighting in limousines, RVs, or custom cars. Beyond commercial and architectural uses, they are excellent for arts, crafts, and creative DIY projects, thanks to their flexibility and easy installation. Whether used for professional studios, stage productions, or unique architectural designs, the PixelPro Rectangle Modules provide a powerful, customizable, and durable lighting solution that makes bold, animated effects possible anywhere.
