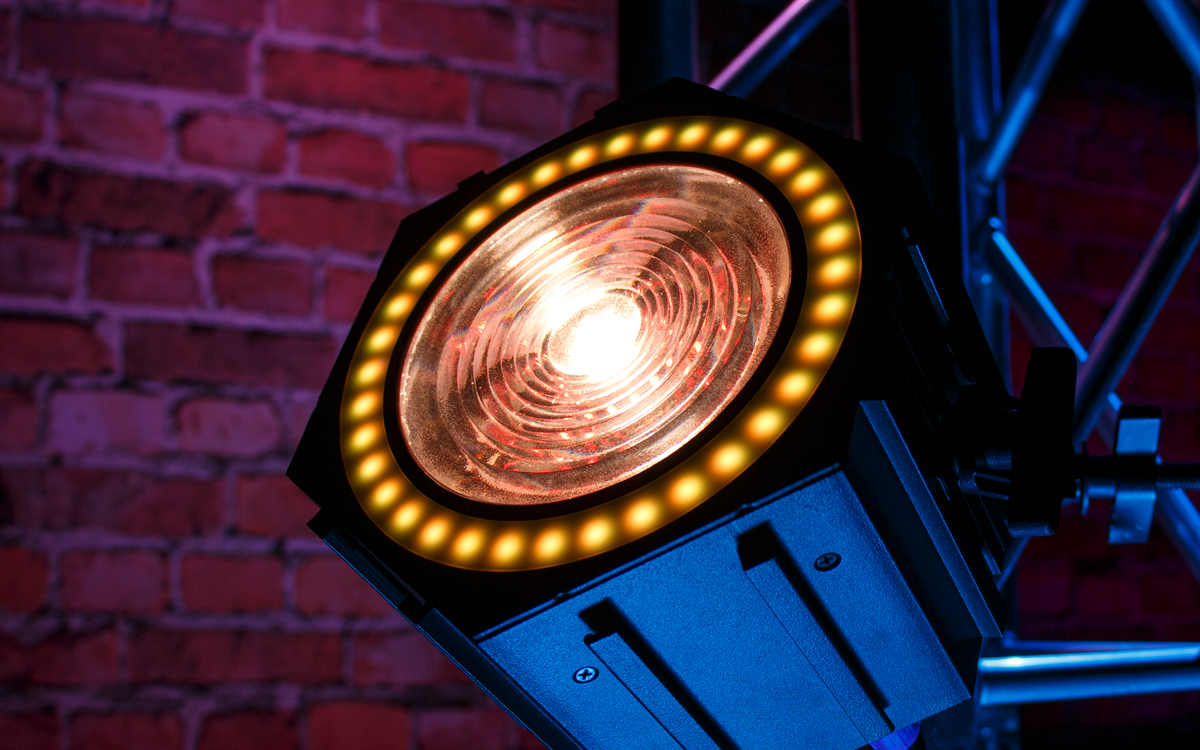

The Nexys warm white LED effects light combines a powerful 80W warm white LED with advanced RGB pixel ring and backlight technology, creating a versatile fixture suitable for concerts, theater, clubs, and dynamic visual installations. Its 3200K warm white beam is projected through a precise 10° Fresnel lens, delivering a sharp and focused spotlight effect. Surrounding the primary LED, the fixture incorporates an outer 6-pixel RGB diffused ring and an inner 6-pixel RGB backlight, enhancing its visual impact and providing a rich palette of colors and effects that complement the warm white beam.
Engineered with a unique interlocking housing design, these fixtures can be connected in virtually any orientation—horizontally, vertically, or diagonally—allowing designers to create captivating visual arrays or modular lighting walls. Each Nexys fixture is housed in a robust aluminum enclosure and includes dual mounting brackets and an Omega bracket with quick-lock quarter-turn fasteners, ensuring secure installation and flexible positioning in both temporary and permanent setups. The interlocking design enables seamless integration of multiple units to scale the visual impact across stages, events, or architectural installations.
Control versatility is a key feature of the Nexys warm white LED effects light. The fixture includes a 4-button LCD menu for direct operation and supports DMX control via 5-pin in/out connections. Individual control of each of the six inner and six outer pixel ring groups allows for intricate programming, while built-in programs, smooth dimming from 0–100%, and strobe effects provide dynamic visual options. PowerCON TRUE1-compatible in/out connections allow easy daisy-chaining of power across multiple fixtures, simplifying setup and enhancing operational efficiency.
Optically, the fixture balances the sharp warm white beam with colorful RGB effects. The 36 SMD 5050 RGB LEDs in the outer ring and 18 SMD 5050 RGB LEDs in the inner backlight can be independently controlled for smooth color transitions, manual color mixing, and combined pixel effects. This dual-layered lighting design creates depth and dimensionality, making it ideal for eye-catching stage visuals, immersive event environments, or accenting architectural features. With a power consumption of 90W at 100–250VAC and a power factor of 0.64, the fixture is efficient yet delivers robust light output for demanding applications.
Overall, the Nexys warm white LED effects light provides a combination of precision optics, versatile RGB pixel effects, flexible interlocking design, and comprehensive control options, making it a highly adaptable solution for lighting designers seeking both functional illumination and visually striking effects in professional environments.
