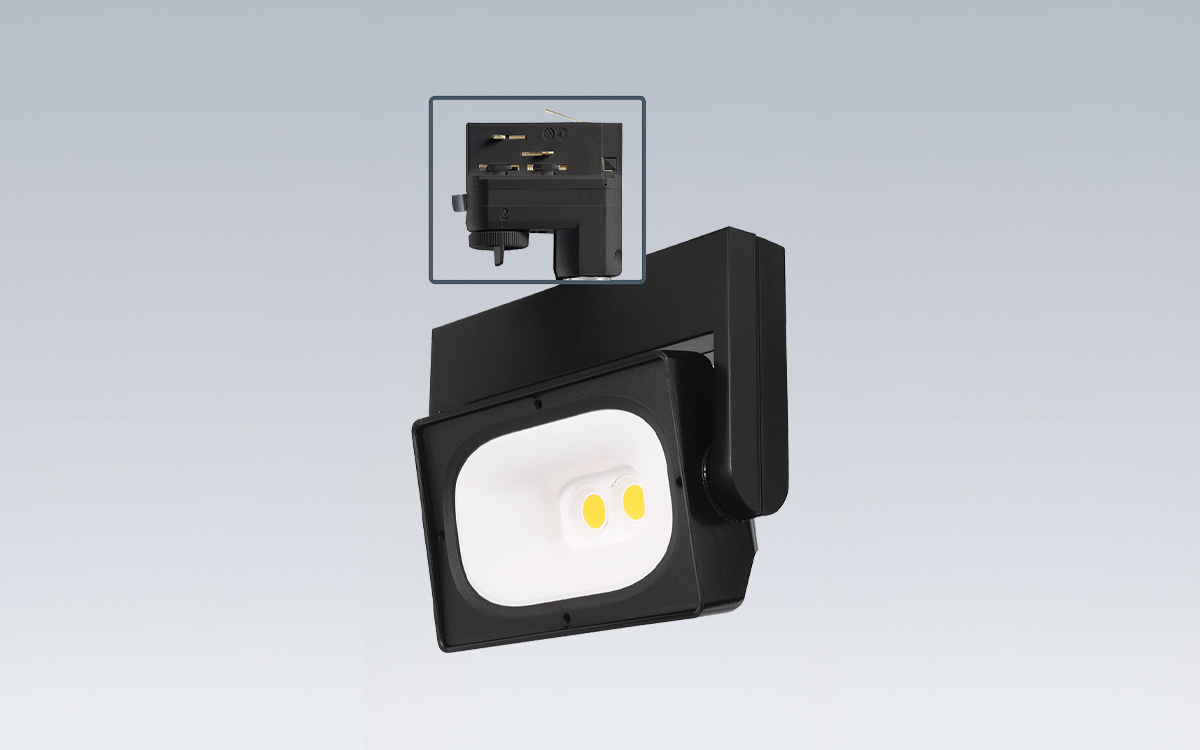

The Juno® TEK T1053L wall wash/flood LED track fixture combines bold performance with a slim, contemporary profile, offering up to 3,715 lumens from a mere 26-watt input. This powerful fixture achieves exceptional energy efficiency while maintaining a visually unobtrusive appearance, integrating seamlessly into surrounding environments. Available in black, silver, and white finishes, the T1053L maintains clean, simple aesthetics through fully enclosed wiring. A custom hyperbolic reflector ensures exceptionally uniform, wide beam distributions while minimizing aperture brightness for maximum visual comfort. The fixture provides full 360° horizontal rotation and 90° vertical aiming, equipped with vertical aiming scales and locking set screws for precise, secure positioning. Compatibility with the 120V Juno HD Commercial Trac system and a selection of light control accessories expands flexibility for a range of applications.
The T105xL family of narrow-profile LED wall wash/flood fixtures extends this capability, delivering a uniform punch of light while consuming less energy than comparable ceramic metal halide fixtures. Lumen packages range from 1,392 up to 6,317 lumens, achieving efficacy of up to 148 lumens per watt. Utilizing a patented hyperbolic reflector, these fixtures produce a consistent, wide beam pattern with minimal aperture brightness. Their narrow profile and small footprint reduce visual clutter at the ceiling, while die cast aluminum construction maintains a stable center of gravity regardless of aiming. Vertical aiming locks enable precise positioning, and optional light control accessories provide further beam optimization. With optimized thermal management, the fixtures achieve a maintenance-free minimum of 50,000 hours at 70% lumen maintenance. Available in 2700K, 3000K, 3500K, and 4000K color temperatures, the T105xL family is compatible with Juno Trac-Master and Trac-Lites track systems.
The T105xL fixture housing is constructed from robust die cast aluminum, providing consistent balance and heat management while concealing wiring for a clean aesthetic. Available finishes include white semi-gloss, black semi-gloss, and silver metallic paint. Two high-brightness LEDs per fixture deliver reliable, consistent color quality, with 80 CRI minimum on standard versions and optional 90 CRI high-quality options. Chromaticity is maintained within a 2-step MacAdam Ellipse, ensuring uniform color appearance.
The fixture driver is cleverly integrated into the yoke arm, with an insulating air gap between the driver and LEDs to optimize thermal performance. The solid-state electronic driver includes integral overcurrent and short-circuit protection and is FCC Part 15 Class B certified at 120V. Standard 120V fixtures are compatible with a range of high-quality dimmers approved by Juno, maintaining constant color temperature across the dimming range.
The patented hyperbolic reflector produces a uniform wide beam pattern approximately 102° horizontal by 79° vertical while recessing LEDs to minimize aperture brightness. The T105xL fixtures provide 365° horizontal coverage and 95° vertical aiming in either direction, with aiming lock screws and scales for precise adjustment. Vertical lock screws use a standard 1/16" hex wrench, which is included.
Lenses and light control accessories attach to the front bezel using four Philips screws, included with the accessory. Standard fixtures ship without a lens to maximize photometric performance, while clear polycarbonate, diffusion, or UV filter lenses can be installed either at the factory or in the field. Additional lens options are available upon request.
The T105xL fixtures are compatible with multiple track adapters. The Juno Universal Track Adapter fits Trac-Master 1-circuit or 2-circuit track, Trac-Lites track, monopoints, and special mountings. It features copper alloy contacts, spring-loaded positive latch, embossed polarity arrows, and an integral on/off switch. Alternate adapters include TEK/HTEK, GTYPE, HTYPE, and LTYPE, which are system-specific, assembled to the fixture, and designed to ensure proper orientation and secure two-circuit operation.
All T105xL fixtures are UL and cUL listed, with 120V versions DesignLights Consortium® qualified. Union-made and assembled in the U.S.A., the 90 CRI versions comply with California Title 24 Part 6 high-efficacy LED requirements. The fixtures meet Buy America(n) Act and Build America Buy America standards, qualifying as domestic end products under FAR, DFARS, and DOT regulations.
