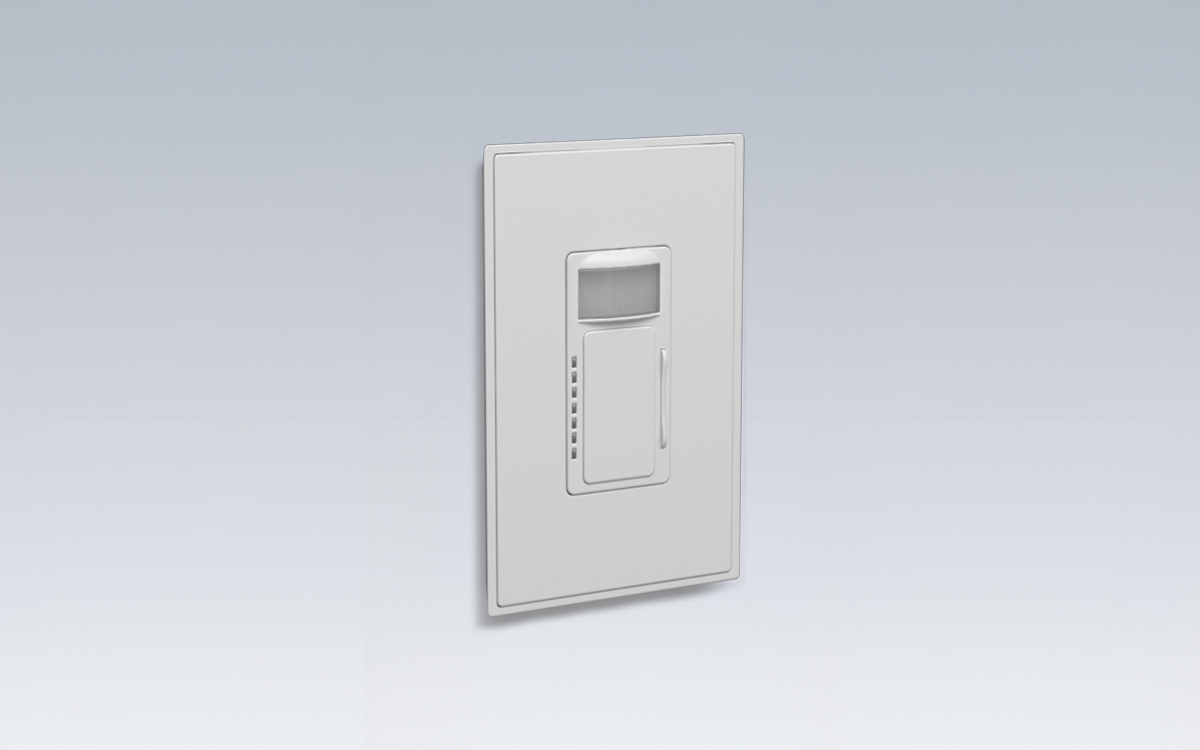

The BubblyNet Keypad is a wall-mounted dimmer switch with an integrated occupancy sensor, offering wireless dimming and sensing through Bluetooth® Mesh. Available in white with three interchangeable faceplate color options, the device combines smart lighting control with occupancy-based automation to enhance convenience, energy management, and user comfort in indoor environments. The K-C3-UDS-00WH model utilizes a Passive Infrared (PIR) sensor, making it ideal for applications with a clear line of sight and adequate air circulation. When motion is detected, the sensor automatically sets the lights to a predetermined dimming level, and after the area is vacated, the lights are automatically turned off. This functionality is particularly well suited for spaces such as conference rooms, offices, classrooms, and private restrooms.
The sensor switch operates on a wide input voltage range of 110–277 VAC at 50/60Hz and is capable of covering a maximum sensor range of 48 feet by 36 feet when mounted at a standard height of 3.5 feet (14.6 meters by 11 meters at 1.01 meters). Its Bluetooth® Low Energy connectivity has a typical range of 30 feet (15.2 meters), enabling reliable communication with other mesh-enabled devices. Users can adjust time delays and photocell sensitivity levels—ranging from low to high—according to specific application needs. The device is rated for an operating temperature range of 32°F to 131°F (0°C to 55°C) and a storage range of 14°F to 140°F (-10°C to 60°C), with a relative humidity tolerance of up to 95% non-condensing, ensuring robust performance in a variety of indoor conditions.
Installation is straightforward, as the K-C3-UDS-00WH can replace a standard single-pole wall switch and be mounted to a standard plastic J-Box, which is highly recommended to maximize wireless coverage. The compact unit measures 4.5 inches by 2.75 inches by 0.75 inches (114.3 x 69.85 x 19.05 mm) and comes in a white color finish, with three optional faceplate colors to match interior design preferences. Once installed and connected to a Bluetooth® Mesh network, the switch can control a group of luminaires within a specific zone, allowing centralized control of lighting in rooms or sections of a building. Through the BubblyNet Commissioning App, users can customize sensor parameters including time delay, dimming level, and occupancy behavior to optimize lighting performance and convenience. The K-C3-UDS-00WH is backed by a two-year warranty, reflecting its quality and reliability in smart indoor lighting applications.
