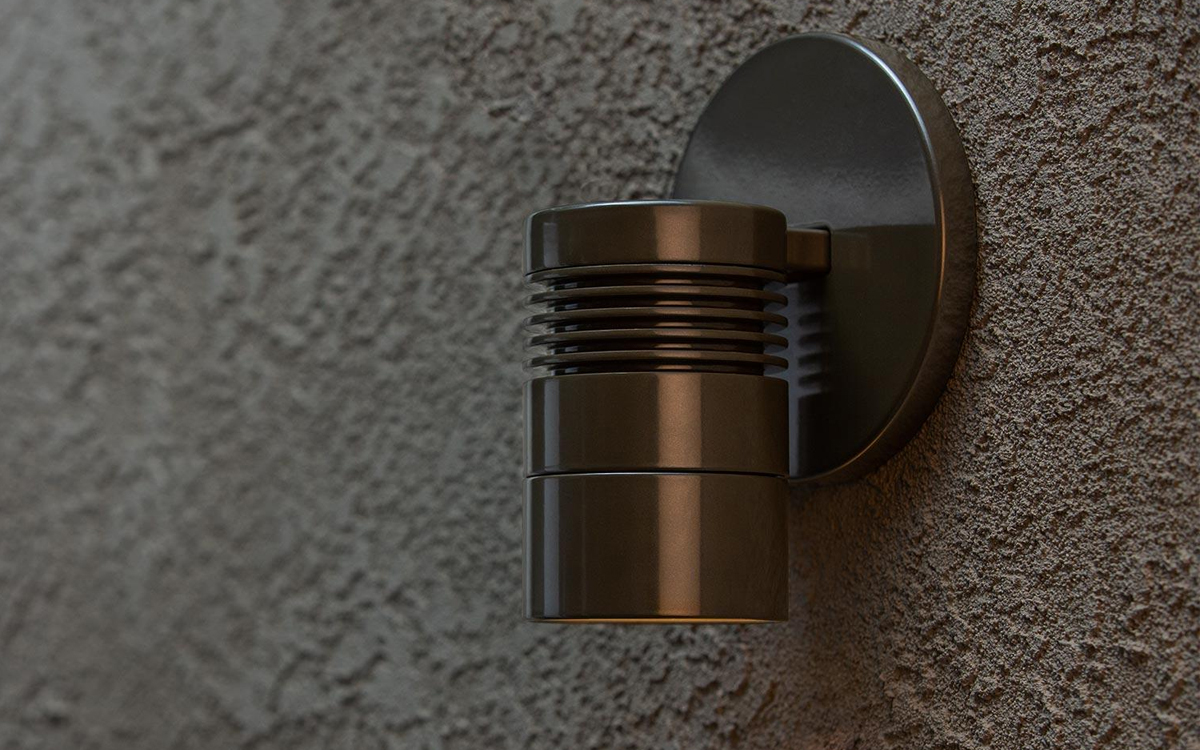

The SD wall-mount LED downlight features a simple, cylindrical drum design that complements a wide range of architectural and outdoor lighting applications. Available with 3, 6, or 9 integrated LEDs, this fixture also offers a ZDC option for enhanced color control. Constructed from durable die-cast A380 aluminum, the body benefits from a two-layer marine-grade anodization and powder coat finish, ensuring superior resistance to harsh weather conditions. The fixture is designed with tamper-resistant features for added security and durability.
Equipped with Cree integrated LEDs, the SD downlight offers reliable and efficient illumination. The LEDs incorporate MoistureBlock™ technology within the socket to prevent moisture from wicking into sealed areas, enhancing longevity and performance. The LED modules feature gold-plated connectors and conformal coating for maximum corrosion resistance, along with a proprietary onboard intelligent driver that regulates temperature via firmware to maximize LED lifespan. Rated to operate for an average of 55,000 hours, the LEDs are field upgradeable and replaceable, ensuring extended service life.
The SD downlight operates on a low input voltage of 10 to 15 volts AC or DC and requires a remote transformer, sold separately. It supports both phase and PWM dimming, and is compatible with Luxor® technology, enabling zoning and dimming control across up to 250 groups. The ZDC option further enhances control by allowing for zoning, dimming, and RGBW color adjustments, making it ideal for customizable lighting scenarios.
Optically, the fixture includes interchangeable polycarbonate color temperature adjustment lenses preinstalled with a warm 2700K filter, with options to swap in 3900K, 4500K, or 5200K lenses as needed. Beam angles are customizable as well, with preassembled optics offering 10°, 20°, 40°, or 60° distributions. The tempered glass lens is shock-resistant and designed to tolerate thermal expansion and stress, providing durability in demanding environments. Additional accessories such as color filters, spread lenses, and hex baffles are compatible with the fixture, using MR-16 sized components.
Installation is straightforward, with the SD downlight designed for downward lighting applications. It comes with a stainless steel mounting plate that fits both 1-gang and round junction boxes, and includes wood screws for surface mounting. The die-cast aluminum shroud provides effective glare control, ensuring comfortable and focused illumination. The fixture operates efficiently across a wide ambient temperature range from 0°F to 140°F (-17°C to 60°C), weighing approximately 2.1 lbs (1.0 kg).
Finished with a robust two-layer protection of sulfuric acid anodization and polyester TGIC powder coat, the SD downlight meets ASTM standards for outdoor weathering, making it well-suited for demanding outdoor environments. Its combination of durable materials, advanced LED technology, and flexible control options make it a versatile choice for architectural and landscape lighting projects requiring dependable, high-quality illumination.
