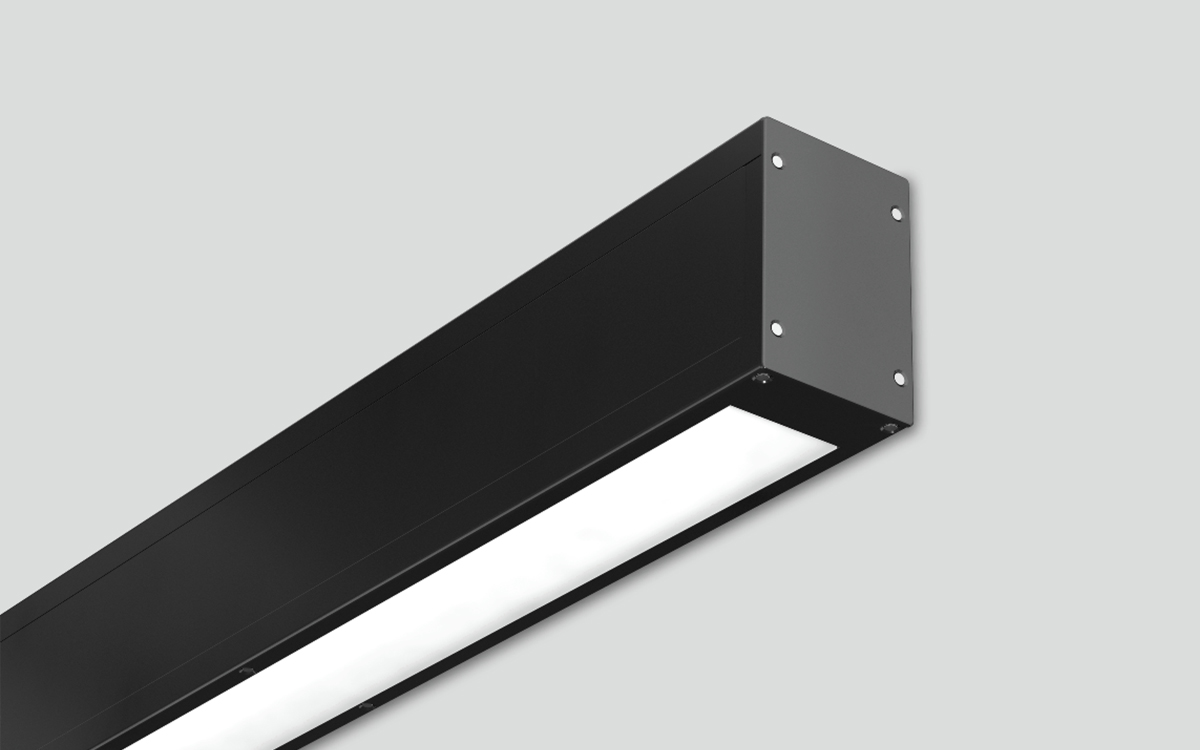

The Wet Beam DI Wall luminaire is a robust and high-performance lighting solution engineered for wet location applications. Designed specifically for exterior soffits, canopies, and similar exposed architectural environments in settings such as malls, hospitals, and institutional buildings, the Wet Beam DI Wall combines durability with advanced LED performance. It delivers versatile light distribution options—direct, indirect, or a combination of both—allowing specifiers to meet a variety of lighting design goals in challenging outdoor conditions.
Offering up to 1,000 lumens per foot for both direct and indirect outputs, the Wet Beam DI Wall achieves an efficacy of up to 98 lumens per watt, ensuring both energy efficiency and powerful illumination. The luminaire is available in standalone lengths from 2 to 8 feet and can be configured into system runs for larger installations. These modular runs utilize gasketed connectors between fixtures, supporting continuous rows and custom lengths up to 12 feet. Each unit is constructed with an extruded aluminum housing that contains up to 70% recycled content, ensuring responsible material use. The die-cast zinc end caps, molded and extruded elastomer gaskets, and tamper-proof TORX T15H fasteners complete a fully sealed enclosure suitable for wet environments.
The integrated LED system offers a choice of color temperatures—2700K, 3000K, 3500K, and 4000K—with excellent color consistency across fixtures, all within a 3-step MacAdam ellipse. Users can select between minimum 80 or 90 CRI options, depending on application needs. The LED modules are designed for longevity, with a minimum rated life of 50,000 hours at 85% lumen maintenance in 25°C ambient conditions, in compliance with IES LM-80 standards. A critical element of this performance is the effective thermal management provided by the aluminum housing, which acts as a heat sink to extend the life and reliability of the LED system.
The Wet Beam DI Wall is a powerful, adaptable, and resilient architectural lighting tool ideal for challenging environments where performance and protection against the elements are essential.
