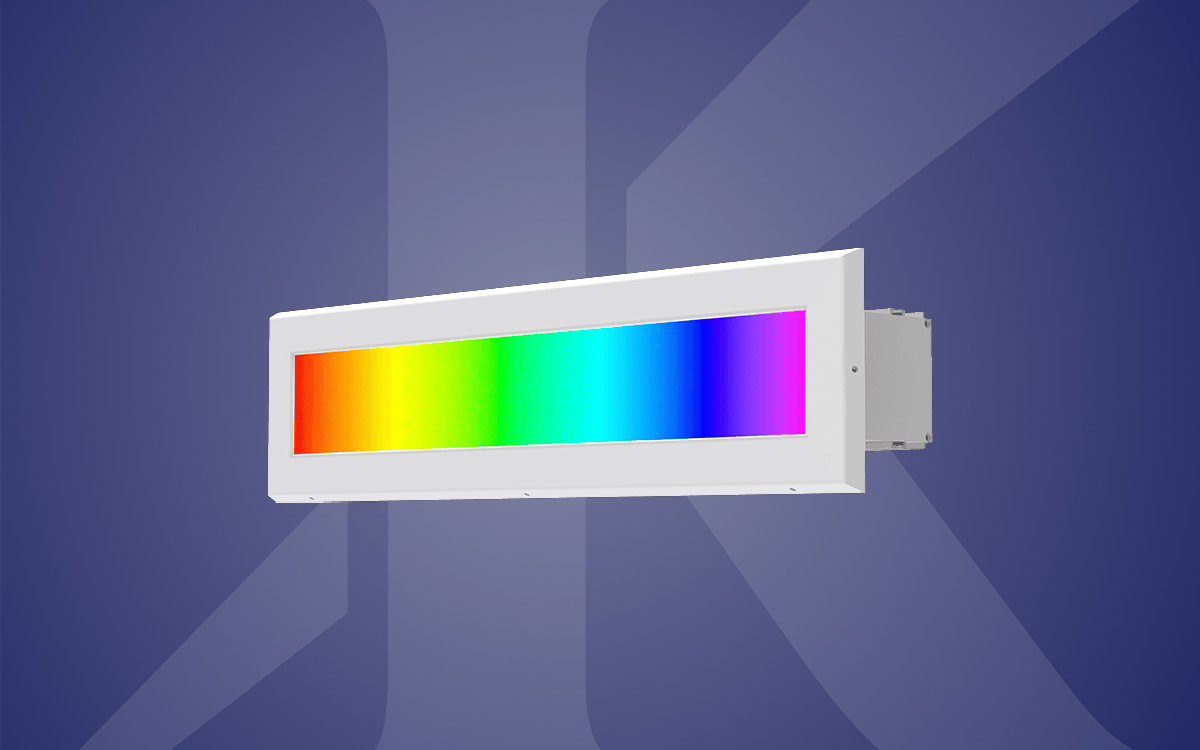

The RGBW behavioral wall light is a secure linear wall-mounted slot luminaire available in standard 2-foot and 4-foot lengths, purpose-built for environments that require safe dynamic color while maintaining strict ligature-resistant and vandal-resistant construction. Its application range includes behavioral health spaces, airports, education facilities, mass transit areas, and natatorium locations, where durability, controlled optical performance, and visual comfort are essential. The fixture supports covered ceiling exterior and interior installations and uses an LED RGBW light source with 80+ CRI, allowing a full dynamic color palette suitable for mood-setting, patient-centric color strategies, and secure visual enhancement where traditional color-changing products may not be appropriate.
This linear sconce/slot luminaire incorporates a 2-1/2" aperture and a 3-3/4" deep extruded aluminum housing engineered for shallow wall conditions while preserving impact resistance and secure operation. A ligature-resistant, smooth, single-piece aluminum frame surrounds a flat 0.22" polycarbonate lens, protected further by an anti-pixellation optical film that maintains uniform, visually comfortable RGBW output. The frame is fastened with tamperproof screws, with supplied tools—including a hex key and a FlexDrive bit—to support facility protocols requiring secure maintenance access. The luminaire meets IK10, IP66, ADA, Declare Listed, Level 2 Infection Control, BABAA, and vandal-resistant requirements, supporting installation in behavioral health and other high-security or high-traffic locations.
The RGBW behavioral wall light uses an internal LED driver rated for indoor and outdoor operation from -30°C to 60°C (-22°F to 140°F). DMX control governs four independent color channels—red, green, blue, and white—with 0.1% dimming capability, enabling precise color adjustment and smooth transitions suitable for therapeutic environments or architectural color effects. Integration with the Kirlin DMX wall panel (VNDDMXWP) provides user access to preloaded scene configurations and presets, with the option for factory-defined custom programming to match project-specific behavioral, experiential, or environmental lighting goals. The dynamic color system supports full spectrum expression through quad-chip RGBW LEDs, allowing flexible visual articulation while maintaining a safe optical solution for sensitive applications.
Installation supports indoor and outdoor wall conditions up to 1-1/8" thick, mounted using #6 sheet-rock fasteners supplied by others. The unit is Type IC and rated for direct contact with insulation. Required spacing between adjacent fixtures or between the fixture and a wall depends on the tool used during installation, with minimum clearances defined for both hex key and FlexDrive access. The luminaires are suitable for damp or dry locations under UL and C-UL listings. Overall, the RGBW behavioral wall light delivers a secure, ligature-resistant, vandal-resistant, color-adaptable slot lighting solution that supports controlled optical performance, DMX color lighting control, patient-centric dynamic color expression, and reliable operation in behavioral health, transportation, educational, and public-use environments.
