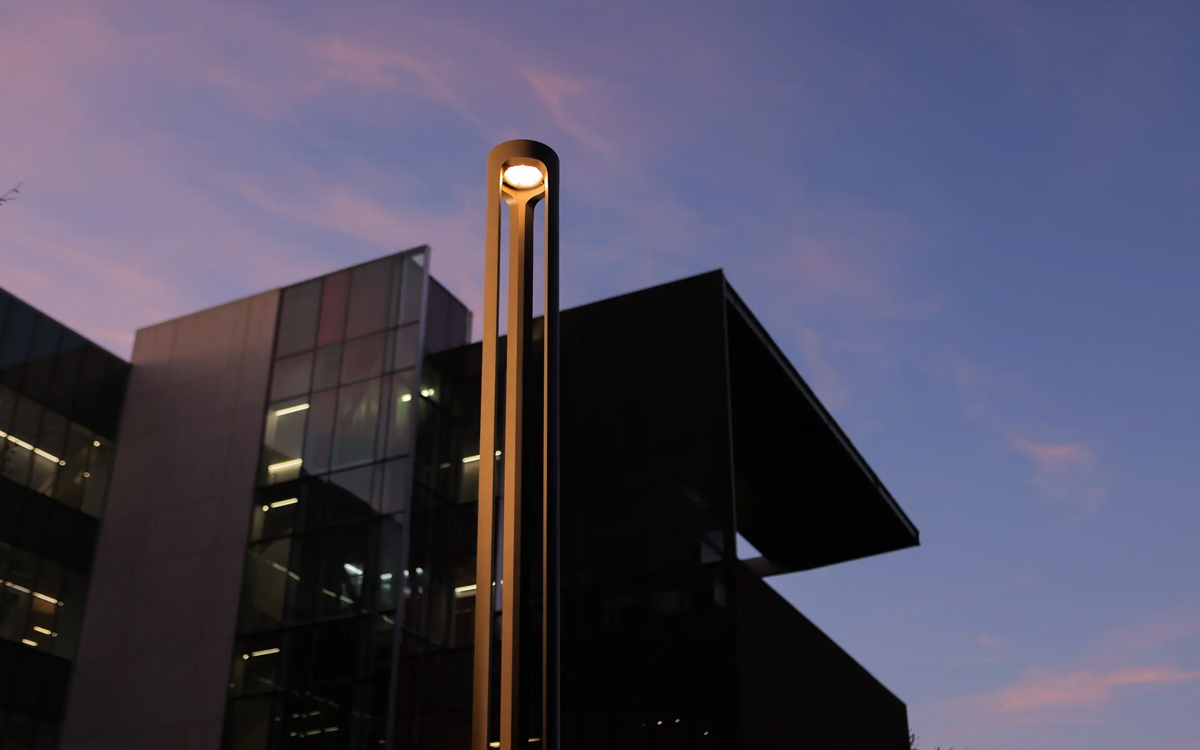

Outline Column Light reimagines the traditional light column by blending refined aesthetics with enhanced performance tailored for urban environments. Available in pedestrian-scale heights of 10 and 12 feet, these luminaires provide precise illumination while eliminating high-angle glare, thereby improving comfort, visual experience, and safety in public spaces. The design features a seamless transition between the luminaire and the ground plane, creating an elegant and cohesive appearance that suits streetscapes, campuses, parks, and public plazas. Outline acts not only as a high-performance lighting solution but also as a sculptural wayfinding element and architectural detail that beautifully defines outdoor spaces.
Constructed from cast and extruded aluminum, the Outline column light undergoes meticulous craftsmanship including precise welding, grinding, and finishing to achieve its sophisticated form and enduring beauty. This manufacturing process, performed by hand in Kalamazoo, Michigan, ensures crisp lines, smooth transitions, and a high-craft finish that balances robustness with modern elegance. The fixture includes a factory-sealed, replaceable machined aluminum LED cartridge equipped with UV-stable, impact-resistant diffused acrylic lenses. Magni-coated hardware enhances corrosion resistance and ease of maintenance. The assembly is rated IP66, suitable for harsh outdoor conditions.
Outline offers configurable lumen packages and distribution options, including Type III and V distributions, to enhance lighting precision across a variety of applications. The luminaire is equipped with a surge-protected electronic driver compatible with 120V to 277V and 50/60Hz, featuring 0-10V dimming and an optional ANSI C136.41 twist-lock receptacle as well as a GFCI outlet with an in-use cover. The replaceable LED cartridge features a machined aluminum heatsink and high-power LEDs mounted on RoHS-compliant circuit boards. Available color temperatures range from 2700K to 4000K with a minimum 80 CRI, providing high-quality light that meets or exceeds TM21 L70 standards for over 60,000 hours of operation.
Designed to be mounted at grade using galvanized steel anchor bolts, the Outline column light includes anchoring templates and hardware for ease of installation. It is Buy America Compliant, BABA Compliant, and International Dark-Sky Association approved, which means it minimizes light pollution while delivering optimal visual comfort. The fixture’s G-0 rating eliminates high-angle glare, making it ideal for enhancing safety and visual experience in urban public spaces.
Beyond functional lighting, Outline serves as a versatile design element capable of illuminating parks, plazas, greenways, streetscapes, pedestrian paths, entrances, and sculptural installations of various heights. Its pedestrian-scale output ranges from 800 to 2300 lumens, with additional pathlight options at 4 feet providing 700 to 1000 lumens. The luminaire supports multiple drive current options and includes customizable heights upon request, ensuring adaptability to diverse project needs. With a six-year warranty, Outline represents a durable, elegant, and performance-driven solution crafted with pride in Michigan for modern public space environments.
