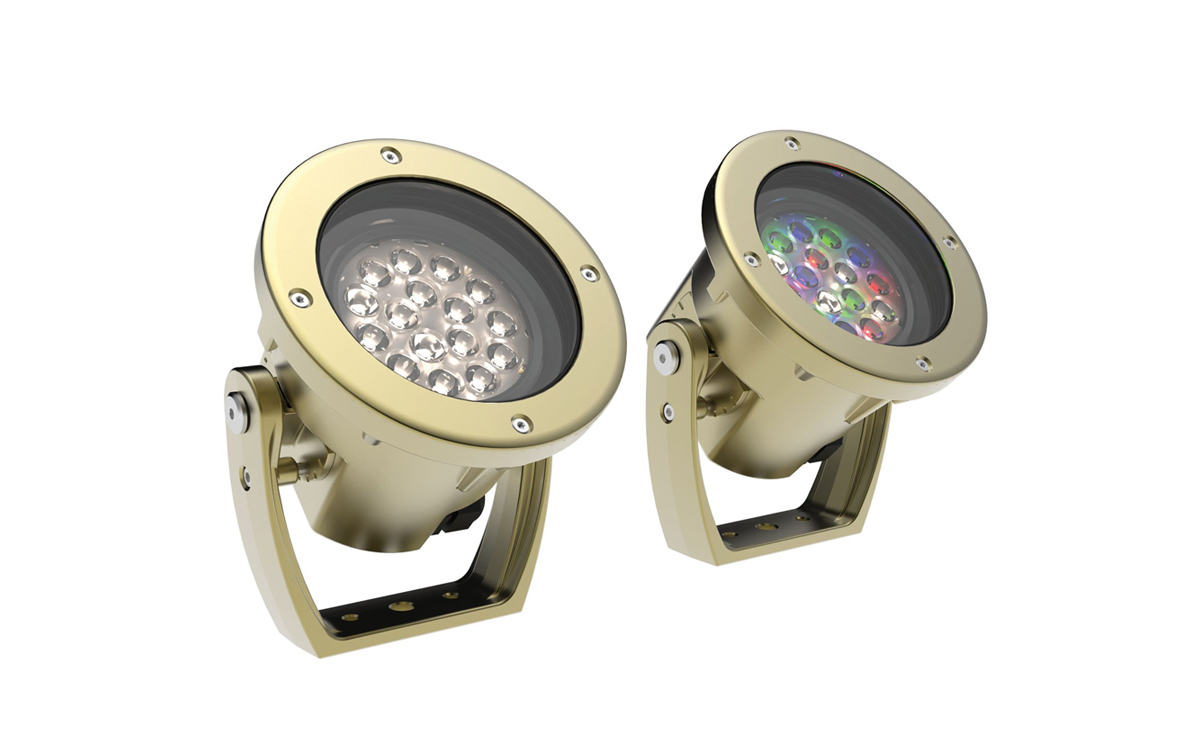

The Woda Brass WB3 (LS5330) is a premium pair of high-performance projectors designed for exceptional reliability across underwater, wet/dry, and dry applications. Engineered with precision and built from corrosion-resistant die-cast brass, the WB3 delivers both durability and elegance. With a luminous output reaching up to 2,600 lumens, these fixtures provide powerful and consistent illumination for architectural elements, sculptural features, and water installations, whether submerged or surface-mounted.
Offering remarkable versatility, the Woda WB3 supports both static white and dynamic color options, including RGBW configurations with a rich royal blue channel. Available static white color temperatures include 3,000K and 4,000K, producing up to 2,590 lumens with efficacy as high as 92 lm/W and peak intensity exceeding 46,000 candela. In RGBW mode (4,000K), the fixture delivers 880 lumens with precision color rendering and controlled output. Multiple beam angles and glare control accessories allow designers to tailor the lighting to specific visual and functional requirements.
Built for longevity and thermal stability, the WB3 integrates Lumascape’s CoolDrive™ onboard thermal management system, ensuring consistent performance and extending its rated lifespan beyond 179,000 hours (B10, L90, TM21 projected) at 35°C water temperature, whether operated in 15W or 29W modes. These luminaires are IP68 rated for permanent submersion up to 33 feet (10 meters) and IK8 impact rated, providing resilience in demanding environments. While both 15W and 29W variants are submersible, only the 15W version is certified for wet/dry and dry-only installations.
The fixture is powered by a low-voltage 30 VDC input and is compatible with advanced control protocols including DMX/RDM, Artnet, and 0–10V (sink or source). Flicker-free dimming is supported down to 0.1% with a 2 kHz PWM frequency. PowerSync-enabled models are shipped with a default RDM personality for smooth dimming, which can be reconfigured to match alternative lighting profiles or special functions via industry-standard DMX/RDM interfaces.
Installation is straightforward with a surface-mounted, multi-positional yoke bracket featuring either single- or double-hole fixing, allowing for precise aiming. The Woda WB3 combines performance, aesthetics, and flexibility—delivering a standout solution for high-end underwater and architectural lighting projects.
