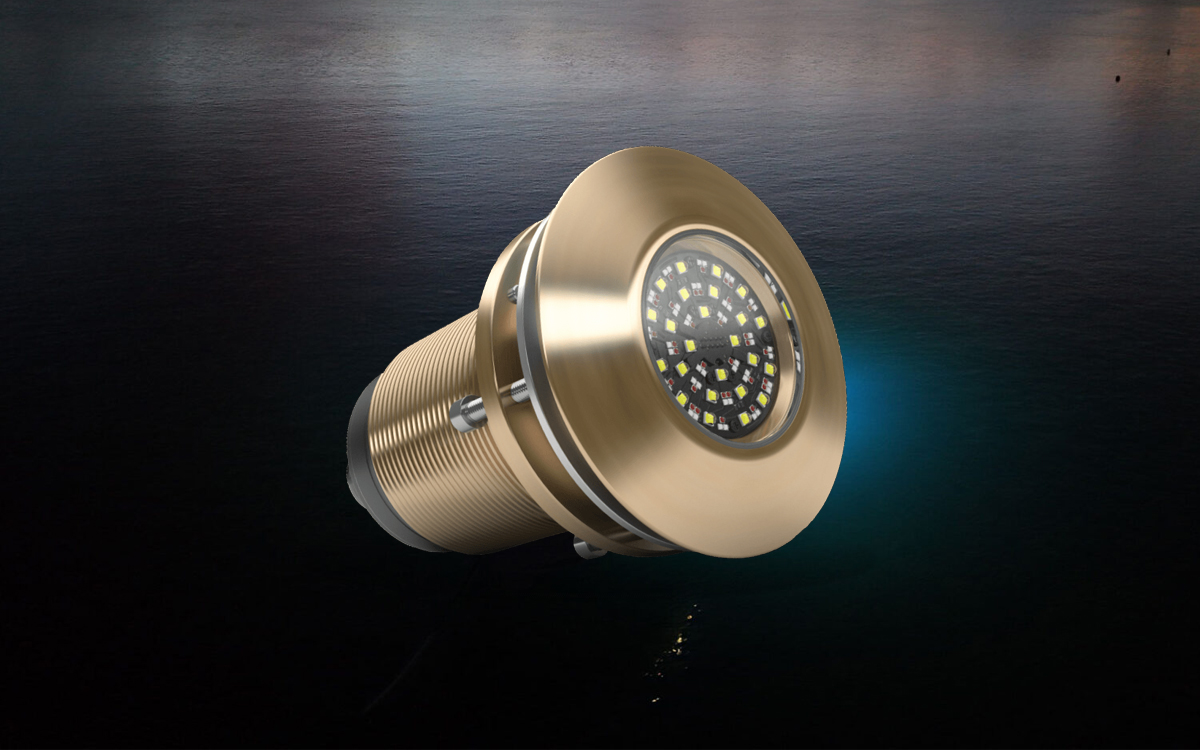

The Lumishore TIX804 is a cutting-edge underwater LED lighting solution designed to deliver exceptional performance and immersive visual effects. Emitting a powerful 12,000 verified fixture lumens and featuring an ultra-wide 110° beam angle, the TIX804 creates an impressive halo effect that bathes the waterline in rich, vibrant color. This model offers full EOS color-changing capabilities with RGBW output, allowing for dynamic lighting that can transform any vessel’s presence in the water.
Designed for maximum versatility, the TIX804 is suitable for transom, side, and bottom mounting. Its compact design integrates both the LED array and a multi-channel internal driver within the fixture, significantly simplifying installation and allowing for complete servicing from inside the hull. This makes it an ideal solution for both new builds and retrofit applications, especially in areas where exterior access is limited or inconvenient.
The TIX804’s advanced control system enables full customization and interaction. Users can manage colors, modes, and lighting effects directly from their onboard multifunction display (MFD) or the optional Lumishore Display. With features such as color cycle and sweep (both with adjustable speed), synchronized lighting, fixed and random strobe modes, and programmable scenes, the TIX804 offers an unparalleled level of control and creativity. It also includes brightness adjustment, customizable favorites, auto light discovery and setup, and even sound-to-light responsiveness for a fully immersive experience. Control options extend to Wi-Fi-enabled app support, offering intuitive lighting management directly from a smartphone or tablet.
Powered by 12/24V DC with an optional AC version available, the TIX804 draws a maximum current of 8.8A at 12V or 4.4A at 24V. The unit is built with a durable marine-grade aluminum bronze housing and utilizes a high-efficiency HICOB LED array comprising 36 white 10W LEDs, 36 green 3W LEDs, 36 blue 3W LEDs, and 48 red 3W LEDs. With a typical LED lifespan of over 50,000 hours, the TIX804 delivers long-term reliability, outstanding visual appeal, and sophisticated underwater lighting control—all in a sleek, integrated package engineered for the demands of marine environments.
