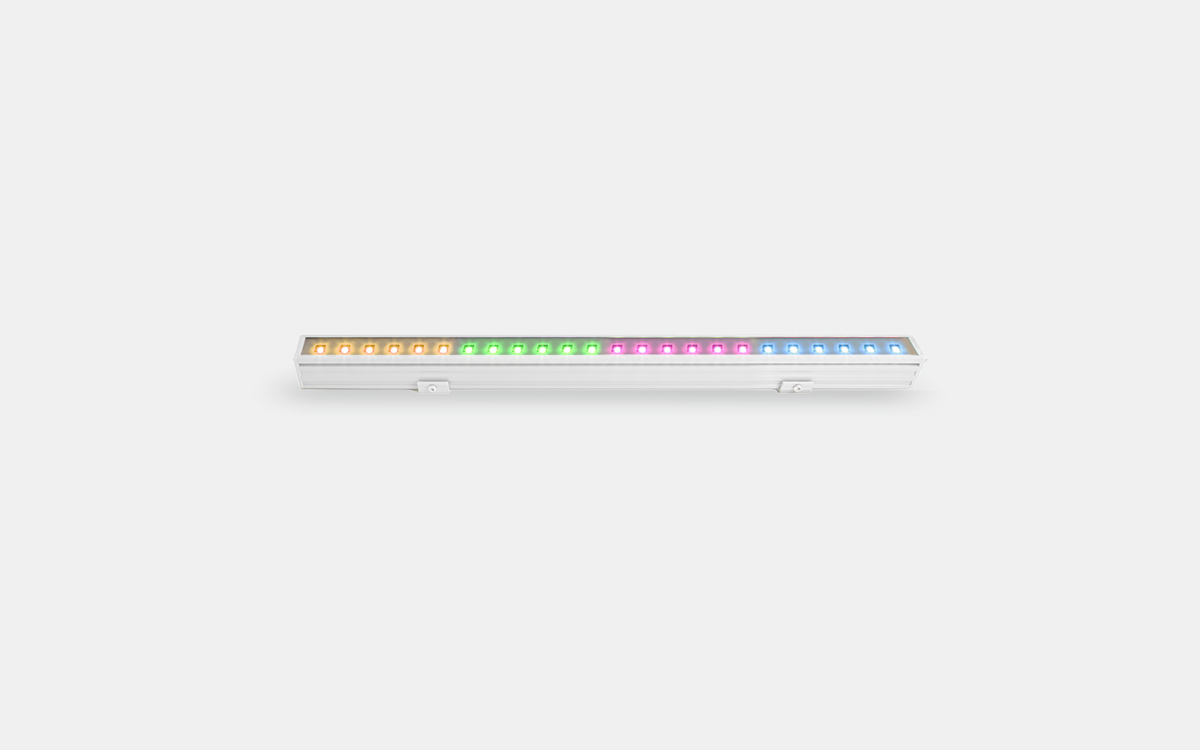

The GRAPH-I-PIX CLEAR series from GRIVEN offers a high-performance, ultra-slim direct-view lighting solution designed for large-scale architectural façades. Engineered for graphic visual reproduction, each model in the series—CLEAR 30, CLEAR 50, and CLEAR 100—is fitted with a transparent diffuser that enables vibrant pixel mapping capabilities and creative design freedom. These fixtures allow designers to render dynamic content, sculpt three-dimensional effects, and display abstract imagery with impactful visual clarity. With versatile configuration options and multiple mounting solutions, the GRAPH-I-PIX CLEAR line blends seamlessly into various architectural environments while delivering outstanding lighting performance.
The GRAPH-I-PIX CLEAR 30 series is available in RGB and RGBW (3000K or 4000K white) configurations. Measuring just 298 mm in length, it features one or two individually addressable pixels—each pixel comprising six high-brightness LEDs—and a wide 95° optical beam angle. Its compact size and lightweight build make it ideal for tight or minimalist installations, while maintaining uniform light output and crisp resolution up to 280 pixels per square meter. The RGB version delivers up to 123 lumens, while the RGBW version reaches 150 lumens. Each model runs on 24VDC via a separate IP67-rated transformer and consumes just 4–5 watts, ensuring efficiency alongside visual impact.
Expanding the design potential, the GRAPH-I-PIX CLEAR 50 series doubles the module length to 499 mm and offers RGB or RGBW configurations with options for 1, 2, or 4 individually addressable pixels. These fixtures maintain the same 95° optical beam and ultra-slim form factor, while providing higher lumen outputs—up to 185 lumens in RGB and 225 lumens in RGBW. With a luminance of ≥40000 cd/m² (RGB) or ≥48000 cd/m² (RGBW), this series excels in applications where bold color visuals and higher brightness levels are required across larger surfaces.
For the most expansive façade applications, the GRAPH-I-PIX CLEAR 100 series offers the longest module length at 998 mm and supports RGB and RGBW configurations with up to 8 addressable pixels per unit. With the same 95° beam angle and ultra-slim 28 mm width, these units are capable of generating vivid visual effects across wide architectural expanses. The RGB version delivers up to 370 lumens, while the RGBW variant reaches 450 lumens, with power consumption at 12W and 15W respectively. These models are ideal for high-resolution, full-scale pixel mapping projects where artistic expression and technical precision must coexist.
All GRAPH-I-PIX CLEAR models feature IP66-rated protection and IK08 impact resistance for reliable outdoor performance in challenging environments. Controlled via DMX with self-addressing capability, and powered through a 24VDC input using a remote 100–277VAC transformer, these fixtures offer streamlined installation and integration into sophisticated lighting systems. With remarkable visual flexibility, color fidelity, and environmental resilience, the GRAPH-I-PIX CLEAR series delivers a comprehensive solution for turning architectural façades into dynamic canvases of light.
