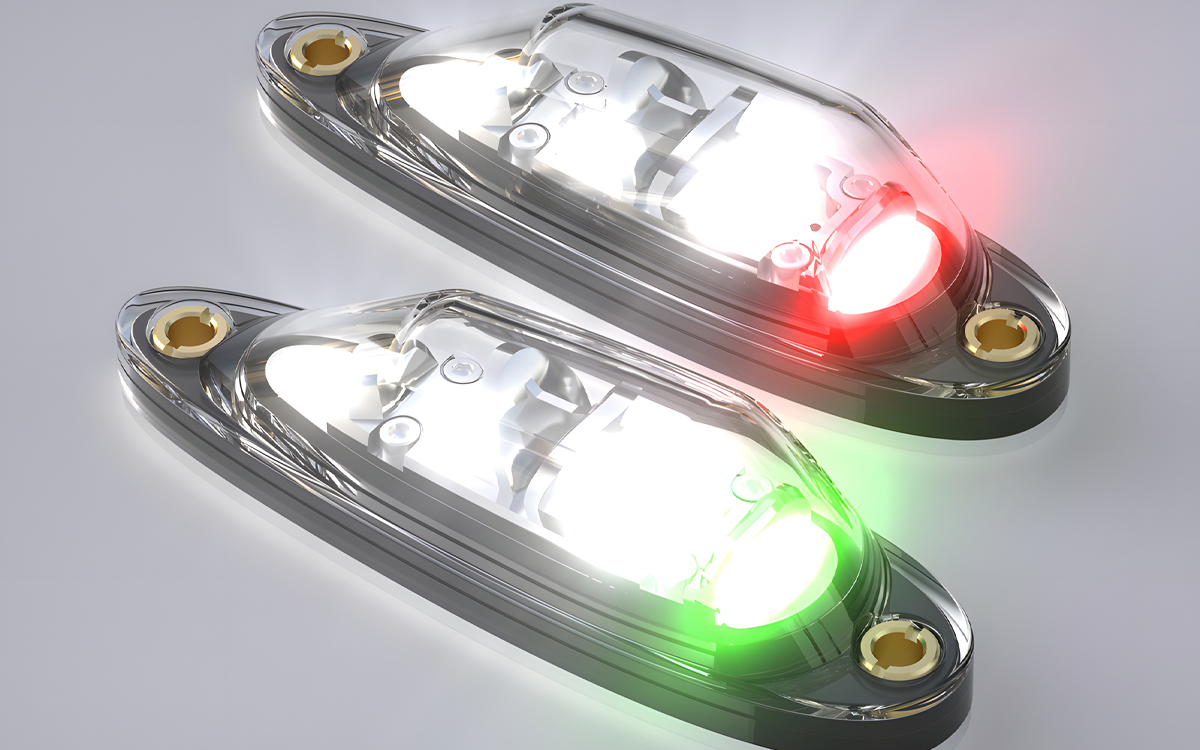

The DroneV NXT™ is a compact, high-performance wingtip navigation, strobe, and position light designed specifically for drones and UAVs. Recognized as the world’s smallest, lightest, and brightest 3-in-1 lighting solution for unmanned aerial vehicles, the DroneV NXT™ integrates cutting-edge micro-circuitry within an ultra-light, aerodynamically optimized housing. Leveraging Aveo’s proprietary technology, it offers exceptional functionality in an incredibly compact form, making it ideal for drone operators seeking superior visibility without adding significant weight or drag.
Engineered for compliance with EU drone regulations, the DroneV NXT™ provides enhanced safety and visibility while remaining easy to install and operate. However, it is important to note that this product is not approved for use on certified manned aircraft and is not a TSO (Technical Standard Order) certified light.
Physically, the DroneV NXT™ measures just 75.7 mm x 21.1 mm x 21.9 mm (2.98” x 0.83” x 0.86”) and weighs only 30 grams (1.06 oz), making it exceptionally lightweight for its category. It operates within a voltage range of 9 to 36 V DC. In navigation/position mode, it draws 0.13 A at 14V and 0.08 A at 28V, with corresponding power consumptions of 1.82 W and 2.24 W respectively. In strobe mode, the peak current increases to 0.74 A at 14V and 0.42 A at 28V, with peak power usage reaching 10.36 W and 11.76 W respectively.
For secure attachment, the DroneV NXT™ is compatible with M3x16 DIN 7984 or #6-32x5/8" low-profile socket head cap screws, requiring a torque of 1.0 Nm or 8.85 in-lb depending on the screw specification. The unit also includes essential protective features such as reverse polarity protection, transient voltage protection rated at 90V for 1 second, and over-voltage protection to ensure reliable operation in demanding conditions.
Built for rugged environments, the DroneV NXT™ is fully waterproof, dust-proof, and vibration-proof, making it an ideal choice for professional drone operators and commercial UAV applications that demand dependable performance and minimal size.
