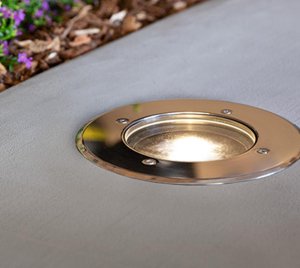

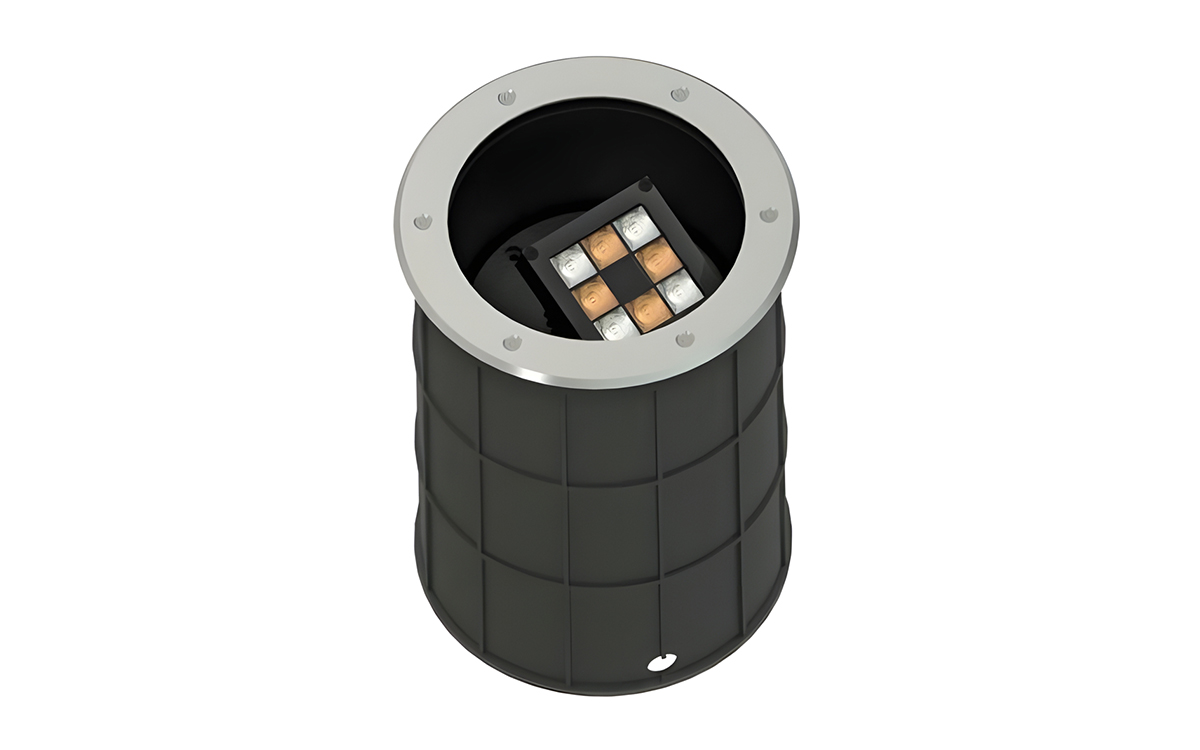

The Revo Inground Tunable White DMX lighting fixture is an ideal solution for outdoor installations requiring both durability and precise light control. Rated IP67, it is fully protected against dust and water, making it capable of withstanding harsh environmental conditions while delivering bright, reliable illumination exactly where it’s needed. The Tunable White LED technology allows for adjustable color temperatures, enabling users to create a wide range of lighting effects from warm ambience to functional daylight, perfect for versatile outdoor applications.
This fixture operates at 20 watts and features integrated electronics, eliminating the need for an external driver. Its high-grade 316 stainless steel front ring not only adds a polished aesthetic but also provides robust protection against corrosion and physical damage. Designed for flexibility, the Revo Inground Tunable White offers a large selection of light colors and beam angles, making it adaptable to various project requirements.
The fixture ensures perfect beam control through a solid ball joint, which allows the beam direction to be adjusted in multiple directions even after installation. To prevent condensation build-up inside the unit, it incorporates a ventilation gland with a Gore-Tex membrane, ensuring long-term reliability. Its sustainable and future-proof design means all parts are easily interchangeable, ensuring the fixture remains up-to-date and serviceable over time.
With over 200 different configurations available, the Revo Inground Tunable White can be customized quickly and easily on the manufacturer’s website. Installation is straightforward, featuring a 5-core DMX combi cable with an included gel sleeve for a waterproof connection, simplifying setup and reducing downtime.
Constructed from a combination of die-cast aluminum with an anti-corrosion black housing, marine-grade 316 stainless steel mounting ring, and ABS plastic corrosion-resistant components, this fixture weighs 6950 grams. It requires a mounting hole of 25.5 cm and an installation depth of 35.5 cm, withstanding pressure up to 15 kg/cm². The ambient operating temperature ranges from -10°C to 40°C. Optics options include beam angles of 8°, 12°, 30°, 61°, 80°, and 12x46°. The high-power LEDs provide a CRI greater than 80, with color temperature ranges available from 1800K to 3000K, 1800K to 4000K, or 2700K to 5000K.
Operating on a power supply range of 200 to 277 VAC, the fixture includes an internal driver and supports DMX512 dimming control. It comes with a 200 cm cable with an open end for connection. The fixture holds an IK10 impact resistance rating, IP67 ingress protection, and falls under protection class 3, making it a robust, reliable choice for demanding outdoor lighting projects.
