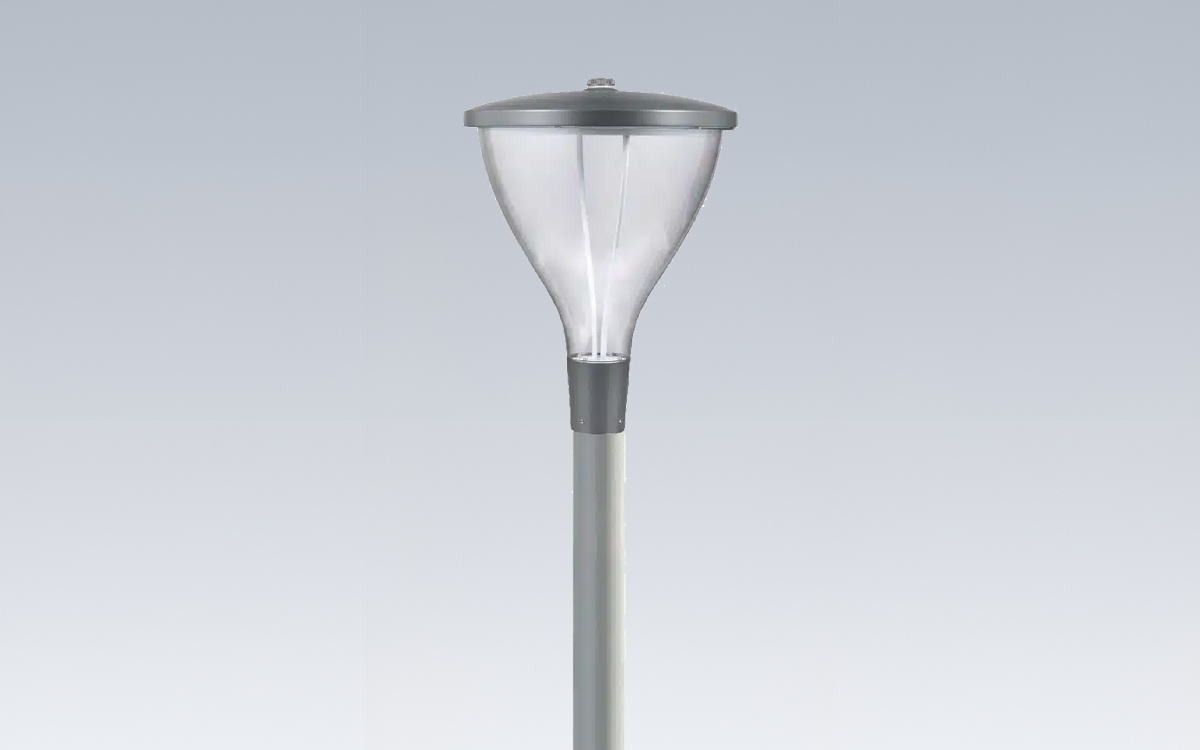

The ZG-1088 post top light showcases a classic round lantern-style design with an open transparent polycarbonate cover, specifically crafted to reduce shadows caused by the lamp arm while enhancing light distribution. This thoughtfully engineered optical design ensures uniform illumination across streets, sidewalks, parks, and other outdoor public spaces. Combining traditional aesthetics with modern LED technology, the fixture delivers both visual appeal and functional performance suitable for a wide range of urban and residential environments.
High-quality LEDs paired with reliable Inventronics LED power supplies enable luminaire efficacy of up to 150 lumens per watt, providing bright, consistent lighting while maintaining long-term operational stability. The series is compatible with multiple dimming and control options, including DALI, 0–10V, and timer-based dimming, allowing precise regulation of light output to match specific application requirements and optimize energy usage. For advanced outdoor lighting management, intelligent control systems such as LoRa and Zigbee can also be integrated, enabling smart networked lighting solutions for streets, parks, and public areas.
The ZG-1088 series offers a versatile range of power options, including 40W, 60W, 80W, and 100W, supporting different site and roadway conditions. Its full die-cast aluminum housing (ADC12) ensures durability and excellent heat dissipation, while the IP66 and IK08 ratings provide protection against dust, water, and mechanical impact. Both Class I and Class II electrical configurations are available to accommodate diverse installation environments. The fixture allows for multiple beam angle options—including Type I, II, III, V, or custom distributions—ensuring even illumination tailored to the specific layout of streets, walkways, and parks.
Serviceability and safety are key features of the ZG-1088 post top light. The driver and surge protection device (SPD) are easily removable for maintenance or replacement, simplifying long-term operation. Standard surge protection includes 6 kV differential mode and 10 kV common mode, with higher surge protection available on request. Additional specifications include an input voltage range of 100–240/277 VAC at 50/60 Hz, a power factor exceeding 0.95, and a five-year warranty. The luminaire meets multiple international certifications, including CE, RoHS, IP66, IK10, LM80, TM-21, and IEC62471, affirming its compliance with global safety, performance, and reliability standards.
