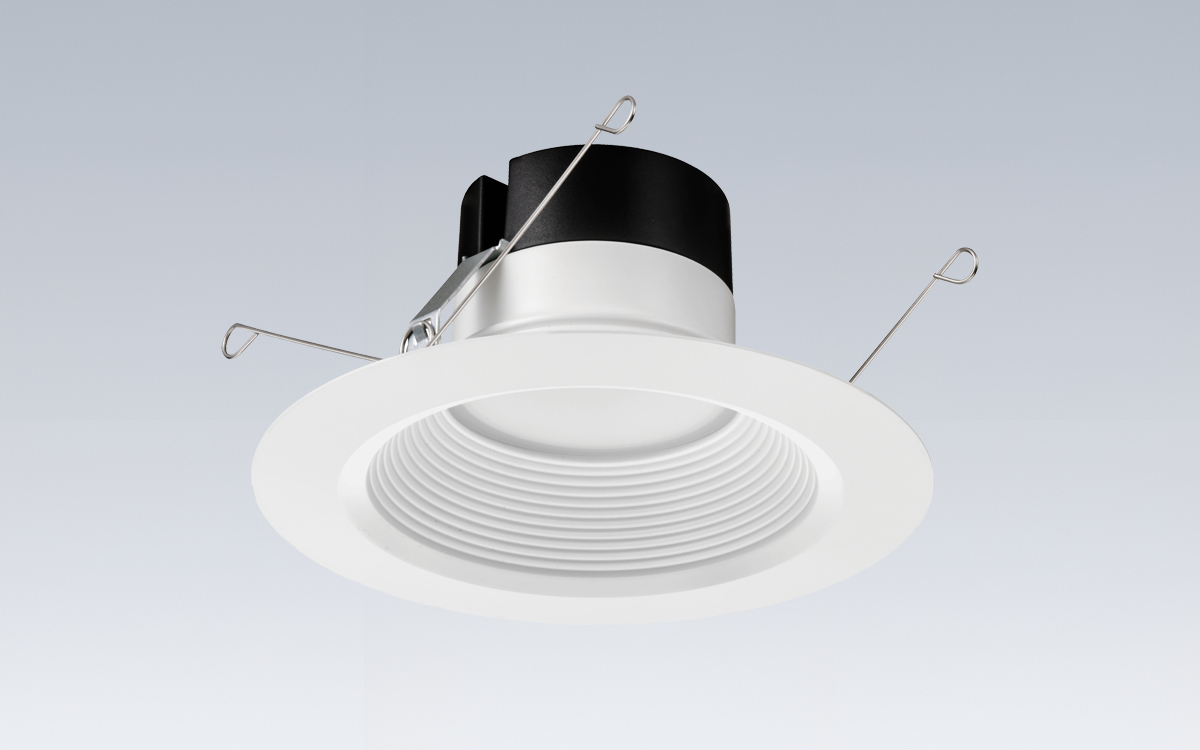

The E Series Switchable White LED Trim Kits introduce a versatile 5-in-1 lighting solution that adapts seamlessly to various residential and light commercial applications. Each trim kit includes an integrated switch located directly on the fixture, allowing users to select from five color temperature options—2700K, 3000K, 3500K, 4000K, and 5000K—ranging from warm white to daylight. This flexibility ensures ideal ambient conditions for every space and preference, whether in living areas, kitchens, bathrooms, or workspaces. Available in both 4-inch and 5/6-inch sizes, the E Series accommodates retrofitting from below the ceiling, making upgrades simple and efficient. For new construction applications, the trims can also be paired with Juno® Quick Connect (QC) Series recessed housings, creating a cohesive and professional installation solution.
The E Series offers two distinct aesthetic trim styles—smooth or baffle—along with interchangeable color finish inserts available in matte black, brushed nickel, and oil-rubbed bronze. These designer options make it easy to match any décor while maintaining a refined, architectural ceiling appearance. Constructed from durable aluminum, each trim includes a deeply regressed reflector that reduces glare while evenly directing light through a pressed-in diffused lens. This optical system ensures uniform aperture luminance and smooth light distribution for comfortable, general ambient lighting.
With lumen output options of 700, 900, and 1200 lumens, the E Series LED Trim Kits deliver reliable performance for diverse lighting needs. The LED light engine is integrated into the trim, simplifying installation while offering superior thermal management for longevity. The LEDs maintain a minimum of 70% of their initial light output for up to 50,000 hours and deliver 90+ CRI for accurate, high-quality color rendering. The trim kits operate at 120 volts AC, 60Hz, and are compatible with most standard dimmers, including incandescent, magnetic low voltage, and electronic low voltage types. This dimmable capability provides precise control over brightness, enhancing comfort and energy use flexibility.
Electrical connections are straightforward thanks to the quick connect plug, pre-installed for use with Juno quick connect housings. Each trim also ships with a medium base socket adapter whip for installation into standard 5-inch or 6-inch recessed incandescent housings. Adjustable torsion springs allow secure and adaptable fitting into a wide variety of can sizes, including both standard and shallow housings. The fixture’s all-in-one construction eliminates the need for separate components, ensuring an efficient installation process for both retrofit and new construction applications.
The E Series LED Trim Kits are suitable for wet locations, making them ideal for bathrooms, showers, and covered outdoor areas. They are Air-Loc certified in accordance with ASTM E283-2004 standards, effectively preventing airflow leakage between conditioned and unconditioned spaces. Additionally, the trims are CSA certified to U.S. and Canadian safety standards, NOM certified, and ENERGY STAR® rated for efficiency and performance. Compliance with California Title 24 Part 6 and T20 high efficacy LED light source requirements ensures these luminaires meet rigorous energy and performance standards.
For added customization, designer color finish trim inserts are available separately. These accessory rings attach permanently to the 65BE or 65SE trim kits, providing an elegant finish in either baffle or smooth styles. Available color options—black, brushed nickel, and oil-rubbed bronze—enhance the fixture’s visual appeal and coordination with interior materials and finishes.
Overall, the E Series Switchable White LED Trim Kits combine adaptability, performance, and aesthetic refinement. Their switchable white technology, easy retrofit installation, and compatibility with both existing and new construction housings make them a versatile choice for homeowners, designers, and contractors seeking a modern, reliable, and visually balanced lighting solution.
