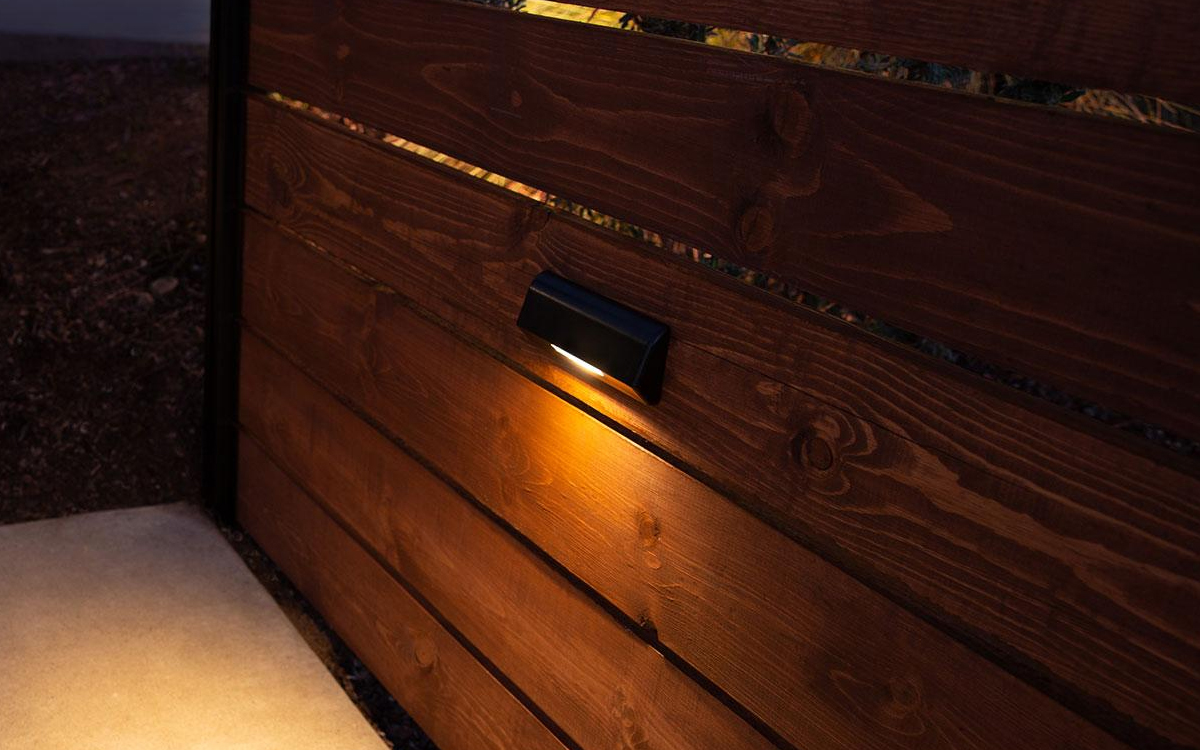

The SF Surface-Mounted Wall Light offers a sleek and modern lighting solution that simplifies the installation of wall and step lights. Designed with a streamlined profile, this fixture is available in either a single LED or a ZDC (Zoning, Dimming, and Color) configuration. Its integrated LEDs and specialized optics project light at a precise 75º angle, producing elegant wall- and ground-washing effects that enhance architectural and landscape features.
With only 1.0 inch (25 mm) of exposed depth and an overall height of 2.5 inches (64 mm), the SF fits perfectly into tight spaces and modern riser designs. Its mounting system includes clear guidelines for precise fixture positioning and ensures a clean installation with no visible hardware, contributing to its contemporary, angled aesthetic. Fully potted and rated IP66/IP67, the SF is well-suited for a variety of low-profile outdoor applications, delivering durability and protection against harsh environments.
Constructed from die-cast A380 aluminum, the SF features a robust body complemented by stainless steel setscrews and a mounting bracket for secure surface installation. The socket incorporates MoistureBlock™ technology, which prevents moisture from wicking into sealed areas, enhancing longevity and reliability. The integrated Cree® LED module includes gold-plated connectors with a conformal coating that maximizes corrosion resistance and ensures consistent performance. An onboard intelligent driver with firmware-controlled temperature regulation optimizes LED lifespan, with LEDs rated for up to 50,000 hours and field upgradeable for easy maintenance.
The fixture is powered by 10 to 15 VAC/VDC at 50/60 Hz and requires a remote transformer, sold separately. The optical system uses color temperature options defined by part numbers and features beam angles calculated following the LM-79 standard for solid-state lighting luminaires. A durable polycarbonate lens offers excellent shock resistance and withstands thermal expansion and stress, while tamper-resistant stainless steel fasteners ensure security in outdoor installations. The SF’s finish combines a two-layer protection system of sulfuric acid anodization and a polyester TGIC powder coat, providing superior weather resistance that meets ASTM standards.
The SF is designed to operate within a temperature range from 0°F to 140°F (-18°C to 60°C) and weighs approximately 1.1 pounds (0.5 kg). Control options include Luxor® Technology for zoning and dimming, capable of managing up to 250 fixture groups with fine 1% increment dimming. For models with RGBW LEDs, the ZDC option enables color control with access to 30,000 colors. Users can select zoning and dimming (ZD) or zoning, dimming, and color (ZDC) functionality based on their lighting needs. The fixture is also compliant with international standards IEC 60598-1 and IEC 60598-2-1 when selecting the “e” version.
Sustainability is a key focus in the design and manufacturing of the SF Surface-Mounted Wall Light. Where possible, recycled materials are utilized without compromising performance. This commitment ensures the product delivers high-quality lighting with optimal energy efficiency, extended lifespan, and robust durability. The SF is intended for surface-mounted installations in a down-lighting position, providing an elegant and reliable solution for modern outdoor lighting projects.
