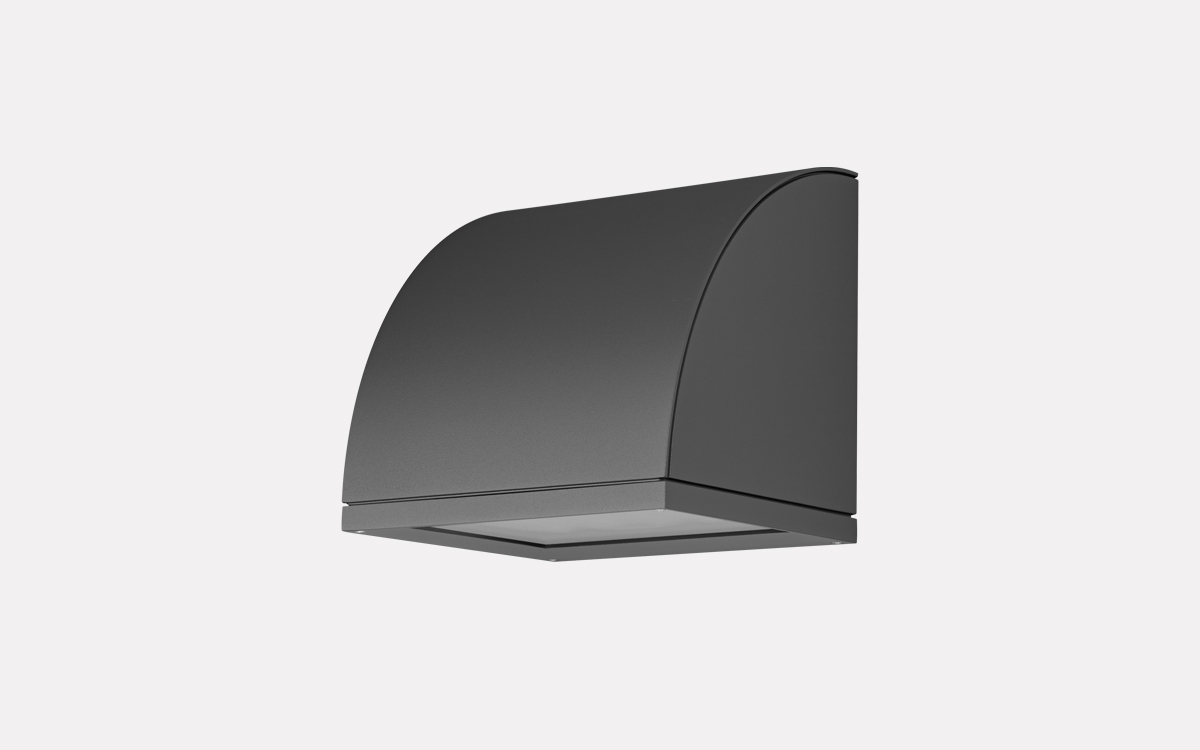

The OLV340 LED is a surface-mounted wall luminaire designed for flexible installation, allowing it to be mounted either upwards or downwards. It features a robust marine-grade die-cast aluminium alloy body, ensuring durability and resistance in harsh environments. The fixture meets IP65 ingress protection and IK07 impact resistance standards, making it suitable for demanding outdoor applications. Its corrosion resistance is enhanced by a 5CE superior corrosion protection system, including PCS polymer-coated stainless steel hardware. The silicone CCG® controlled compression gasket and safety glass lens further contribute to its reliability and longevity.
Equipped with an integral EC electronic converter, the OLV340 LED utilizes CAD-optimized optics to deliver superior illumination and effective glare control. The luminaire incorporates the OLC® One LED Concept and comes factory-installed with an LED circuit board, ensuring high performance from the moment of installation. Customers can specify optional interfaces such as 1-10V or DALI dimming controls at the time of ordering, as well as an optional warm 2200 K color temperature version.
The luminaire is available in a variety of colour finishes, including RAL9004 Signal black, RAL9006 White aluminium, RAL9007 Grey aluminium, RAL7016 Anthracite grey, and RAL9016 Traffic white. It offers two cable entries to facilitate installation and provides light distributions in symmetric medium beam [M] and symmetric very narrow beam with sharp cut-off [EES]. The power supply operates at 220-240V / 50-60 Hz, with an optional surge protection of 6/6 kV (SP10). Standard colour temperature options include 2700 K, 3000 K, and 4000 K, catering to diverse lighting requirements.
