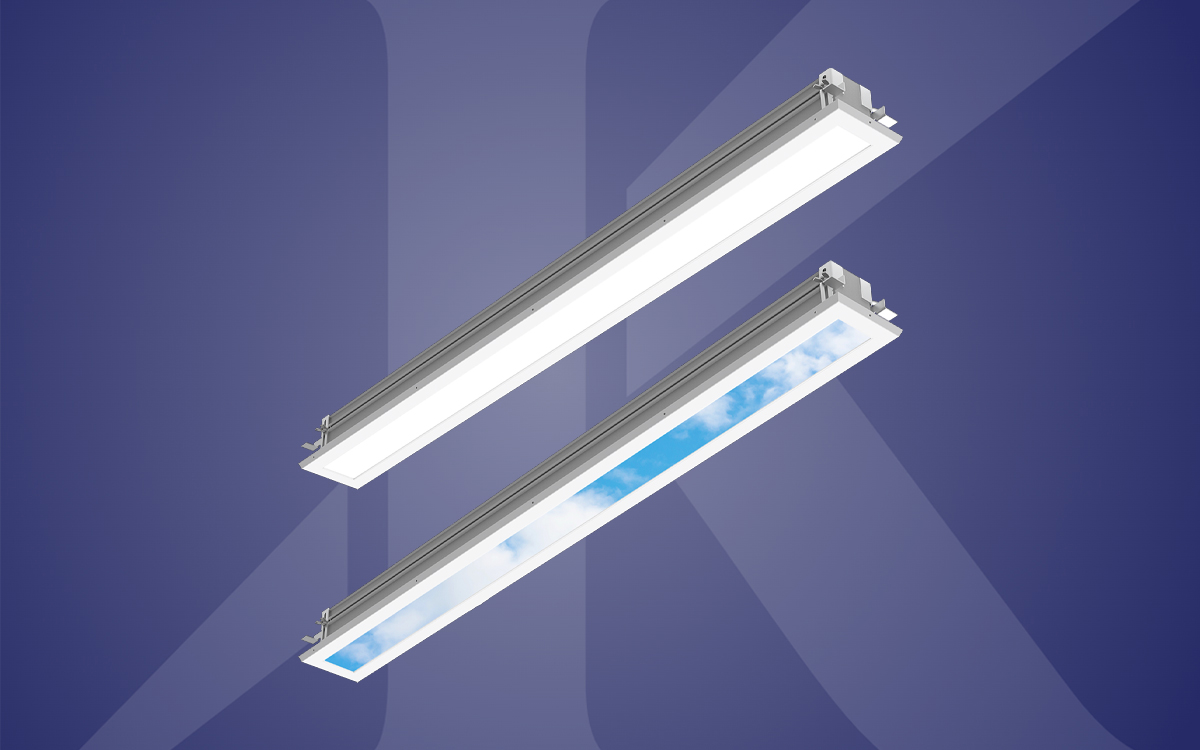

The static and tunable white recessed linear LED slot light is a secure, ligature-resistant solution engineered for demanding environments where durability, visual comfort, and safety are equally important. Offered in standard lengths from 2 to 6 feet and delivering up to 1200 lumens per foot, the fixture provides high-output performance with 90+ CRI as standard and dimming to 1.0%. It supports both static white and tunable white LED sources, with color temperatures ranging from 2700K to 6500K, including dedicated 3000K, 3500K, and 4000K options. Designed as a 2.5-inch recessed linear slot, it features a flat lens, a ligature-resistant trim, and a shallow extruded aluminum housing that maintains a secure installation in behavioral health environments, transportation hubs, educational facilities, mass transit systems, airports, and any location requiring resilient recessed slot lighting.
Engineered for both interior and covered exterior ceilings, the fixture meets a wide array of performance and safety standards, including Build America, Buy America (BABAA), Declare Listed, IK10 impact resistance, IP66 ingress protection, Level 2 Infection Control, and vandal-resistant construction. It is LM-80 qualified and LM-79 certified, with a rated life of 60,000 hours for static white and 50,000 hours for tunable white at L70. The linear slot design supports lumen packages of 500, 750, 1000, and 1200 lumens per foot with wattage options from 5.5 to 16.2 watts per foot, operating on universal 120–277V input. The fixture’s optical system includes anti-pixellation optical film above the polycarbonate lens to ensure smooth, uniform light distribution without hotspots, and a flat vandal-resistant lens assembly secured by discreet tamper-proof screws placed along the frame edge. The smooth, single-piece aluminum frame enhances its ligature-resistant profile while maintaining an aesthetically clean appearance.
Lighting control compatibility includes 0–10V dimming to 1% as standard, with available control options such as DALI and Lutron Athena for advanced, integrated white-tuning or intensity adjustment needs. Both static and tunable white configurations provide reliable operation across a wide temperature range—from –30°C to 60°C (–22°F to 140°F)—making the luminaire suitable for indoor and outdoor covered applications. Installation is designed for new construction, securely mounting to hard ceilings up to 1⅛ inches thick using #6 sheet-rock fasteners (supplied by others). Minimum spacing requirements vary depending on the tool used: 1.75 inches between fixtures or between fixture and wall when using the supplied hex key, and 6.5 inches between fixtures or 6.0 inches between fixture and wall when using the FlexDrive bit. Tamperproof tools are included with each order—one hex key per ten fixtures and one FlexDrive bit per order—with additional FlexDrive bits available separately.
An optional acrylic scenic panel can be positioned above the polycarbonate lens, offering more than 100 image selections from Kirlin or a customer-provided design. This enables unique environmental enhancements, especially in behavioral health applications, and can be previewed using Kirlin’s Scenic Configurator tool. The unit is UL and C-UL listed for damp or dry locations within covered ceilings, Type IC rated for direct contact with insulation, and carries a vandal-resistant trim and lens assembly for robust, long-term performance in secure, high-traffic, or safety-critical spaces.
