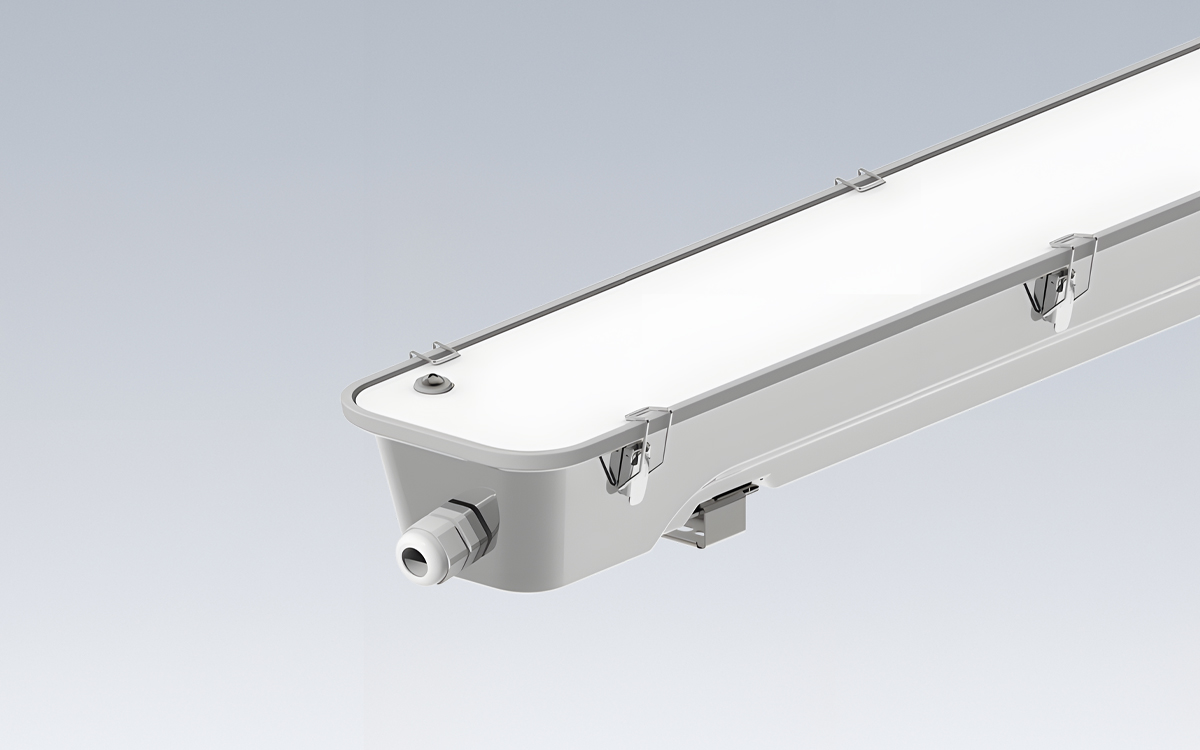

The tempLED RayProof Pro V2 multipurpose LED tri-proof light represents a robust and dependable lighting solution for challenging industrial and commercial environments. Built for durability and long-term reliability, this fixture combines a rugged stainless-steel housing with a toughened ESG glass diffuser, achieving an exceptional impact resistance rating of IK10. Available in five power levels ranging from 25 to 75 watts and three construction lengths, the RayProof Pro V2 accommodates a wide spectrum of applications across logistics centers, workshops, processing plants, and other demanding environments. Its frosted diffuser ensures uniform light distribution across a wide 120-degree beam angle, making it suitable for both task and ambient lighting needs. The luminaire also integrates DALI-2 dimming functionality and five-pole through-wiring, ensuring easy installation and control flexibility. A five-year full warranty and ten-year spare parts warranty further reinforce its value as a secure and long-term investment.
This LED moisture-proof luminaire embodies a fully modular design, allowing easy replacement of key components for simplified maintenance and extended product life. The weatherproof, dustproof, and impact-resistant housing is optimized for use in high-temperature environments up to +60°C, maintaining stable performance even under thermal stress. Its stainless-steel construction resists corrosion and mechanical damage, while a circumferential sealing system prevents moisture and dust ingress. The integrated fall protection and vandal-proof quick-release system enhance safety and reliability in both industrial and public applications. The impact-resistant satin-coated safety glass diffuser ensures glare-free light distribution and sustained optical clarity, while the optional constant lumen output (CLO) function maintains consistent brightness throughout the fixture’s lifetime.
The RayProof Pro V2 achieves an initial luminous flux range between 4,000 and 12,750 lumens, with system efficiency reaching up to 180 lumens per watt when equipped with the optional clear glass diffuser. Its color quality ensures accurate visual performance with a color rendering index (CRI) above 80 and a color consistency of less than 5 SDCM, available in 4,000 K or 5,000 K color temperatures. The symmetrical 120-degree beam angle enables broad, uniform light distribution suitable for general area lighting. Compliant with IEC/TR 62778 photobiological safety standards, the fixture ensures visual comfort and safety in demanding environments.
Electrically, the RayProof Pro V2 operates from a 220–240 V AC power supply at 50/60 Hz, with system power between 25 and 75 watts and a power factor greater than 0.90. The integrated power supply includes protection against overvoltage, overheating, and excessive harmonic distortion (THD < 20%), ensuring reliable operation in industrial networks. Temperature monitoring and a T6 ATEX temperature classification safeguard performance in warm or enclosed conditions, while a maximum Tc temperature of +75°C demonstrates robust thermal management.
In terms of energy classification, versions achieving up to 160 lm/W correspond to class C, while those from 170 lm/W and higher are rated class B. Mounting options include standard wall or ceiling installation, as well as optional pendant mounting to accommodate various architectural layouts. Control flexibility is ensured through integrated DALI-2 dimming, with optional CLO for maintaining consistent light output over time. Additional modules include emergency lighting capability and motion detection via PIR sensors on DALI-compatible versions.
The housing system of the RayProof Pro V2 maintains ingress protection of IP65 and impact resistance of IK10, confirming its suitability for harsh industrial conditions. Built from stainless steel 304, the enclosure resists corrosion and chemical exposure, while the satin-coated safety glass diffuser diffuses light evenly and withstands impact. The luminaire color matches the natural finish of stainless steel, maintaining a clean, professional aesthetic. It supports five-pole through-wiring via dual terminal blocks for efficient daisy-chaining, and cable entry is secured by dual cable glands to preserve IP integrity.
Certified to ENEC standards and conforming to CE, RoHS, and DIN 10500 (HACCP | IFS) requirements, the RayProof Pro V2 meets the strict demands of industrial and hygienic environments such as food processing or logistics. With a rated lifespan of approximately 100,000 hours (L70B10C1) and 50,000 hours at L90B10C1, it ensures reliable, long-term performance. Each luminaire is supplied with wall and ceiling mounting clips for immediate installation, backed by a five-year full warranty and a ten-year spare parts guarantee. The result is a versatile, durable, and maintenance-friendly LED triproof light built to withstand the toughest operating conditions while maintaining exceptional lighting quality and system reliability.
