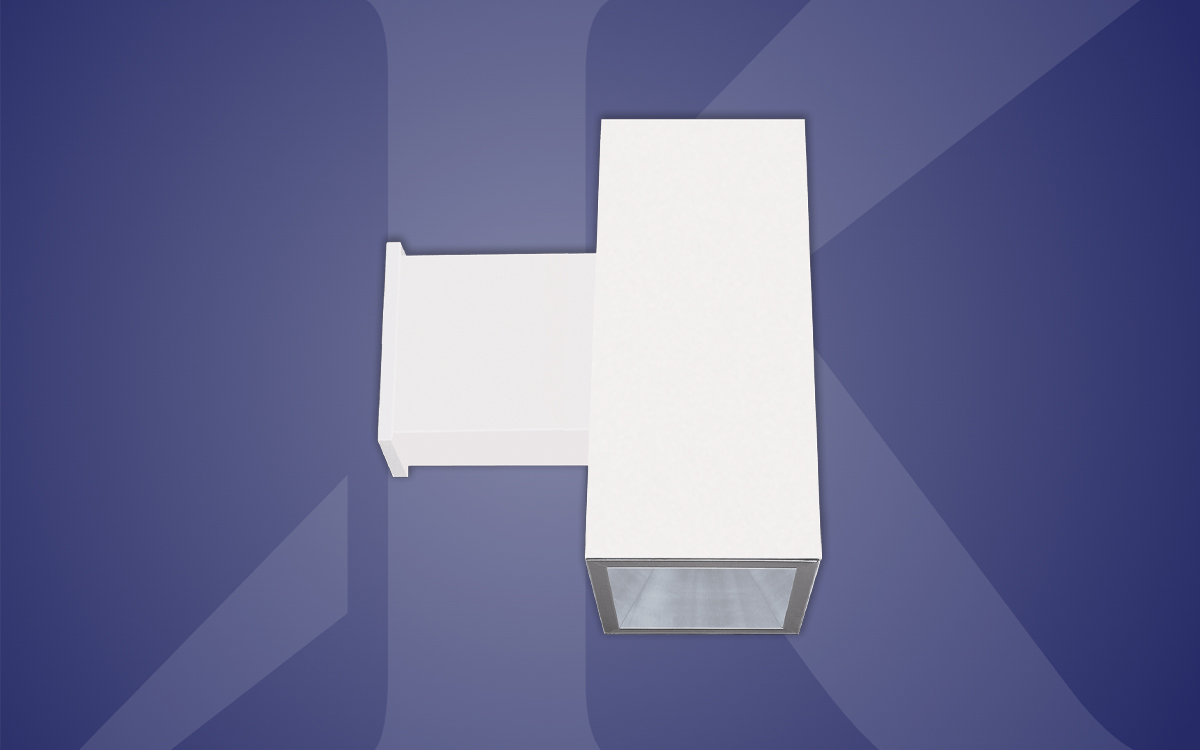

The square up and down outdoor wall light is a versatile and durable LED fixture designed for a wide range of commercial, institutional, and public applications, including airports, convention centers, educational facilities, hospitality venues, museums, retail spaces, theaters, worship areas, and other public areas. Its square cylinder shape, with a 7″ aperture, provides both upward and downward light distribution, creating visually balanced wall washing and accent lighting. The luminaire delivers 2,813 lumens at 66.3 watts with static white LED output, available in 2700 K, 3000 K, 3500 K, 4000 K, or 5000 K, and with CRI options of 80+ standard or 90+ optional (-HC), offering high-quality color rendering for both functional and aesthetic applications. The fixture is suitable for new construction projects and operates with a remote driver, supporting 0-10V or DMX dimming for integrated lighting control. With an open-look lens and flare trim, the 19″ deep fixture includes a prismatic spread lens for low-glare performance, and an optional prismatic glass lens in indirect position enhances uniform wall illumination.
Delivered system performance includes a direct/indirect lumen series that must be specified, typically 2,500 nominal lumens in both upward and downward directions at 35 watts each, with medium flood (MFL) distribution. The fixture provides a 60,000-hour rated life (L70) and is fully sustainable, with modular components removable for servicing. The thermal management system integrates an all-aluminum heat sink, housing, and components to maximize cool operation, extend life, and minimize maintenance. Remote power supplies are required for operation: SYM-CABNT for 0-10V dimming or SYM-DMXPS for DMX with RDM, with component selection facilitated through the Symphony Configurator. Emergency power backup is available via the SmartPower™ EMI-21220 battery unit, ordered separately, ensuring continuity during power interruptions.
The trim is constructed from clear specular aluminum with a self-flanged low-glare square profile. The fixture includes prismatic lenses for direct or indirect light distribution, with optional colors and finishes to coordinate with architectural design. The housing consists of seamless white acrylic-enameled aluminum with a rigid, tempered extruded 6063-T6 structure, achieving rustproof performance exceeding 1,000 hours per ASTM 5% salt spray testing. With no visible housing hardware, the luminaire maintains a clean aesthetic while facilitating cool operation to extend LED and component life. The modular design allows full visibility and serviceability of all components, including the LED light engine.
Installation requires a minimum 16 AWG shielded twisted pair wire from SmartDMX™ to the fixture, with a maximum cable run of 250′ from the remote driver. The wall bracket extrusion is integrated with the housing, and a wall plate is included for installation over a recessed outlet box. Mounting hardware is supplied, and the fixture is suitable for indoor or outdoor use in covered ceiling locations. The square wall light is UL and C-UL listed for wet, damp, or dry conditions and meets FCC Part 15 requirements for EMI/RFI emissions, ensuring regulatory compliance and reliable operation in challenging environments. This combination of optical control, dimming capabilities, robust weather-resistant construction, and serviceable modular design makes the fixture ideal for demanding commercial and public applications requiring balanced up and down lighting with long-term performance.
