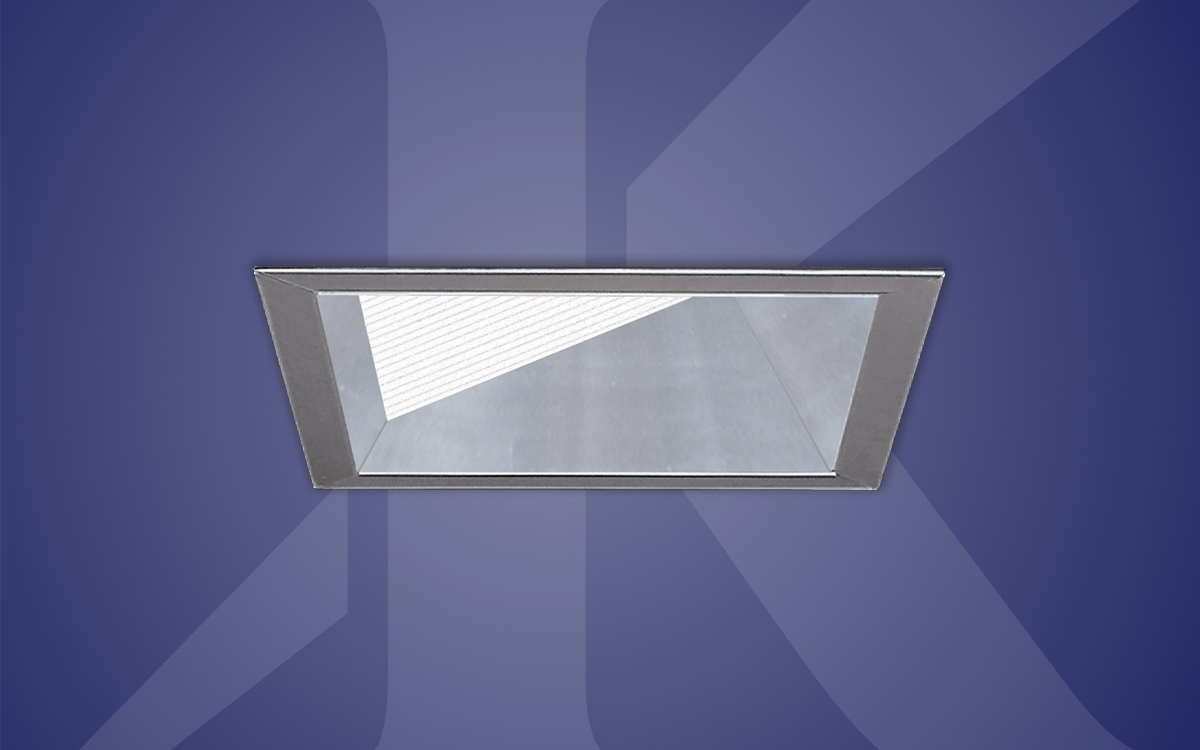

exterior spaces. With a 60,000-hour rated life (L70), this luminaire is LM-80 qualified and offers reliable long-term performance. The fixture features a 6″ square aperture, a 5-5/8″ fixture depth, and recessed mounting, making it ideal for spaces with shallow plenums or restricted ceiling conditions. Compatible with new construction and fire box installations, it is intended for use with remote drivers to provide flexible power and control options.
The luminaire produces outputs from 2,727 to 5,538 lumens, with wattages ranging from 36.7W to 73.3W, and operates across a wide voltage range of 120–277V. The static white LED source provides a standard CRI of 80+, with an optional 90+ CRI (-HC) for applications requiring enhanced color fidelity. Standard color temperature is 3500K, with optional selections including 2700K, 3000K, 4100K, and 5000K to suit various architectural and aesthetic requirements. The light is delivered through a regressed prismatic spread lens positioned at a 25° angle, while the clear specular aluminum self-flanged square trim provides a low-glare effect and optional finishes for visual customization.
The fixture incorporates a robust thermal management system with an all-aluminum heat sink, components, and housing to maximize cool operation, extend component life, and minimize maintenance. The acrylic enameled aluminum housing is rustproof and corrosion-resistant, exceeding 1,000-hour ASTM 5% salt spray testing. Its shallow depth allows installation in restricted plenums, while the entire luminaire, including the LED light engine, remains fully visible and serviceable through the aperture, ensuring full sustainability. The integrated plaster flange and modular design support ease of installation and maintenance.
Lighting control is supported via 0-10V or DMX dimming protocols. A remote power supply is required, with SYM-CABNT recommended for 0-10V applications and SYM-DMXPS for DMX with RDM. The Symphony Configurator helps determine the necessary components for proper integration. For emergency situations, the SmartPower™ EMI-21220 battery backup is available as an optional accessory. The outlet box is a UL-listed junction box with insulated removable cover, prewired 14 GA (NEC) with ½″ and ¾″ knockouts, supporting safe and efficient wiring during installation. Adjustable 27″ galvanized hanger bars with brackets are provided for secure mounting.
This wall wash light is suitable for a wide range of applications, including airports, convention centers, educational facilities, hospitality venues, museums, theaters, retail environments, worship spaces, and other public areas. Installation supports ceilings up to 1 1/8″ thick and is compatible with fire-rated enclosures (by others). The luminaire is listed for wet, damp, or dry locations and covered ceilings, with Type IC certification for direct contact with insulation available for the -2500L option. FCC Part 15 certification ensures compliance with EMI/RFI emissions, making the fixture suitable for sensitive electronic environments.
Combining shallow depth, fully serviceable modular components, precise center beam optics, and versatile lighting control, the Square Lensed Recessed Wall Wash Light provides a sustainable, low-glare solution for demanding architectural, commercial, and public space applications.
