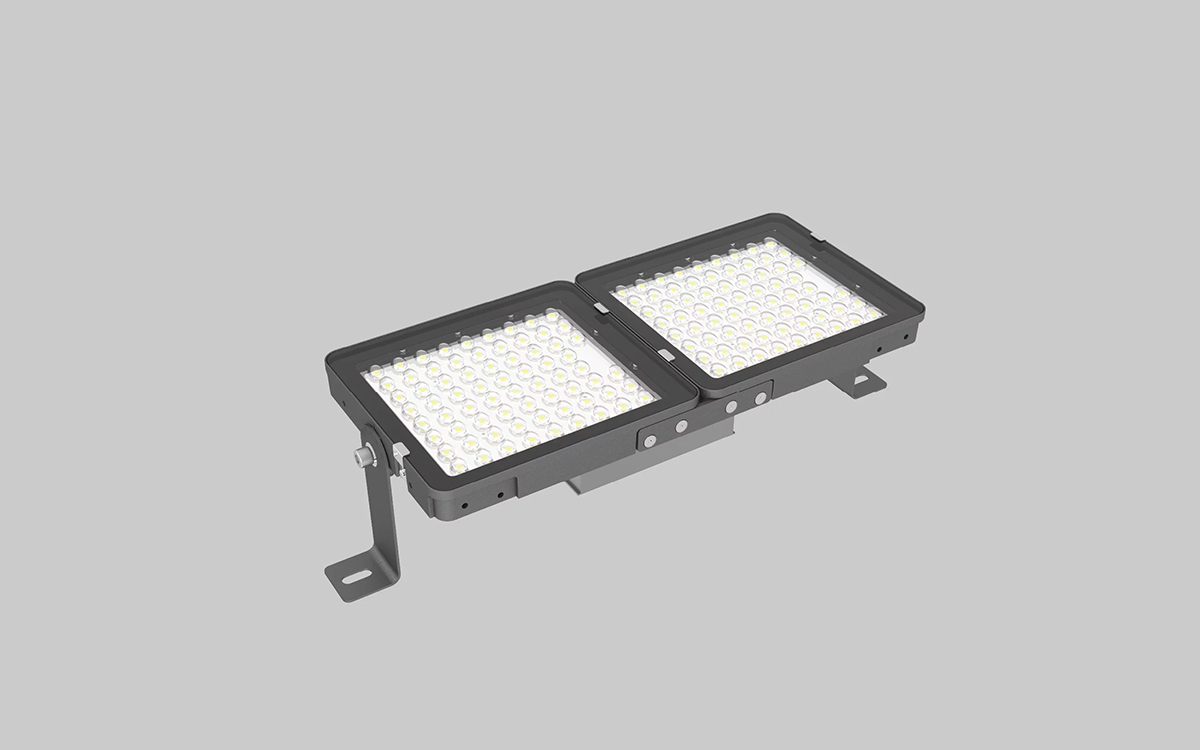

The EXC-TL-Z08/Z08T LED Tunnel Light features a waterproof isolated switching power supply from a renowned brand, ensuring high safety and reliability in its operation. Its distinctive square design allows for flexible power extension in both directions, making it adaptable to various lighting needs. The lamp body surface is treated with an outdoor electrostatic spraying process, providing strong corrosion and weather resistance, which makes the light suitable for use in a wide range of challenging environments.
This model offers both glass and lens options, delivering accurate light distribution without glare, enhancing visibility and safety in tunnel applications. For advanced functionality, it supports intelligent control options including PLC and 485 protocols. Additionally, it is equipped with Class 1 anti-electrocution protection, prioritizing user safety.
The EXC-TL-Z08/Z08T is available in power ratings ranging from 40W up to 350W, operating efficiently within an input voltage range of AC90-305V at 50/60Hz. It boasts a high power factor above 0.95, ensuring energy-efficient performance. The light source utilizes high-quality 2835 and 3030 LEDs with multiple color temperature options—3000K, 4000K, 5000K, and 5700K—and a color rendering index (CRI) above 70, producing natural and clear illumination. The luminous efficacy ranges between 130 and 180 lumens per watt, paired with a long service life of 50,000 hours. Constructed with durable ADC12 material and rated IP66, the fixture is designed to withstand harsh weather conditions. It operates reliably in temperatures from -40°C to +50°C and humidity levels between 10% and 90%. Installation is conveniently carried out through a bracket mounting system.
