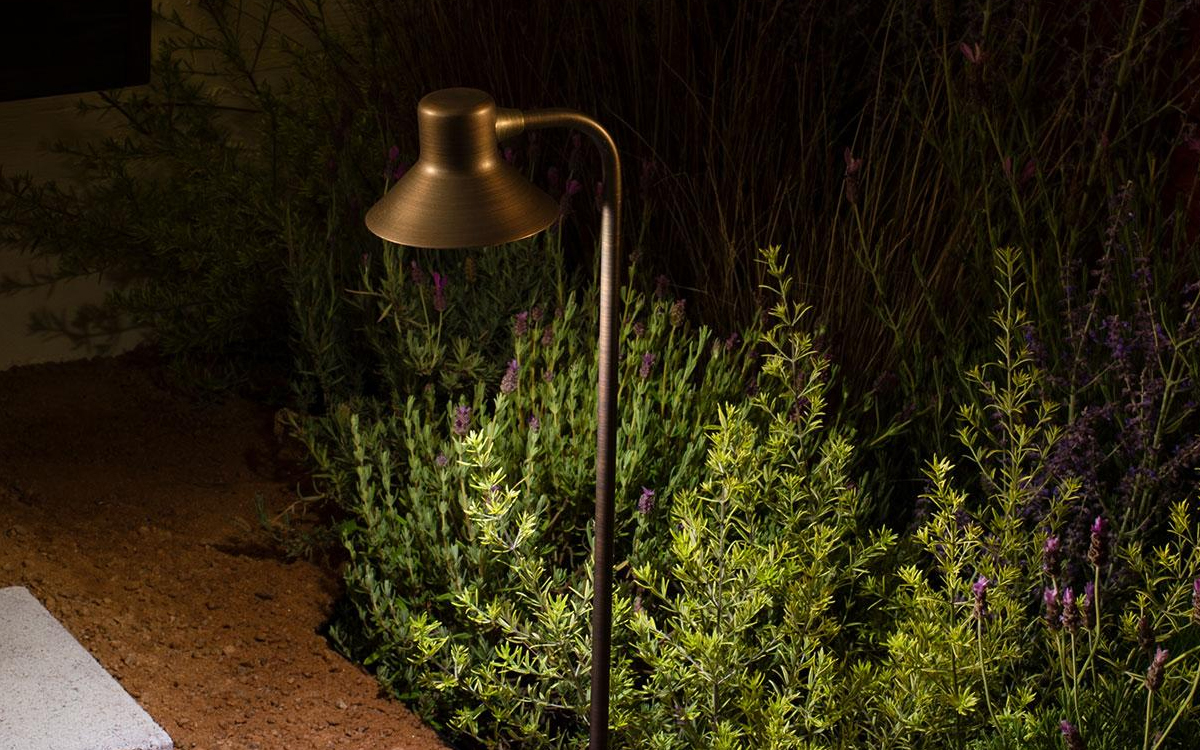

The FG LED Path Light embodies a timeless blend of form and function, combining solid copper and brass construction with a classic, clean design reminiscent of a country home. Its elegant, enduring style transcends fleeting trends, harmonizing beautifully with architectural themes ranging from Craftsman homes to Tuscan landscapes. Designed to provide efficient and attractive pathway lighting, the FG delivers performance and beauty in equal measure.
Constructed with a machined C360 brass cap and reducer, and featuring a spun C110 copper top and extruded riser, the FG is built to withstand the elements while offering a refined look. Finish options include natural copper and brass or antiqued styles like Antique Bronze and Antique Tumbled, all sealed with a clear TGIC powder coat for added protection. Brass accents remain natural across various finishes, including Bronze, Silver, Black, and Flat White.
The FG fixture is equipped with integrated Cree® LEDs, known for their durability and light quality. Its on-board intelligent driver includes firmware-controlled temperature regulation to ensure long life and optimal performance. The LED modules are field-upgradeable and replaceable, with an average rated life of 50,000 hours. The fixture supports up to nine LEDs, delivering up to 474 lumens and reaching an efficacy of up to 54 lumens per watt depending on configuration. Color rendering indexes range from 79 to 84, ensuring rich and accurate color output.
The FG supports color temperature customization through polycarbonate lenses that include 2700K (preinstalled), 3900K (no lens), 4500K, and 5200K options. These lenses are field serviceable and work in conjunction with a conical reflector to maximize beam distribution based on riser height. A frosted polycarbonate lens adds durability and diffuses light for comfortable pathway illumination.
Fully compatible with Luxor® technology, the FG offers flexible control through zoning, dimming, and even color changing when equipped with ZD or ZDC configurations. Users can group up to 250 fixtures, dim each group in 1% increments, or select from 30,000 RGBW colors in ZDC models. Standard configurations are also zoneable within Luxor systems.
Powering the FG requires 10–15 VAC/VDC at 50/60Hz, and a remote transformer must be specified separately. The fixture includes 18 AWG wiring with a 3.6-foot lead and a 12-inch riser, and it mounts with a 12-inch ABS slotted installation spike. The riser, a ⅜" copper tube, is mechanically bonded to brass fittings under over 2,000 lbs of pressure, eliminating the need for adhesives and providing exceptional durability.
Engineered for long-lasting outdoor performance, the FG operates in ambient temperatures ranging from 0°F to 140°F (-18°C to 60°C) and is compliant with international lighting standards IEC 60598-1 and IEC 60598-2-4 when paired with the appropriate mounting accessory. MoistureBlock™ socket technology prevents water intrusion, while stainless steel hardware ensures corrosion resistance. To meet International Dark-Sky Association guidelines, users should select a 3000K or lower light source.
At just 2.6 pounds, the FG is a robust yet manageable fixture, thoughtfully designed for downward lighting applications in residential and commercial landscapes alike.
