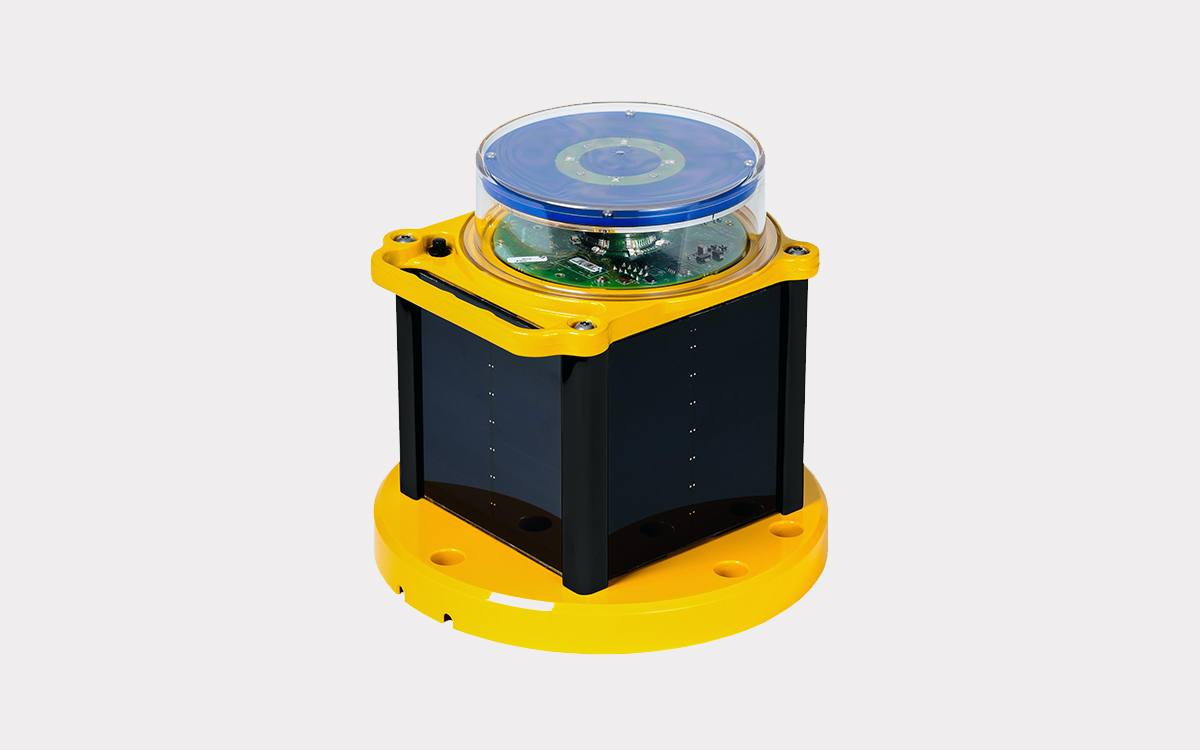

Avlite’s solar helipad lighting systems offer a reliable, energy-efficient alternative to generator- or grid-powered lighting for heliports in a wide range of environments, including ground-based, rooftop, offshore, temporary, and remote locations. The A704-VL solar helipad lights are engineered to meet ICAO Annex 14 and FAA heliport lighting requirements, making them ideal for use as Touchdown and Lift-off Area (TLOF) perimeter lights. These lights are third-party tested and available with three scalable solar engine sizes, providing versatility for global deployment. Built on a robust and proven technology platform, A704-VL lights are specifically designed to endure the world’s most demanding conditions with minimal infrastructure or support required.
The system is remarkably easy to install, requiring no trenching or interruption to airfield operations. A small crew can simply place the A704-VL solar helipad lights where needed. Once deployed, the lights automatically operate from dusk to dawn, while the integrated battery maintains sufficient charge for continuous operation. The all-in-one design features an LED light source, solar panel, energy management system (EMS), and battery in a compact, sealed unit that typically requires no maintenance for up to seven years. The replaceable battery extends the service life beyond five years and is both recyclable and designed for over 2,500 charge cycles.
Performance reliability is ensured through Avlite’s intelligent EMS, which autonomously manages energy usage and provides consistent light output in all environmental conditions. The system includes Automatic Light Control (ALC) functionality that adjusts brightness in response to available sunlight, extending operational time during low solar conditions. The A704-VL lights have been tested to meet ICAO, FAA, and military standards for shock, vibration, salt fog, rain, and temperature extremes. The high-performance optics use LM-80 certified LEDs for consistent photometric output and are available in visible and infrared (IR) modes compatible with night vision goggles.
These lights are built for the harshest climates, with temperature tolerances ranging from -40°C to 80°C (-40°F to 176°F), wind resistance up to 400 mph (644 kph), and ice loading of 22 kg/m². The enclosure is constructed of corrosion-resistant, powder-coated aluminum with an integrated handle and sealed battery compartment. Lenses are made from UV-stabilized polycarbonate or optional jet blast-resistant tempered glass. The entire system is ingress-protected to IP67 standards and meets MIL-STD-810G and MIL-STD-202G for immersion and environmental durability.
Avlite’s solar helipad lights are currently operational year-round at over 500 airports and military installations worldwide. The optical system offers omnidirectional 360-degree output and supports color options including white, blue, green, yellow, and IR. Lights are available with both non-wireless and wireless control options (900 MHz or 2.4 GHz) and can include standard or military charging ports if desired. Intensity is adjustable via three automatic and three temporary brightness modes, and LED life expectancy exceeds 100,000 hours.
The high-efficiency monocrystalline solar module achieves 21% conversion efficiency and uses Maximum Power Point Tracking with Temperature Compensation (MPPT-TC) to optimize energy harvesting. Battery options include compact (4.2V, 15Ah), standard (4.2V, 24Ah), and large (4.2V, 50Ah) sizes, each using pure-lead VRLA AGM technology rated for operation between -65°C and 80°C. On-board battery status indicators provide simple diagnostics, and the EMS is accessible via a push-button interface for local configuration.
Compliant with both ICAO and FAA heliport and taxiway lighting standards—including ICAO FATO, TLOF, and taxiway guidelines as well as FAA L-861T and L-860HR—A704-VL lights are highly adaptable for permanent, temporary, or emergency heliport lighting applications. Whether used in defense, offshore platforms, hospitals, or remote installations, Avlite’s solar LED lighting systems represent a trusted and efficient solution for safe heliport operations.
