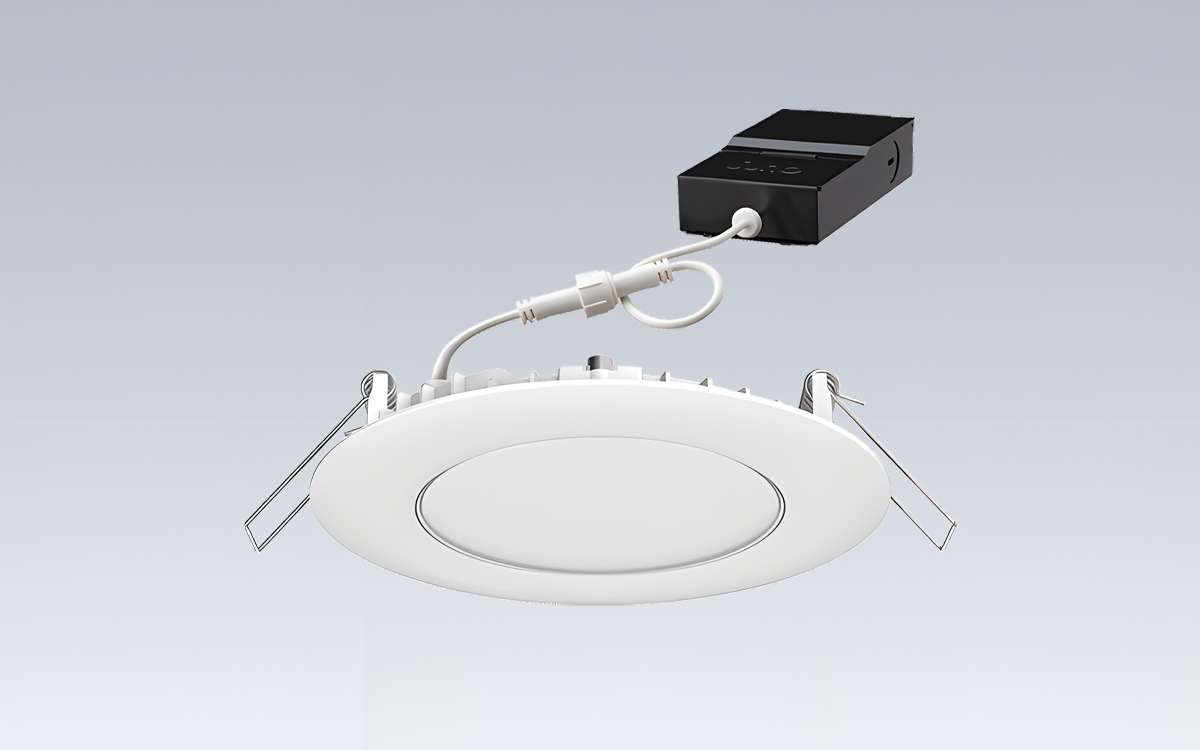

The Juno® smart tunable white LED wafer downlight offers a seamless solution for connected home lighting, combining ultra-slim aesthetics with sophisticated control options. These smart wafer downlights utilize Bluetooth or Zigbee to pair with mobile devices or compatible smart home hubs and are certified for SmartThings, Alexa, and Google Home platforms. Once integrated with a smart home hub, they allow voice control, scheduling, and grouping for synchronized lighting throughout the home. Users can adjust tunable white color temperatures from 2700K to 5000K, dim lights down to 1% for mood setting, and control on/off functionality directly from a smartphone or tablet, making customization simple and intuitive.
The JunoConnect™ ultra-slim tunable white LED downlight provides a user-friendly entry point into connected home lighting. Commissioning is achieved through Apple or Android devices using Bluetooth or Zigbee, with control via the SmartThings app or Alexa and Google voice assistants. After installation, users can easily adjust on/off settings, fine-tune color temperature, dim the lights to set the desired ambiance, and group multiple fixtures to control an entire area simultaneously. Installation is straightforward and adaptable for new construction, as the low-profile integrated LED downlight requires no housing, fits into wood joists, and is compact for easy handling and serviceability.
The housing of the wafer downlight consists of a durable aluminum die-cast outer frame finished with powder coat paint to prevent rust. The FT4 plenum-rated cable connector allows simple connection to the remote driver box, which contains an isolated IC-rated driver. The steel driver box includes four 7/8” knockouts with pryout slots and a 12 cubic-inch wiring compartment, accommodating up to six 14-gauge insulated conductors. This design facilitates daisy-chain wiring and makes installation contractor-friendly. The downlight is rated for 50,000 hours of life and comes with a three-year warranty on LED components.
The LED light engine is integrated into a single piece of high-purity aluminum for optimal thermal conductivity and uninterrupted heat transfer, ensuring long-term performance. Tunable color temperature ranges from 2700K to 5000K with a minimum 90 CRI, and the LEDs are dimmable to 1% for precise control. The dedicated 120-volt replaceable driver accommodates standard AC input at 50/60Hz.
The optical system uses a computer-optimized reflector with a high-reflectance white finish, coupled with a high-transmission diffusing lens to conceal the LEDs and produce uniform output. Despite using only 9 to 14 watts depending on model, these downlights produce over 1000 lumens, effectively replacing 75W incandescent lamps.
Certification and safety labels include CSA certification for U.S. and Canadian standards, suitability for wet locations, Air-Loc certification per ASTM E283-2004, NOM certification, and compliance with California Title 24 Part 6 High Efficacy LED Light Source requirements. The downlights are available in 4-inch and 6-inch apertures, with round or square shapes. Light output ranges from 650 to 1200 lumens, with adjustable trim styles including baffle, gimbal, lensed, or fully adjustable options. The fixtures are finished in white, recessed mount, operate at 120 volts, and are ideal for modern smart homes requiring dynamic tunable white lighting with long life and versatile control.
