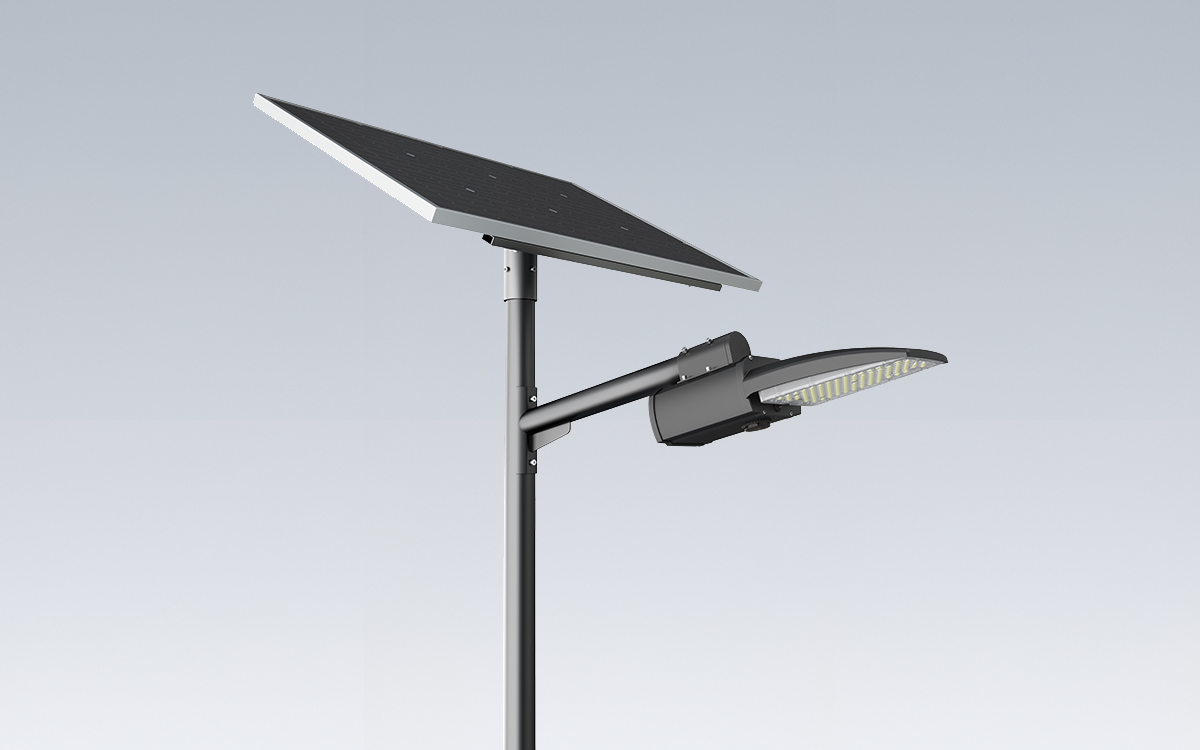

The PV6 series smart all-in-two solar street light offers a sophisticated solution for outdoor lighting, combining flexibility, high efficiency, and intelligent control in a single system. Unlike traditional integrated designs, the PV6 utilizes an external high-efficiency monocrystalline solar panel with adjustable orientation, enabling it to track the sun accurately and maximize energy capture throughout the day. The LiFePO4 battery and MPPT controller are integrated directly into the LED luminaire, which is constructed from die-cast aluminum and stretched aluminum. The die-cast aluminum enhances heat dissipation, ensuring reliable long-term performance, while the stretched aluminum allows for customization of battery capacity to meet specific project requirements. This thoughtful design optimizes both energy management and system longevity.
The PV6 series offers professional optical light distribution with luminous efficiency up to 210 lumens per watt, producing brightness levels ranging from 6,300 to 25,200 lumens. Such flexibility in output allows the PV6 to adapt to a wide variety of applications, including streets, parks, parking lots, pavements, industrial areas, and shopping malls. Its modular plug-and-play connector design between the luminaire and the external solar panels greatly simplifies installation, making it particularly suitable for locations with unreliable or absent power grids. Additionally, the all-in-two configuration supports side-entry mounting, providing further adaptability for urban, suburban, and commercial environments.
Equipped with an MPPT intelligent controller, the PV6 achieves up to 96% charging efficiency, ensuring that captured solar energy is used effectively to maintain consistent performance. The long-life lithium-ion battery supports extended operation and reduces maintenance requirements. Smart control features, including motion or PIR sensors and timer dimming, can be customized according to client requirements, while 2.4G wireless communication allows for remote control of the system.
The PV6 series is available in power options ranging from 30W to 80W, with solar panel capacities from 60W to 160W and battery capacities between 307Wh and 768Wh. Operating on DC 12/24V, it meets IP66 and IK10 standards for dust, water, and impact protection, ensuring reliability in a wide range of environmental conditions. Its Type II light distribution ensures uniform coverage, while color temperature and CRI are suitable for professional outdoor lighting. Certified to CE, IEC, ROHS, LM79, LM80, TM-21, IP66, IK10, and IEC62471 standards, and backed by a three-year warranty, the PV6 series smart solar street light represents a durable, efficient, and adaptable solution for modern off-grid and on-grid lighting projects.
