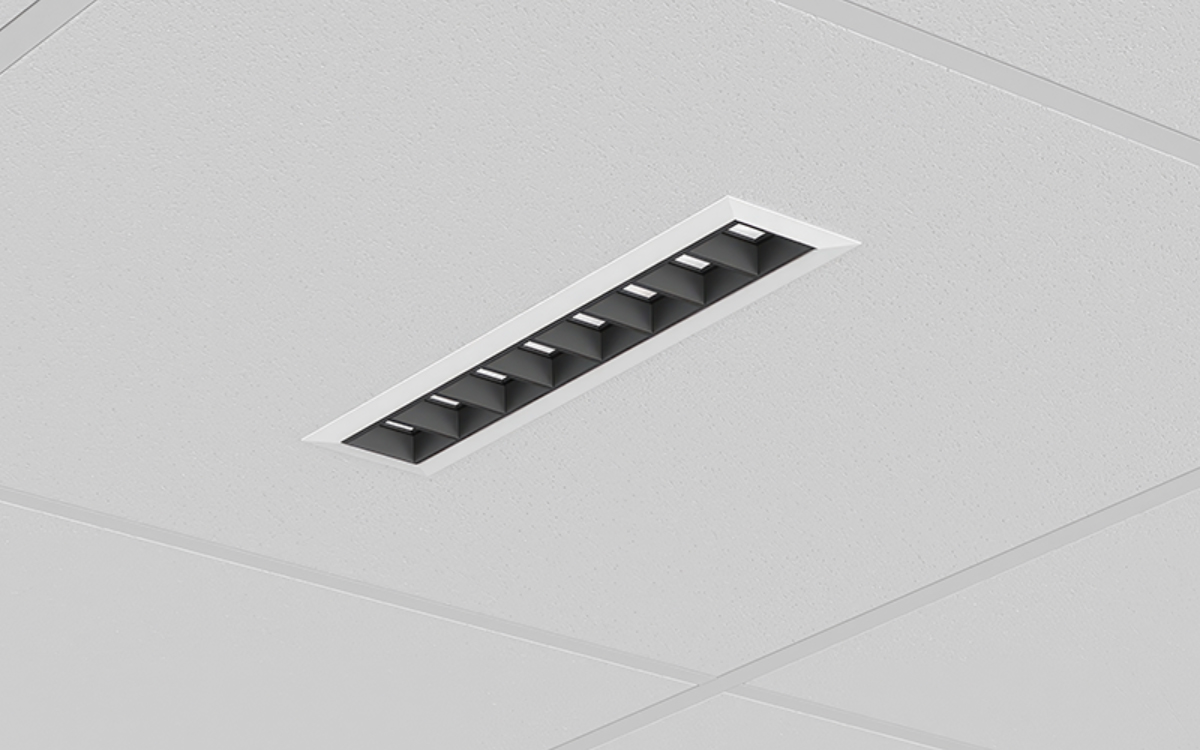

Pixel™ Recessed Downlights offer a refined and minimalist approach to architectural lighting, delivering superior performance in a compact form. Designed to complement ceilings with understated elegance, Pixel fixtures are available in three sleek recessed configurations—4- and 8-cell linear forms and 4-cell square forms. This small-scale flexibility expands your lighting design toolbox, allowing you to layer light creatively, introduce rhythm across the ceiling, and generate dynamic visual interest in any environment. Whether used as simple accent lighting or combined in unique grid compositions, Pixel opens the door to bold lighting statements and refined ambiance.
At the heart of each Pixel module is the MikroLite™ 1.5 optical system, engineered for high efficacy, low glare, and exceptional color control. The square-in-square downlight trim incorporates Axis' patent-pending mixing chamber optics, delivering high-output illumination with architectural precision and deep visual comfort. Color quality is outstanding, with a minimum 80 or 90 CRI and tight color consistency within a 3-step MacAdam ellipse. Color temperatures range from 2700K to 4000K, and a specialized LED cluster layout ensures uniform color blending with no angle-dependent shifts. With a rated life of at least 50,000 hours and 85% lumen maintenance at 25°C ambient, Pixel downlights promise long-term reliability.
The fixture construction reflects its commitment to performance and durability. Housings are offered in 1x4 and 1x8 extruded aluminum formats, with 2x2 square forms crafted from robust sheet metal. Interior brackets are die-formed from 20-gauge steel, and the micro downlight system uses high-density composite polycarbonate with extruded acrylic mixing lenses and formed aluminum optics. The heat sink is extruded aluminum, ensuring effective thermal management by doubling as part of the housing to extend LED life.
Pixel is powered by a range of remote driver options for tailored control. Choices include Lutron EcoSystem H-Series (1%), DALI, DMX, Xitanium SR for wireless integration, and Power over Ethernet (PoE) options from MOLEX, IGOR, and SMARTENGINE. Emergency battery packs and circuits are also available, all UL2108 certified for integral or remote driver configurations. The system operates on 120V, 277V, or universal voltage (UNV) and is certified to both UL and CSA standards, making it suitable for damp locations.
Designed for both form and function, Pixel seamlessly integrates into modern environments, whether in high-ceiling applications or intricate ceiling grids. With finishes available in black, white, and grey, and compatibility with suspended ceilings via Pixel Grid, the fixture offers the freedom to define space through light—precisely, efficiently, and beautifully.
