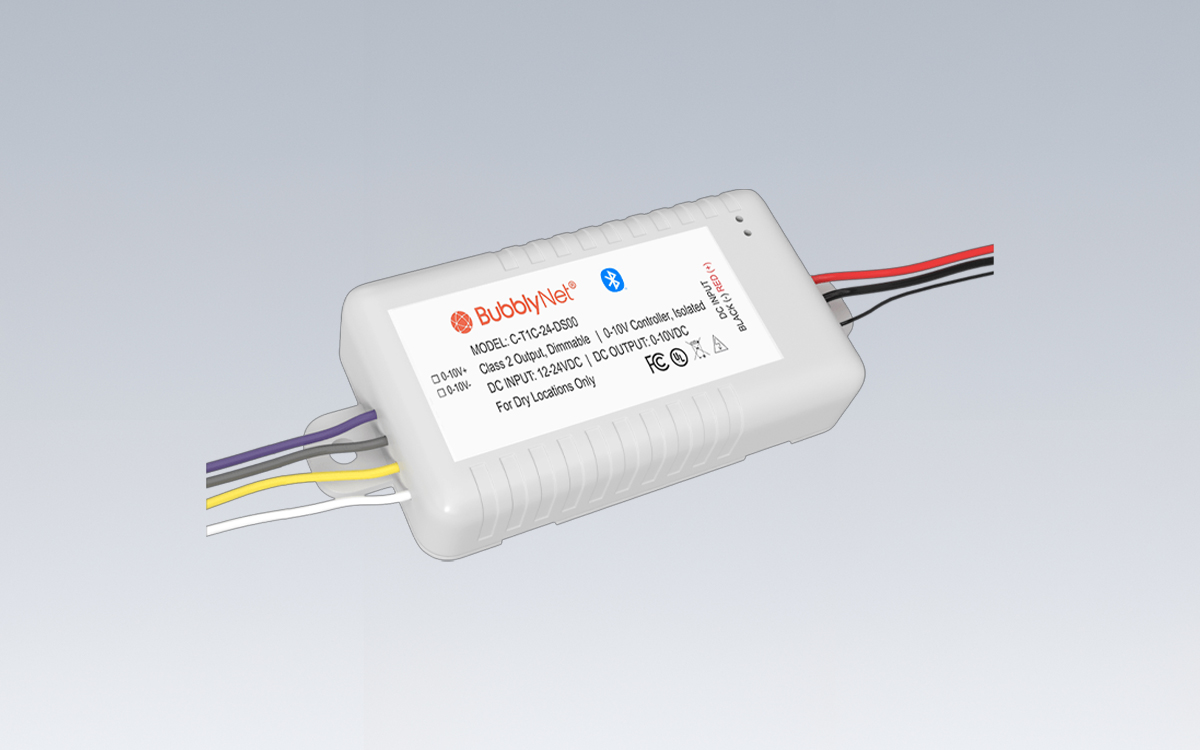

The Single Channel 0-10V Controller is a Bluetooth® Mesh bridge that converts standard 0-10V LED drivers, motorized blinds, power units, or other compatible devices into smart wireless components. Once connected, it enables seamless control of one or multiple 0-10V devices through Bluetooth communication, without requiring the use of a gateway. This controller allows users to integrate non-wireless equipment into modern Bluetooth® Mesh networks, expanding flexibility and functionality across lighting and automation systems.
Compact and versatile in design, the controller can be installed inside lighting fixtures, junction boxes, or its own UL-listed enclosure, and may also be mounted remotely as needed. Operating on a 12–24VDC input, it outputs a 0–10VDC control signal capable of dimming up to 100mA. The unit is built to perform reliably in a wide temperature range from -22°F to 158°F (-30°C to 70°C), making it suitable for diverse indoor and outdoor applications. Its small form factor—measuring just 3.25” x 1.5” x 0.25” (82.5 x 38 x 6.35 mm)—simplifies integration into existing systems, while an optional power supply is available to match project requirements.
Once powered, the Single Channel Controller automatically broadcasts its identification code, allowing quick provisioning and setup through the BubblyNet App. As a Bluetooth® Mesh Qualified device, it is fully compatible with any Bluetooth® Mesh network, regardless of brand or manufacturer. This interoperability ensures that it can function cohesively alongside a wide variety of mesh-enabled lighting controls and accessories.
The controller supports programmable dimming curves and soft ON/OFF transitions for smooth and visually comfortable light adjustments. However, the dimming performance ultimately depends on the characteristics of the connected 0-10V driver, as third-party driver compatibility may vary. Because this model does not include an internal relay, it cannot cut power completely—if the connected driver does not reduce output to zero at 0V, the luminaire may not fully turn off. In such cases, a 0-10V controller with an integrated relay is recommended.
Combining simplicity, versatility, and robust wireless control, the Single Channel 0-10V Controller enables effortless transformation of conventional 0-10V devices into intelligent Bluetooth® Mesh components, eliminating the need for gateways and delivering a streamlined path toward smarter lighting and automation solutions.
