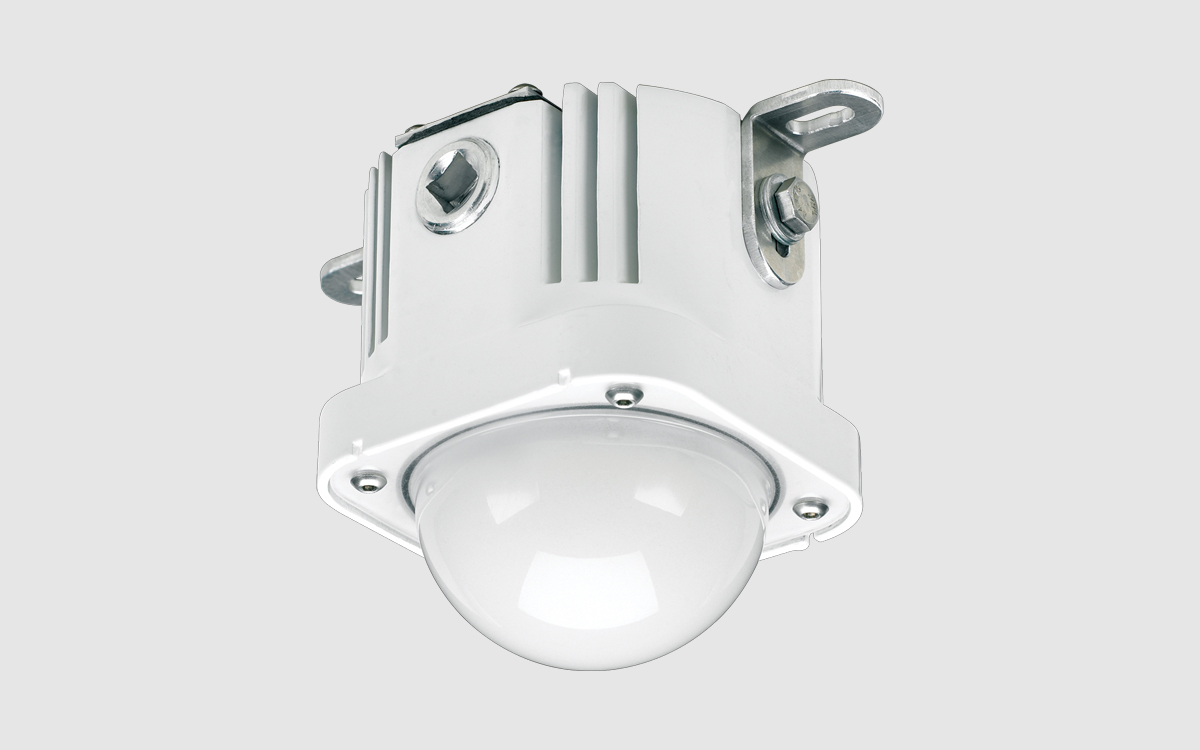

The Cube-Light is a high-performance, compact LED lighting solution designed for both outdoor and indoor applications, delivering up to 1,000 effective lumens of bright, maintenance-free illumination. Engineered for reliability in challenging environments, it is ideally suited for walkways, accessways, tunnels, doorways, machine rooms, and enclosed spaces above or below deck. Its rugged design ensures consistent operation in harsh weather, wet locations, and areas exposed to high shock and vibration, making it a dependable choice for marine, mining, port, and industrial applications.
This versatile fixture supports multiple mounting configurations, including standard flush mounts, harp mounts, and rail mounts for 2-inch overall diameter rails, enabling it to adapt to a wide variety of installation requirements. It can be positioned in any orientation without compromising performance, further enhancing its application flexibility. The Cube-Light operates on both AC and DC power sources, with voltage options of 120–240V at 50/60Hz, and is tested and certified to withstand demanding ambient temperature ranges from -30°C to +50°C.
Built for longevity and resilience, the Cube-Light features a durable cast aluminum housing with a white thermoset powder-coated finish for corrosion resistance. Its marine-grade 316 stainless steel hardware ensures structural integrity in saltwater environments, while the impact-resistant, diffuse polycarbonate lens provides even light distribution and protection against physical damage. Optional lens accessories in red, green, blue, and amber are available for specialized lighting applications, expanding its functional capabilities.
The fixture produces a crisp 5000K color temperature with a Color Rendering Index (CRI) of 70 or greater, delivering high-quality illumination suitable for safety and visibility in critical areas. With a conformal-coated light source rated for a 50,000-hour operational life, the Cube-Light offers long-term reliability with minimal maintenance. Wiring options include stranded wires as standard, with an available 72-inch cord and pigtail configuration, as well as a NEMA 5-15 plug option for 120V installations. Through-wiring capability allows for continuous row mounting, making it suitable for extended lighting runs in industrial or marine environments.
Certified for performance and safety, the Cube-Light meets ETL/cETL standards to UL 1598 for wet locations, UL 1598A for marine outside type (saltwater) environments, CSA C22.2 No. 250.0, CE compliance, ABS approval, and IP66 ingress protection. LM79 and LM80 test reports are available for performance verification, and the fixture complies with the Buy American Act (BAA). Combining rugged construction, versatile mounting, high-efficiency lighting, and proven marine-grade durability, the Cube-Light is an ideal solution for demanding applications where reliable illumination is essential.
