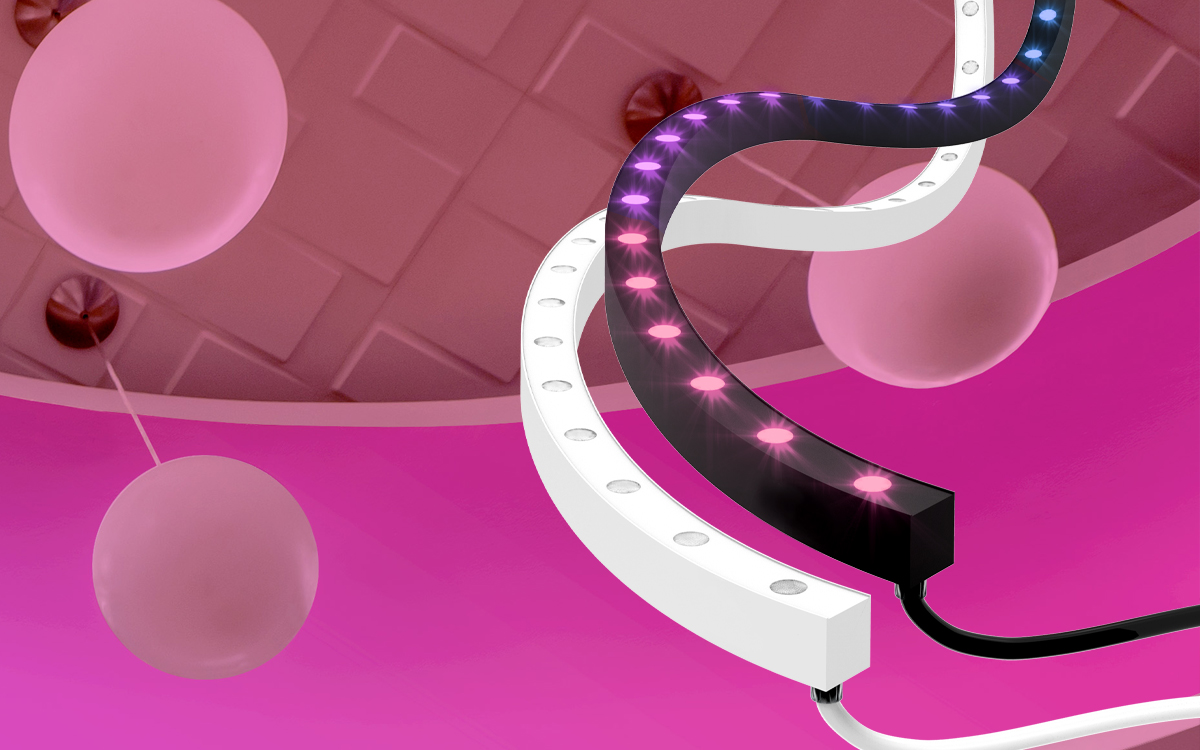

The Nano Flex RGBW is a 24V color-changing linear flexible silicone LED wall grazer engineered to deliver versatile and dynamic illumination for both interior and exterior applications. Designed to adapt to complex architectural and landscape settings, this fixture offers three beam angle options—15° x 15°, 38° x 38°, and 60° x 60°—allowing designers to achieve precise light distribution for grazing, accenting, or color-changing effects. In addition to its RGBW color capabilities, the Nano Flex is available with four static white CCT options ranging from 1800K to 4000K, providing adjustable brightness and warm-to-cool lighting flexibility.
The Nano Flex RGBW supports pixel-level programming in 10-inch (250 mm) segments, making it fully compatible with SPI (Serial Peripheral Interface) control systems. Each foot of the fixture contains seven LEDs (24 LEDs per meter) spaced 1.65 inches (42 mm) apart, producing uniform illumination along its length. The fixture accommodates runs of up to 16 feet 4 inches (5 meters) from a single feed, offering scalability for both small accent projects and larger architectural installations. Dual bending capabilities, including side- and top-bending, enable the tube to follow curves, contours, and intricate surfaces, making it ideal for creative and complex grazer applications.
Built for durability, the Nano Flex RGBW carries an IP68 rating for full waterproof protection and an IK08 rating for impact resistance, ensuring reliable performance in both indoor and outdoor environments. It is offered in white or black finishes to match a variety of design aesthetics. The fixture can be installed using mounting clips, standard mounting channels, or flexible mounting channels, providing adaptability to diverse architectural and landscape configurations.
Operating at 24V with a power consumption of 7 W/ft (23 W/m), the Nano Flex RGBW combines energy efficiency with high-quality light output. Its combination of flexible bending, pixel-level programmability, multi-angle beam options, and robust IP68/IK08 protection makes it an ideal solution for designers seeking customizable, dynamic, and durable color-changing LED wall grazing solutions that can accommodate both simple and highly complex installations.
