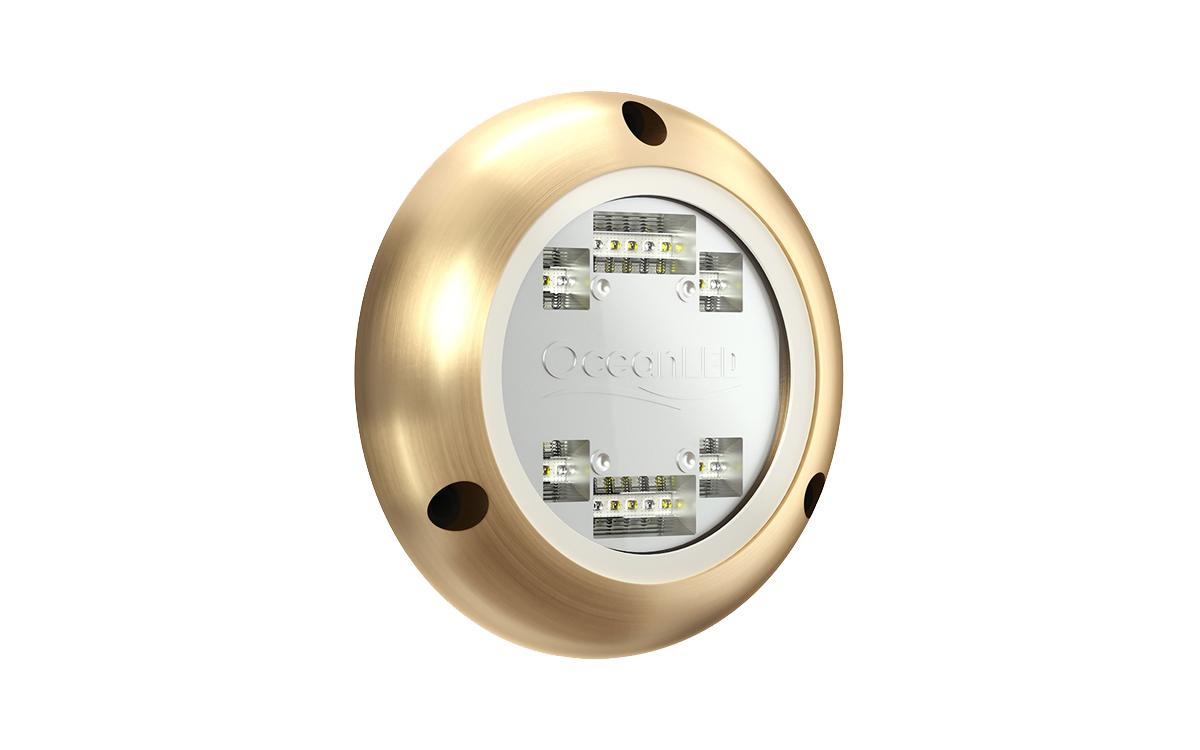

The Sport Colors DMX is designed for exceptional underwater lighting performance, with mounting and installation recommendations optimized for vessels up to 65 feet (20 meters) in length. For ideal illumination and visual balance, it's recommended to install between two and six fixtures along the transom, spaced approximately 2 to 4 feet (0.5 to 1.2 meters) apart. To ensure the best beam coverage and underwater penetration, each fixture should be mounted with the top of the unit positioned 8 to 10 inches (20 to 25 centimeters) below the waterline.
This powerful full-color LED fixture delivers a raw output of 5,600 lumens, with an effective fixture lumen output of 3,000, offering brilliant underwater lighting effects for sport fishing, leisure cruising, and nighttime water sports. Built with longevity in mind, the Sport Colors DMX boasts a typical LED life expectancy of over 40,000 hours, ensuring years of reliable performance in marine environments.
The light operates efficiently across a wide DC voltage range of 9–32V, drawing a maximum of 3.6 amps at 12V and 1.7 amps at 24V. Amperage may vary depending on the selected color mode. An internal driver is integrated into the unit, featuring reverse polarity protection for added safety during installation and operation.
Constructed from durable AB2 aluminum bronze, the Sport Colors DMX is engineered to withstand harsh marine conditions. The total unit weight is 700 grams, making it lightweight yet tough. The fixture includes a standard 9.84-foot (3-meter) extension cable and requires only a 0.5-inch (12.5mm) hole for cable entry, simplifying installation for DIY or professional marine electricians alike. With its combination of performance, protection, and ease of use, this light is an ideal solution for enhancing visibility and ambiance on the water.
