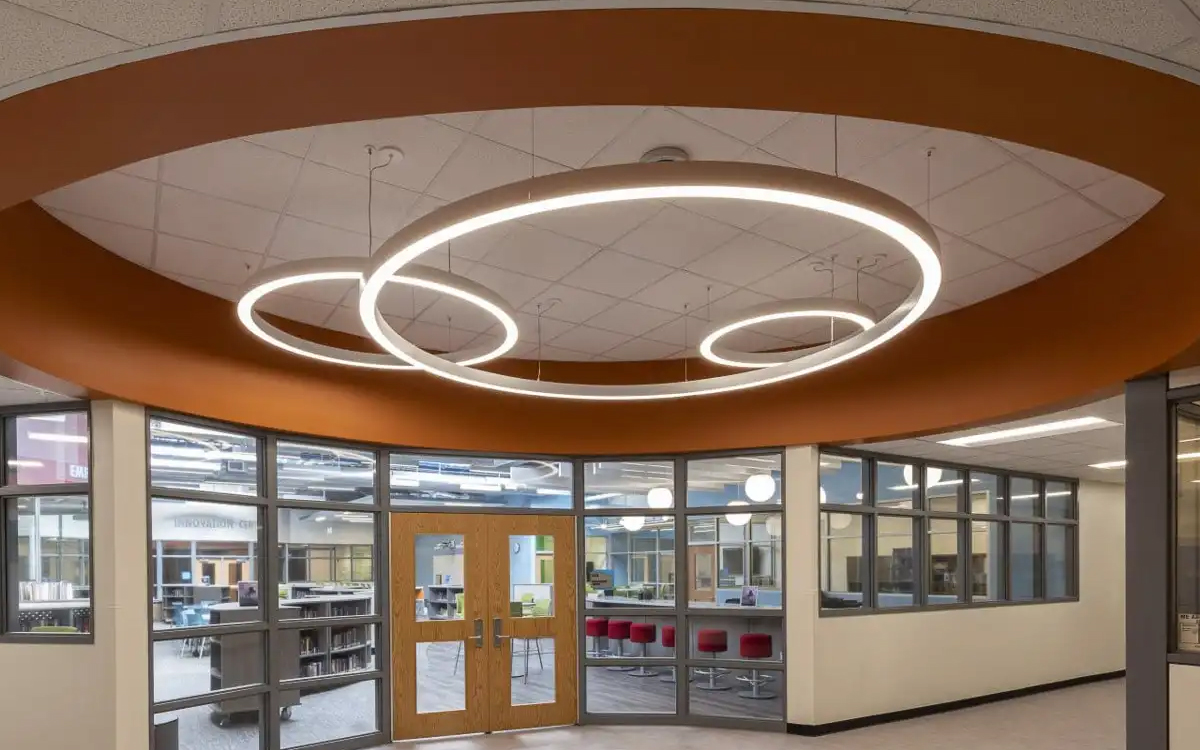

The 3-inch aperture MoonRing LED ring pendant light is the compact yet powerful version of ALW’s best-selling architectural ring luminaires. This pendant delivers high-performance output with customizable lumen packages and versatile distribution options, while maintaining the same expansive diameter range from 2 feet to 16 feet. Designers can select from 18 standard finishes, including hand-brushed aluminum, or choose from hundreds of additional powder coat RAL or catalog colors, enabling a tailored aesthetic for any commercial, hospitality, or residential interior.
Constructed from extruded and welded 6061 aluminum, the MoonRing 3 features a precision-milled, extra-diffused opal acrylic lens designed for light-leak-free illumination. LED lamping includes white light outputs ranging from 2,350 to 56,700 lumens per ring, tunable white (2700K–6500K), and full RGB or RGB+W color options. Luminaire distribution can be direct or direct plus indirect with standard Lambertian output, while power ranges from 22 to 595 watts. Color temperature options include 2700K, 3000K, 3500K, and 4000K, with CRI values of 80 or 90+, ensuring vibrant, high-quality color rendering. The fixture is suitable for dry locations, and drivers can be positioned remotely. Dimming compatibility includes 0-10V (down to 5/1/0%), DALI, DMX, Phase dimming, Lutron EcoSystem, LDE1 (1%), and POE, offering precise control for any space.
The MoonRing 3 offers a variety of mounting configurations to accommodate design intent and architectural requirements. Standard suspension features a 4.5-inch white canopy per power feed, bullet mounts, and 8-foot aircraft cables, with custom lengths available upon request. Central Axis Suspension routes all aircraft cables and power feeds through a 4.5-inch central canopy, with a minimum 18-inch distance from ceiling to fixture. The Central Collared Suspension option incorporates a 5-inch collared ring matching the body finish for a streamlined aesthetic. Add-on seismic bracing hardware, including cable grippers and clamps, ensures safe installation in sensitive environments. Suspended configurations use standard 4.5-inch canopies, while the canopy finish remains white for a uniform appearance.
For intelligent building integration, MoonRing 3 supports a wide range of advanced lighting controls and sensors. Compatibility includes Cooper Wavelinx wireless sensors, Enlighted connected lighting smart sensors, Lutron Vive remote RF wireless controls with optional daylight and occupancy sensors, Molex CoreSync PoE sensors, and both wired and wireless nLight sensors. Additionally, high-voltage 0-10V remote surface-mount sensors, including automated dimming and manual override functionality, can be field-connected for complete customization. These integration options ensure seamless connectivity with modern lighting management systems, enabling automated, on-demand, or dynamic control of the luminaires.
The MoonRing 3 combines sophisticated design, high-performance LED technology, and versatile mounting and control options, making it an ideal choice for architectural projects that demand both aesthetic elegance and functional excellence. With fully customizable finishes, lumen outputs, distribution types, and smart building integration, this pendant offers architects and designers maximum flexibility to achieve unique and impactful lighting solutions.
