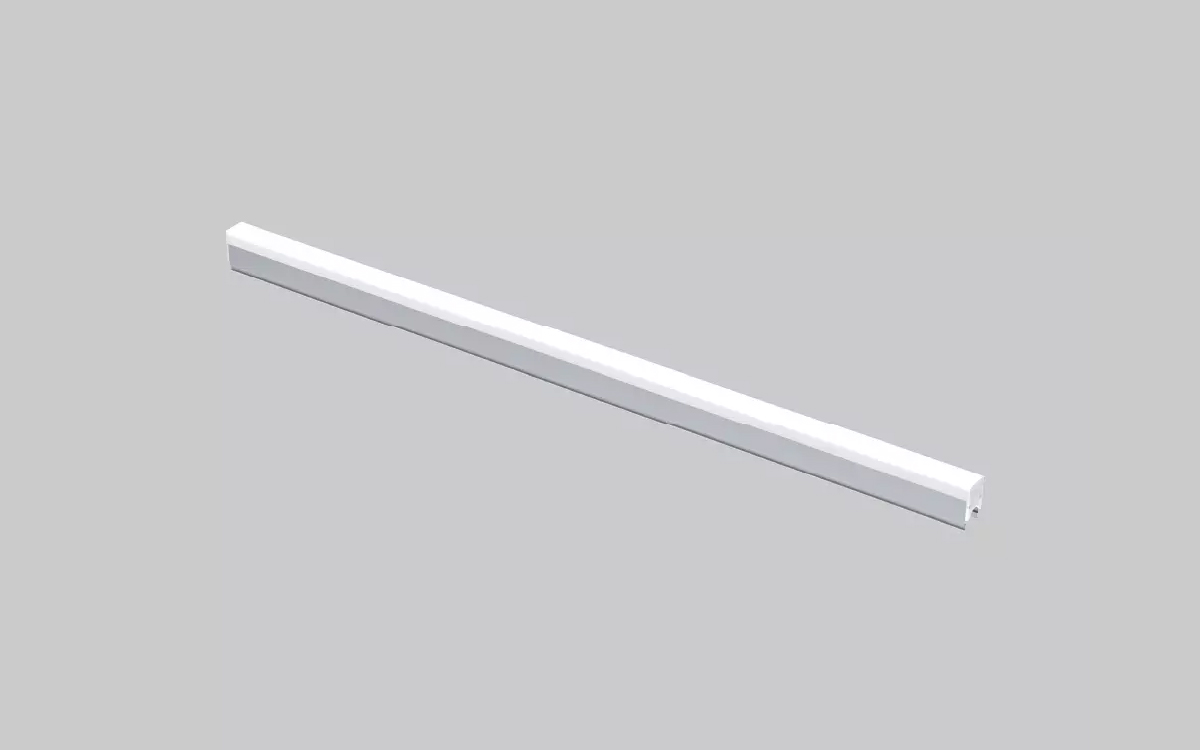

The EXC-D30AB is a high-performance, extra-narrow linear direct-view LED fixture engineered for outdoor architectural and landscape decoration. Encased in a high-strength aluminum alloy housing, it delivers exceptional durability and is designed to withstand harsh environmental conditions. Its sleek and compact profile makes it ideal for outlining building structures, large-scale display projects, and even small-area wall-washing applications—both indoors and outdoors.
This fixture supports advanced DMX512/RDM parallel bus control technology, allowing for large data flow expansion and seamless integration into sophisticated lighting systems. The EXC-D30AB features a 17K high refresh rate that eliminates flickering when captured on camera, making it suitable for media-rich installations. Additionally, the system is capable of supporting low-brightness, high-luminance output, maintaining visual clarity and color depth even at reduced brightness levels.
Equipped with SMD LEDs in configurations including white, RGB 3-in-1, and RGBW 4-in-1, the EXC-D30AB provides up to 65,536 levels of grayscale color changing for smooth, nuanced visual effects. The fixture includes a high-transmittance tempered glass lampshade and a self-contained anti-glare plate to ensure consistent, soft, and uniform light distribution.
With full-sealed potting using German-imported, high thermal conductivity glue, the unit ensures reliable waterproofing and long-term performance stability. The low thermal resistance path design optimizes heat dissipation, while built-in outdoor lightning protection and electrostatic discharge (ESD) protection safeguard the fixture against environmental electrical hazards.
Operating on DC24V or DC48V with a maximum power consumption of 15W, the EXC-D30AB is IP66-rated and designed to perform reliably in all-weather outdoor environments. Weighing just 0.85kg, it combines lightweight design with rugged resilience, making it an ideal choice for permanent installations that demand precision, efficiency, and aesthetic impact. With a rated lifespan of 50,000 hours, it provides a dependable, long-lasting lighting solution for a wide range of architectural and creative applications.
