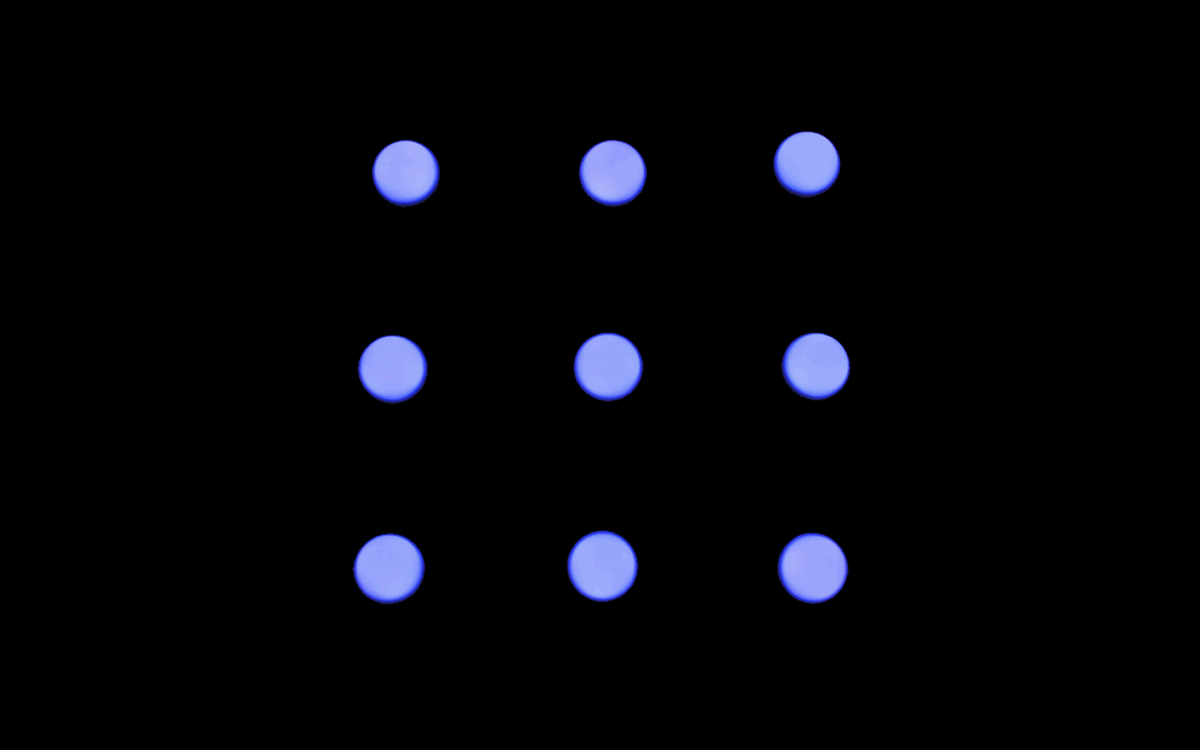

The RGB PixelPro LED Mini Dome Modules are advanced lighting solutions that combine multiple high-quality LEDs with an intelligent WS2801 integrated circuit chip to deliver vibrant, eye-catching animated effects. Each module contains one IC chip that requires three addresses for complete RGB control, allowing every dome to be independently managed for maximum creative flexibility. Extensive testing of numerous IC chips confirmed the WS2801 as the superior choice, offering the widest range of colors, faster response times, improved efficiency, and unmatched overall performance compared to alternatives. With three LEDs built into each 30 mm diffused Mini Dome, the modules are capable of producing smooth, ambient illumination and stunning dynamic effects that make them ideal for installations of any scale.
Control is both powerful and intuitive when paired with the DMX512 Pixel Decoder. The DMX512-PX-2801 converts standard DMX output into the serial protocol required for the WS2801 chip, enabling seamless integration with standard DMX controllers and lighting boards. This allows each RGB Mini Dome to be individually addressed, unlocking endless possibilities for dynamic lighting sequences, from scrolling text and graphic patterns to color waves, chasing effects, rain simulations, logos, and more. The result is a fully customizable lighting system that brings a new level of creativity to stage productions, architectural features, decorative projects, and immersive environments.
PixelPro Mini Dome Modules are manufactured in convenient strings of twenty, with input and output connectors built into each strand for easy linking. Designed with one-directional connectivity, each string uses a female input plug and male output plug, clearly marked with arrows to ensure correct orientation. Flexible wiring between modules allows versatile arrangement around installations, while built-in mounting tabs with screw holes make installation straightforward on virtually any surface. If dark spots occur, repositioning is simple, ensuring consistent and uniform coverage. For optimal performance, power injection is recommended every twenty modules to reduce voltage drop and maintain even brightness across long runs.
Each module features a 30 mm diffused plastic dome, measures 40.6 mm in length, 30.5 mm in width, and 25.4 mm in height, and operates on 12V DC with a power draw of 0.72 watts per module (14.4 watts per string). The modules provide red, green, and blue light with peak wavelengths of 623 nm, 522 nm, and 472 nm respectively, and deliver vibrant, consistent color output. Built to last, they feature an IP65 rating for water resistance, RoHS compliance, and an expected lifetime of 50,000 hours. The modules contain no ultraviolet emissions, ensuring safe use around artwork, documents, and delicate surfaces. High-quality LEDs are selected for maximum vibrancy, color rendering, and longevity, reflecting the manufacturer’s commitment to quality over commodity-grade alternatives. A limited three-year warranty is included, and detailed installation guides, design criteria, and technical support are available to ensure project success.
The PixelPro Mini Dome Modules are well suited to a wide range of applications. Their versatility makes them perfect for restaurants, lounges, casinos, and retail spaces, as well as entertainment centers, home theaters, trade show exhibits, and hospitality environments like wine cellars, yachts, and cruise ships. They can be used for pixel display boards, architectural models, edge lighting of glass and acrylic panels, downlighting and uplighting effects, egress lighting, and art illumination without the risk of UV damage. Their adaptability also makes them an excellent choice for vehicular accent lighting in limousines, RVs, and specialty cars, as well as creative projects in arts and crafts or decorative installations. Whether for professional studios, stage productions, or unique architectural designs, the RGB PixelPro LED Mini Dome Modules provide an intelligent, reliable, and easy-to-install lighting solution capable of transforming any environment.
