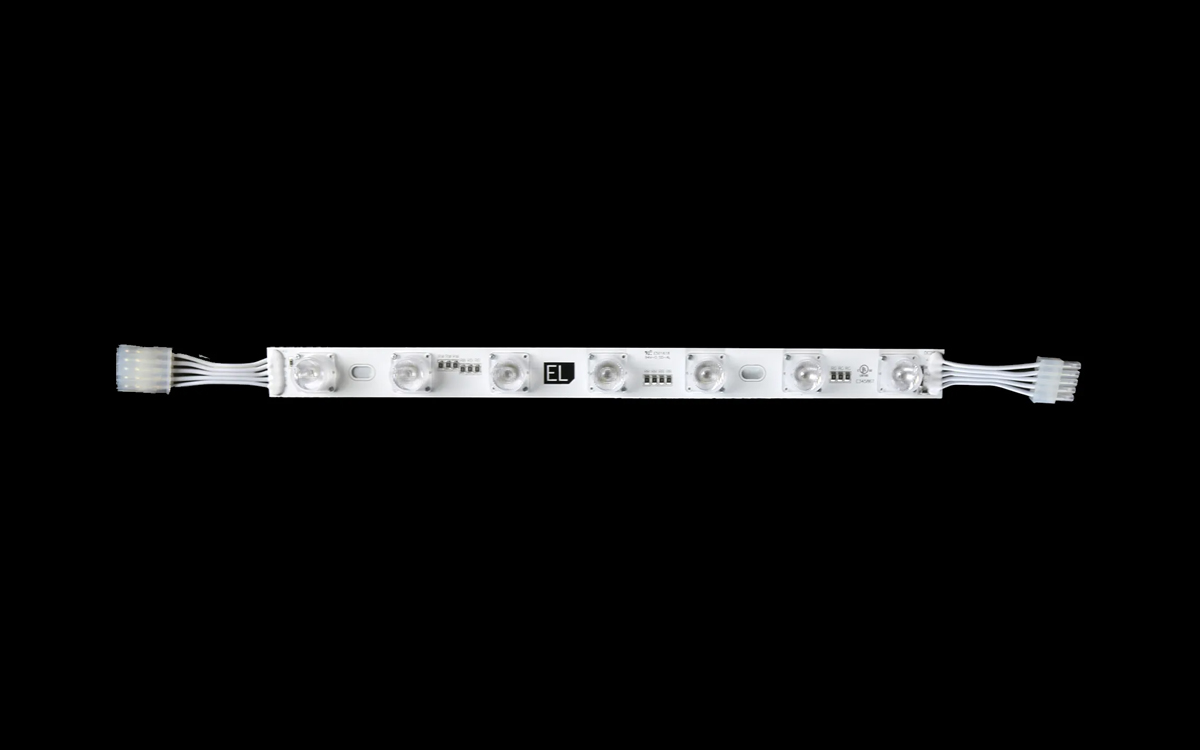

The EdgeLight RGB+6500K LED Wash Bar is a compact yet powerful lighting solution designed to illuminate interior walls, displays, and large vertical surfaces with precision and vibrancy. Measuring 333 millimeters in length, this LED wash bar blends red, green, blue, and 6500K white light to deliver endless color possibilities, making it ideal for creating customized atmospheres in retail spaces, hospitality venues, casinos, commercial interiors, and even television and film studios. With its ability to mix dynamic RGB colors with crisp white light, it provides both functional illumination and creative design flexibility.
Built for professional-grade performance, the wash bar offers a throw distance of up to five meters depending on ambient conditions and delivers an output of 193 lumens in red, 413 lumens in green, 73 lumens in blue, and 440 lumens in white. The carefully engineered beam angle of 21 degrees ensures precise wall washing and accent lighting while maintaining smooth, uniform coverage. To ensure safe and reliable operation, the fixture must be mounted properly to maintain optimal PCB temperatures below 60°C (140°F). It is best installed on a smooth, weight-appropriate metal surface, or within an aluminum channel system designed to provide adequate thermal dissipation. Failure to do so may result in excessive heat buildup and void the warranty, emphasizing the importance of proper installation for long-term reliability.
The EdgeLight RGB+6500K LED Wash Bar is designed with flexibility in mind, offering simple installation and the ability to link units together up to two meters for continuous wall washing effects. Control is seamless when paired with Environmental Lights’ wide selection of LED controllers, including DMX options combined with DMX decoders, enabling maximum customization and programming potential for sophisticated lighting effects. Its robust design carries UL, CE, and RoHS certifications and comes with a three-year limited warranty, providing peace of mind for demanding applications.
Engineered with a density of seven high-quality 3535 LED nodes per bar and a spacing of 47.6 millimeters between each node, the wash bar provides smooth, consistent output. Operating on a 24-volt DC input with a power draw of 24 watts per bar (equivalent to 72 watts per meter), it ensures efficient energy consumption while still achieving professional lighting performance. With an IP20 rating, it is suited for dry, indoor environments, making it perfect for architectural accenting, display highlighting, and immersive stage or studio design. Compact in form at just 13.11 inches long and 0.53 inches high, the wash bar offers installation versatility while delivering impactful lighting performance that enhances any space.
