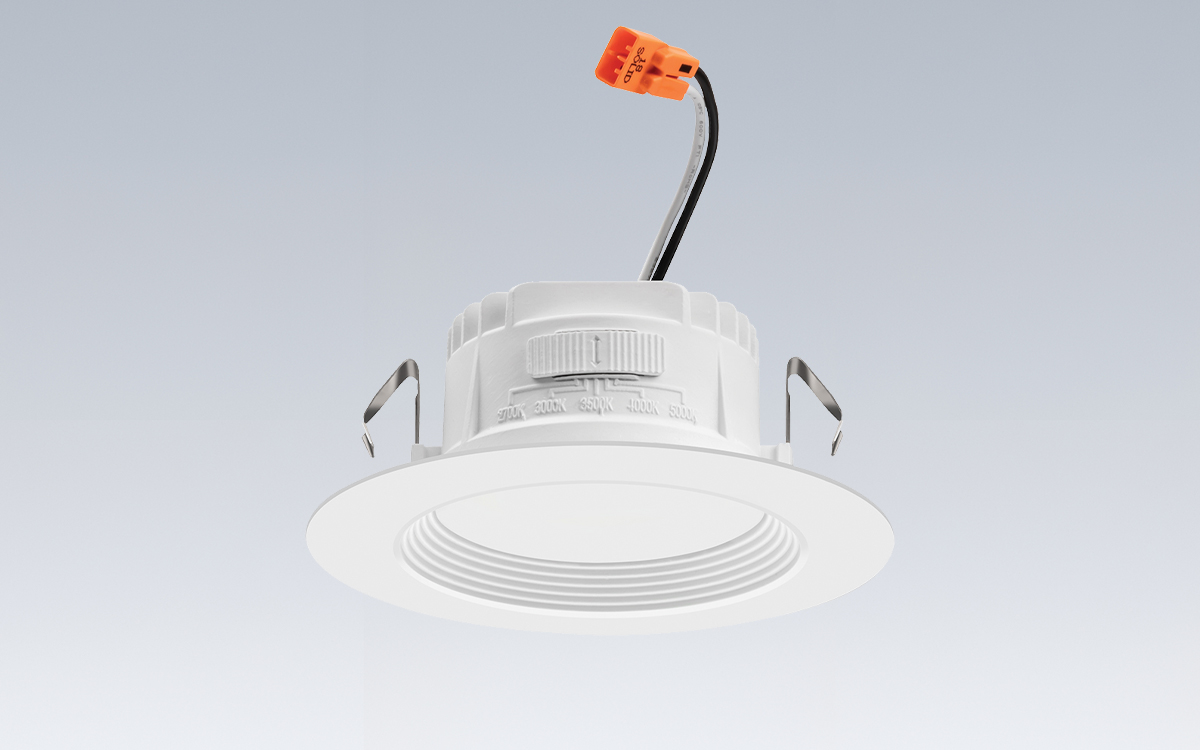

The RetroBasics™ 5CCT LED Trim Kit delivers a practical, versatile, and cost-effective downlighting solution ideal for both residential and light commercial applications. Available in 4-inch and 5/6-inch sizes, this retrofit downlight is designed to replace outdated incandescent fixtures while maintaining a clean, integrated appearance. It also pairs seamlessly with Juno® Quick Connect Housings for new construction projects, offering an efficient and affordable LED alternative with long-term performance and minimal maintenance requirements.
Constructed with a durable molded thermal plastic housing, the trim kit incorporates a non-conductive trim frame available in smooth or baffle styles to accommodate both modern and traditional aesthetics. Each fixture includes a pressed-in diffusing lens that conceals the LEDs from direct view, maintaining consistent light quality whether the fixture is on or off. The all-in-one design allows the LED light engine to mount directly to the trim, streamlining installation into existing recessed housings with medium base sockets or Juno Quick Connect LED housings. Pre-installed torsion springs provide secure mounting, while optional field-installable trim insert accessories are available in matte black, bronze, and satin nickel finishes to complement any interior design.
The LED light engine is mounted directly to the housing for optimal thermal management and extended life, maintaining at least 70% of its light output over 50,000 hours of operation. The fixture integrates switchable white LED technology, allowing users to select from five distinct color temperatures—2700K, 3000K, 3500K, 4000K, and 5000K—all in a single trim. The factory preset color temperature is 3000K, and each fixture delivers a minimum 90 CRI for superior color rendering and visual comfort. Operating at 120 volts AC and 60Hz, the trim supports smooth, flicker-free dimming from 100% to 10% using standard incandescent, magnetic low-voltage, or electronic low-voltage dimmers.
The optical system is designed to provide uniform, high-quality general lighting with a regressed diffused lens and a mixing chamber that ensures even light distribution. Optimized for wide fixture spacing, the LED trim achieves up to 860 nominal lumens, equivalent to a 75W BR30 lamp, making it ideal for ambient lighting in a variety of environments.
Installation is quick and straightforward thanks to the trim’s integrated quick connect plug, which comes pre-installed for compatibility with Juno quick connect housings. The trim also ships with a medium base socket adapter whip, allowing effortless retrofit installation into existing 5-inch or 6-inch incandescent housings.
Rated for wet locations and Air-Loc certified in accordance with ASTM E283-2004 standards, the RetroBasics 5CCT LED Trim Kit is suitable for showers, bathrooms, and outdoor soffits. Its low-profile construction makes it a versatile option for standard or shallow ceiling installations, as well as IC-rated applications in direct contact with insulation.
The fixture meets a range of regulatory and performance standards, including CSA certification for both U.S. and Canadian safety compliance, ENERGY STAR® certification, NOM certification, and California Title 24 Part 6 high efficacy requirements. It is also T20 certified, confirming its adherence to stringent efficiency and environmental benchmarks. Testing and performance data are based on industry-standard laboratory procedures, with field performance expected to closely align under normal installation conditions.
Overall, the RetroBasics 5CCT LED Trim Kit combines efficiency, flexibility, and aesthetic versatility in a single, easy-to-install fixture. With its multiple color temperature options, durable construction, and wide range of trim finishes, it offers a reliable and attractive solution for both retrofit and new construction lighting applications.
