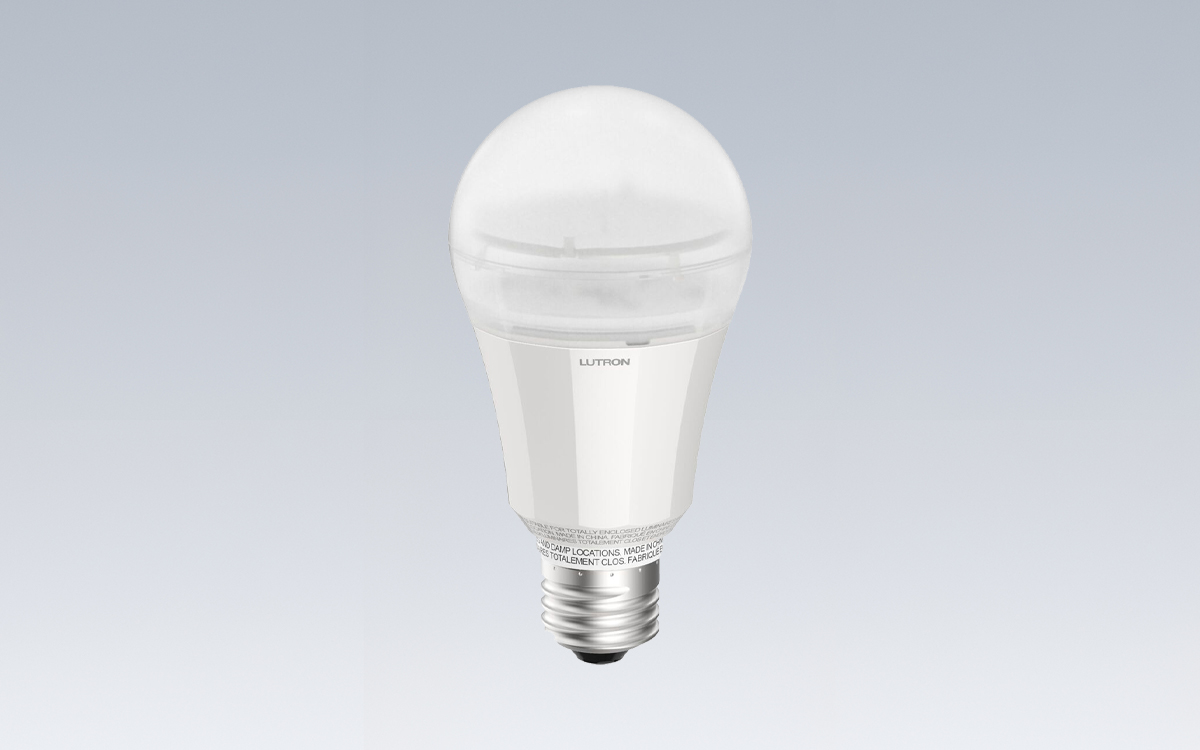

The Rania A20 LED lamp delivers natural-quality white light to wall sconces, decorative pendants, and table lamps, offering superior color fidelity and a broad range of color temperatures. Its three-channel light engine produces a spectrum of white light spanning 1,800K to 5,500K, enabling the lamp to render colors, objects, and finishes with exceptional richness and depth. With a CRI greater than 90 and an R9 above 80 from 2,700K to 5,000K, the lamp ensures high-fidelity color rendering across a variety of residential applications. Both omnidirectional 600-lumen and semi-directional 700-lumen beam angles are supported, providing flexibility for diverse lighting designs. The lamp is compatible with standard E26 and GU24 base fixtures, allowing easy retrofit installation, and maintains a rated lumen-maintenance life of 50,000 hours to L70.
The three-channel Rania light engine more precisely replicates natural daylight than conventional two-channel tunable white or warm-dim lamps. It delivers a wide range of natural white light, from a warm incandescent glow to bright afternoon sunlight, allowing the lamp to participate in dynamic lighting experiences such as Lutron’s Natural Show. Natural Show automatically adjusts the intensity and color temperature throughout the day, matching outdoor light conditions from cool noon brightness to warm evening tones. TruBeam optics produce uniform color across any beam angle, ensuring consistent visual quality across omnidirectional and semi-directional outputs. Proprietary optics and state-of-the-art color mixing technology enable the lamp to replicate natural white light more faithfully than conventional sources.
The Rania A20 LED lamp integrates seamlessly with Lutron HomeWorks, Athena, and myRoom XC systems, supporting native wireless control through Clear Connect Type X (CCX) RF communication. This allows scene selection, dimming, and dynamic adjustment of color temperature and intensity without additional wiring. Color Lock technology continuously monitors light output, maintaining precise color over the lamp’s lifetime at a one-step MacAdam ellipse. The lamp employs a single-source multi-die modular emitter LED module with LEDs binned to 3-step MacAdam ellipses, delivering consistent spectral performance and enabling diagnostic reporting capabilities to monitor input voltage and wireless connectivity. The lamp supports dimming from 100% down to 0.1% of measured luminous flux, and the full CCT range extends from 1,800K to 5,500K, supporting incandescent-like warm dimming and natural daylight simulation.
The Rania A20’s optical performance includes delivered lumens of 600 lm for omnidirectional output and 700 lm for semi-directional output, with a CRI of over 90 and an R9 greater than 80. Lumen maintenance is rated at 50,000 hours to L70 at 25°C ambient temperature. Power consumption is 8.5 W for both omnidirectional and semi-directional models, with a power factor above 0.9 and current draw of 72 mA maximum. Efficacy reaches 82 lm/W for the omnidirectional model and 97 lm/W for the semi-directional model at 4,000K. The lamp’s equivalent traditional incandescent output ranges from 40 W to 60 W.
Mechanically, the Rania A20 lamp weighs 8.39 oz (234 g) and features a powder-coated aluminum and polymer housing with a non-yellowing PMMA lens. The lamp is suitable for UL Damp Locations and IP20-rated indoor applications, and outdoor use is permitted in residential enclosed or covered patio settings only. The ambient operating temperature ranges from 32°F to 122°F (0°C to 50°C), with extended ranges from -13°F to 32°F (-25°C to 0°C), and relative humidity from 0% to 95% non-condensing. Regulatory approvals include UL, cUL, RoHS, and FCC Class B. The Rania A20 LED lamp is evaluated for emergency lighting systems when paired with the LVST model LUT-SHUNT-A-TD, complying with ULR924 and CSA C22.2 No. 141 standards. The lamp carries a five-year warranty covering the fixture, LED, and dimming functionality.
