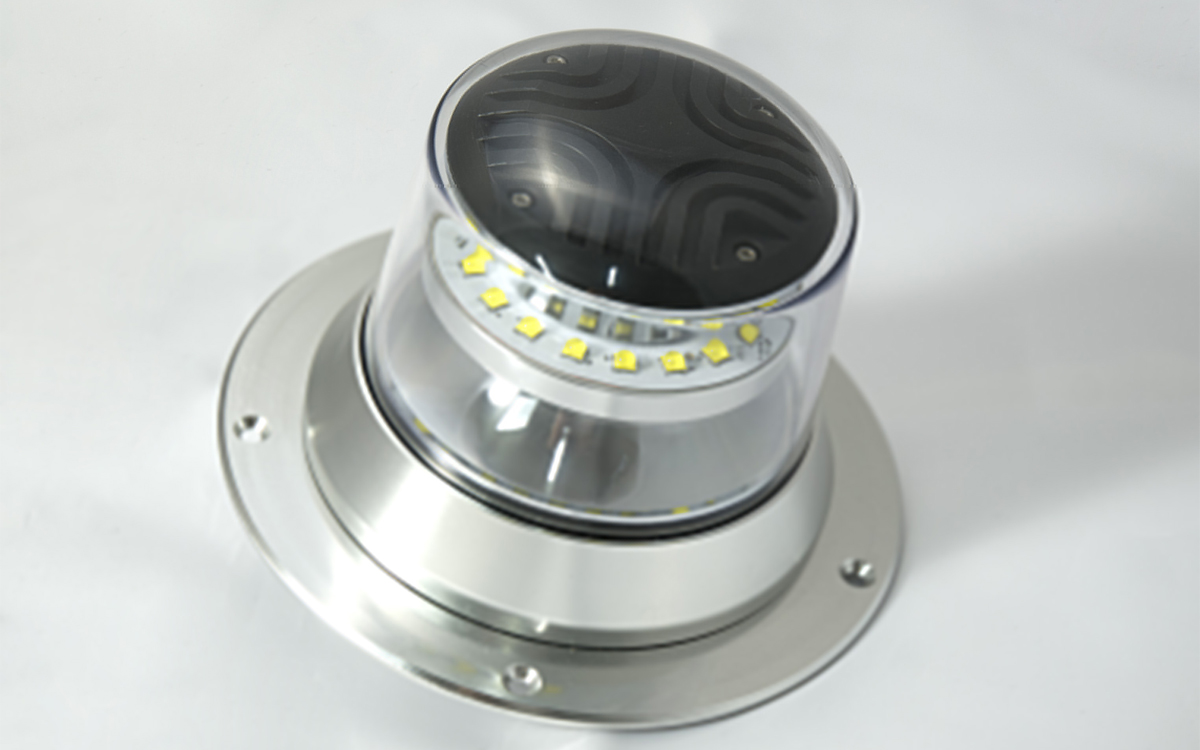

The Aveo RedBaron HISL 2200 is the ultimate high-performance anti-collision lighting solution, specifically engineered to exceed the stringent new requirements for power line and pipeline helicopter inspection operations. It stands as the world’s brightest HISL anti-collision light, offering unmatched visibility and operational confidence in the most demanding conditions.
Designed for use in challenging environments such as poor weather, urban night operations with high ambient ground lighting, or any scenario where maximum visibility is critical, the HISL 2200 is in a class of its own. For operators who demand the highest level of safety and visibility for their aircraft or helicopter, there is no comparable alternative in the industry.
One of the key features of the RedBaron HISL 2200 is its redundant internal architecture. The light integrates two completely independent power board sections and two independent LED board sections. Each section is fully functional on its own, allowing the light to continue operating even in the event of a partial failure. This means that if one circuit fails, the remaining half still delivers enough performance to meet all certification requirements, allowing the aircraft to continue its mission without compromising safety.
Offering exceptional luminous performance, the HISL 2200 delivers a maximum white light intensity of 2,500 candela and a red light intensity of 600 candela, significantly exceeding traditional TSO requirements. These outputs ensure compliance with both current and future global aviation standards, including those pushing beyond the older 400-candela benchmark to the more demanding 2,000-candela visibility standards now emerging in aviation safety protocols.
The fixture operates within a wide voltage range of 18 to 36 VDC, drawing 6.5 amps at 28 volts for the white mode and 3.9 amps for the red mode, with corresponding power consumptions of 181 watts and 110 watts respectively. Despite its powerful output, the HISL 2200 is compact and lightweight, weighing just 0.62 kg (1.36 lb), and functions reliably across extreme ambient temperatures from -55°C to +85°C (-67°F to +185°F).
Another major advantage is that the HISL 2200 requires no external power boxes or controllers, as all electronic components are integrated within the unit. This not only simplifies installation but also contributes to overall aircraft weight reduction—a critical benefit for rotary and fixed-wing operators.
Equipped with the world’s most advanced and brightest chromaticity-compliant LEDs, the RedBaron HISL 2200 is a drop-in replacement for older-generation anti-collision lights. It dramatically outperforms legacy systems that struggle to meet even the basic 400-candela threshold, delivering unprecedented optical performance in both white and red light modes.
With its superior engineering, failsafe redundancy, and unparalleled brightness, the Aveo RedBaron HISL 2200 sets a new standard in aviation anti-collision lighting—making it the ideal upgrade for safety-conscious pilots and operators flying in the most challenging operational scenarios.
