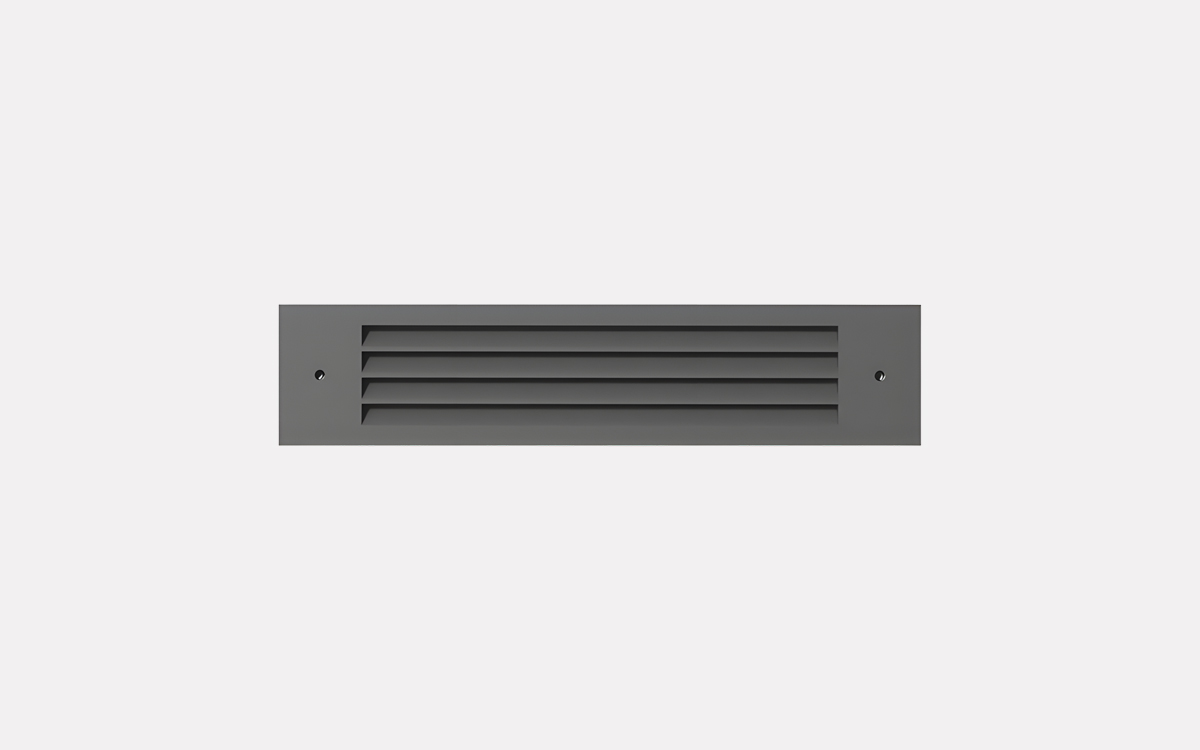

The STI134 LED is a robust and versatile floor wash luminaire designed for challenging environments. Engineered with a marine-grade die-cast aluminium alloy body and a polycarbonate main lens, the fixture offers exceptional durability and reliability. It is fully factory-sealed and requires no internal access during installation, ensuring ease of use and minimal maintenance. A silicone rubber gasket enhances its resistance to environmental factors, while ingress and impact protection ratings of IP66 and IK10, respectively, affirm its resilience in demanding applications.
To further enhance durability, the STI134 features 5CE superior corrosion protection and PCS polymer-coated stainless steel hardware, making it suitable for coastal or industrial environments. It includes two cable entries for flexible wiring options, and a pre-installation blockout is recommended for mounting in concrete, available upon request.
The luminaire is equipped with an integral EC electronic converter and incorporates advanced thermal management to protect LEDs and optimize light output. Operating on a 220–240V power supply at 50–60 Hz, it delivers a power factor greater than 0.9 and includes surge protection rated at 1-2/2 kV.
The STI134 LED is available in a range of RAL colours including Signal Black (RAL9004), White Aluminium (RAL9006), Grey Aluminium (RAL9007), Anthracite Grey (RAL7016), and Traffic White (RAL9016). Light is distributed in a floor wash pattern, and available colour temperatures include 2700 K, 3000 K, and 4000 K, catering to various lighting design needs.
