The VC Recessed Soffit Downlight offers a low-profile, efficient lighting solution designed for quick and simple ceiling installations. Crafted from marine-grade aluminum with a low-glare powder-coated finish, it blends durability with aesthetic appeal. The fixture operates on an input voltage of 10 to 15 volts and delivers a total lumen output of 156 lumens with a high efficacy of 56 lumens per watt. Its integrated LED module provides reliable illumination with a color rendering index (CRI) of over 80, ensuring vibrant and accurate color presentation.
Equipped with advanced dimming capabilities, the VC downlight supports both phase and PWM dimming, and it is compatible with Luxor technology for zoning and dimming control in up to 250 groups. While RGBW options are not available, the fixture excels in providing precise dimming from 0 to 100 percent. The unit is designed to maintain a minimum rated life of 55,000 hours (L70 B10), highlighting its long-term reliability.
The downlight’s optics feature a low-glare shield with a 30-degree beam angle, producing a strong center beam candlepower of 436 cd. Illuminance measurements indicate effective light distribution at various distances, maintaining brightness and beam width to suit different spatial requirements. The housing and faceplate are made of powder-coated marine-grade aluminum, complemented by a tempered glass lens engineered to resist shocks and tolerate thermal expansion and stress.
Weighing only 0.9 pounds (0.4 kg), the VC is lightweight yet robust, capable of operating efficiently in ambient temperatures ranging from -4°F to 122°F (-20°C to 50°C). The fixture includes flexible rubber wiring and requires a remote transformer for power, which must be specified separately. Stainless steel hardware ensures secure installation and corrosion resistance. The product is manufactured in a 9001:2015 ISO-certified facility, reflecting high quality standards.

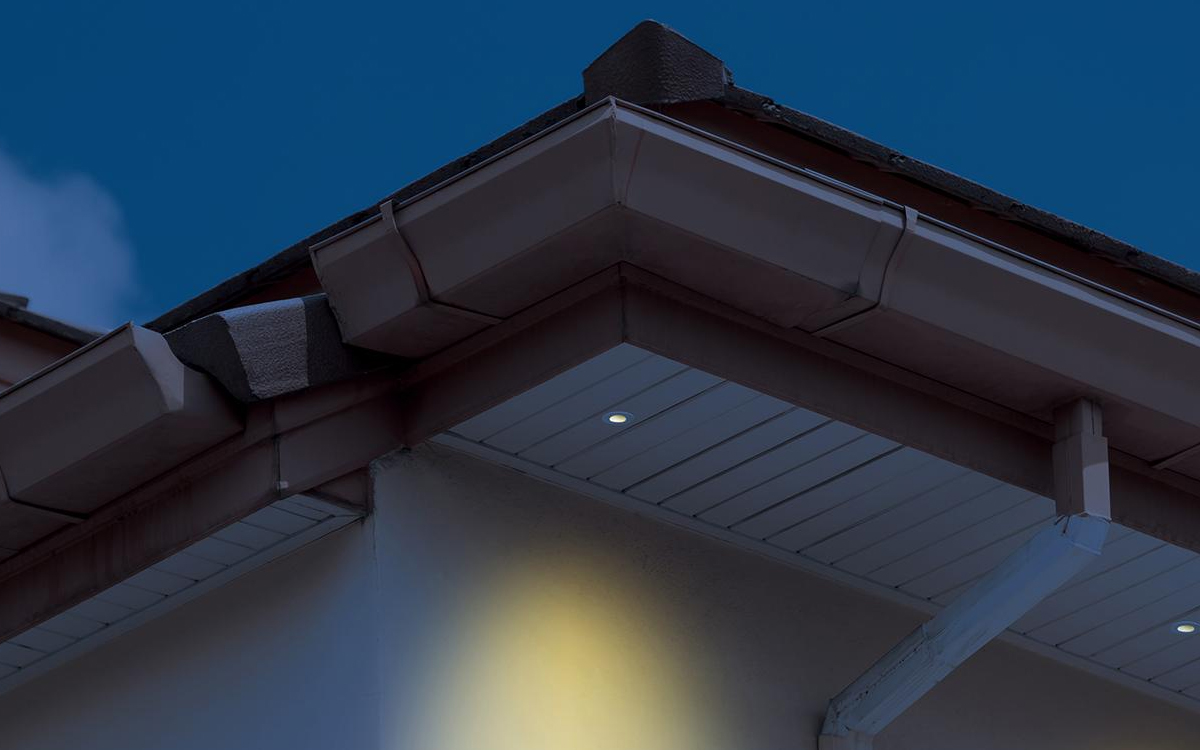

Designed for ceiling or wall-cavity mounting, the VC recessed soffit downlight is built with sustainability in mind. The manufacturing process incorporates recycled materials where possible without compromising performance. This LED product balances innovation and conservation, delivering high-quality light with optimal energy efficiency, lifespan, and durability. To support its quality, the fixture comes with a 10-year limited warranty.
