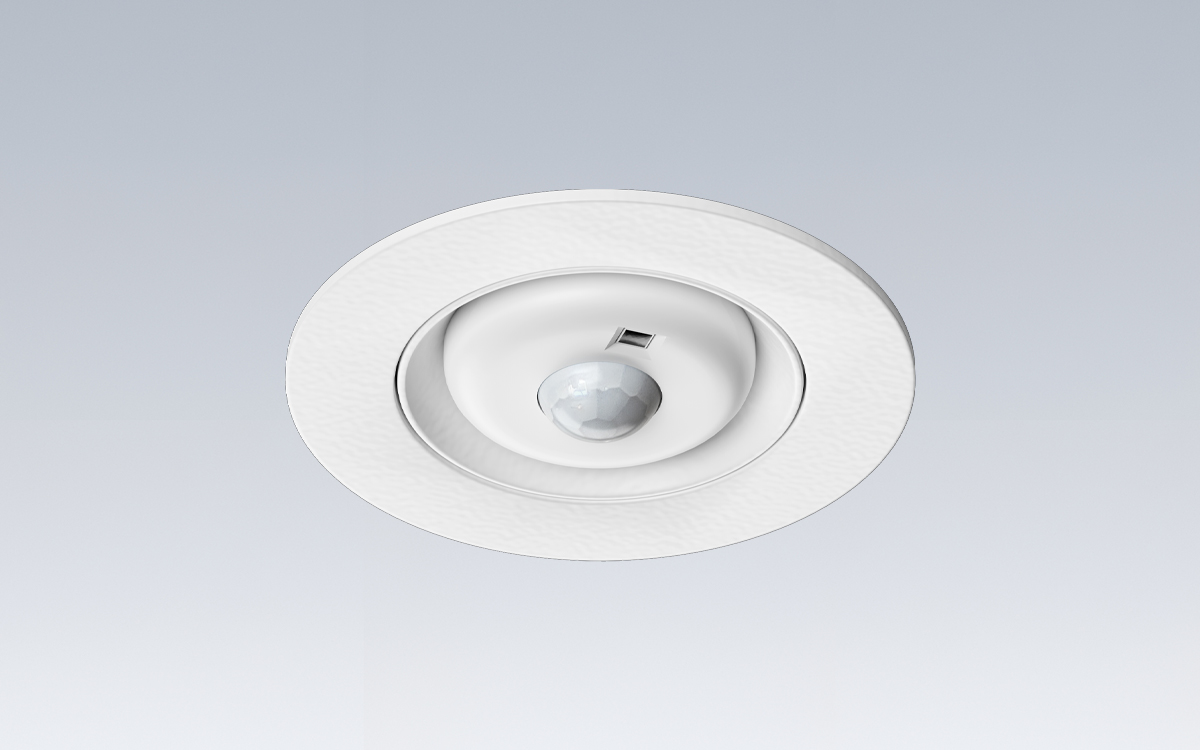

The Occupancy + Daylight Sensor is a compact ceiling-mounted device available in recessed and trimless configurations, designed to deliver precise control of indoor lighting environments. By integrating Passive Infrared (PIR) motion sensing with sophisticated daylight harvesting technology, the sensor intelligently manages lighting based on both movement and ambient light conditions. This dual-function approach ensures that lights operate only when necessary, maximizing user comfort and significantly improving energy efficiency in commercial and residential interiors.
Operating within a 12–24VDC input range, the sensor consumes just 30mA of current and up to 0.7 watts of power, making it a low-energy component ideal for continuous operation. It supports a lux detection range of 0–1000 lux and a 130° detection angle, ensuring broad sensitivity to both motion and light variations. When mounted at a maximum height of 12 feet (3.7 meters), the sensor can detect motion within a 26-foot (8-meter) diameter coverage area. It performs reliably in environments with temperatures ranging from 32°F to 113°F (0°C to 45°C) and relative humidity levels up to 95%, making it well-suited for typical indoor applications.
The device integrates several core technologies to enhance performance and compatibility. The built-in PIR sensor detects occupancy with precision, while the ambient light photocell measures natural light levels to optimize artificial lighting output. The sensor works seamlessly with 0–10V dim-to-off LED drivers, enabling smooth dimming transitions and responsive lighting control. Bluetooth Mesh qualification ensures reliable wireless connectivity and easy integration into modern lighting control networks. A discreet LED motion indicator provides visual confirmation of occupancy detection, and the 360° coverage pattern ensures full monitoring of the installation zone. Available in both white and black trim finishes, the sensor blends easily into a variety of architectural designs.
All operational parameters, including occupancy or vacancy modes, time delay adjustments, light level sensitivity, and detection range, can be conveniently customized through the BubblyNet App. This intuitive interface allows users to fine-tune sensor performance to match the specific needs of each environment, whether for offices, conference rooms, or other indoor spaces requiring responsive lighting control. Compact in size at just 1.26 inches and backed by a two-year warranty, the Occupancy + Daylight Sensor combines reliability, versatility, and intelligent control for contemporary lighting systems.
