The PO LED Wall Light is designed to provide glare-free illumination, ensuring guests can move comfortably and safely from space to space. This fixture is available in four unique shapes, offering maximum design flexibility to complement various architectural styles. Constructed with a die-cast C360 brass faceplate, A380 aluminum housing, and an ABS conduit sleeve, the PO combines durability with aesthetic appeal. It is offered in several finishes, including natural brass, antique brass with brushed or tumbled effects, and a durable TGIC powder-coated option, with antique finishes sealed by a clear TGIC powder coat for long-lasting protection.
At the heart of the PO is an integrated Cree LED module, featuring gold-plated connectors and conformal coating to ensure maximum reliability and corrosion resistance. The proprietary onboard intelligent driver uses firmware-controlled temperature regulation to maximize LED lifespan, with LEDs rated for 50,000 hours and field-replaceable if necessary. The fixture delivers 133 lumens at an input power of 1.9 watts, achieving an efficacy of 75 lumens per watt and a color rendering index (CRI) of 83, providing bright yet comfortable lighting. It operates on an input voltage of 10 to 15 volts and supports both phase and PWM dimming, compatible with Luxor technology for zoning and dimming control.
The PO features polycarbonate color temperature adjustment lenses, pre-installed with a warm 2,700K option, with additional lenses available for 3,900K, 4,500K, and 5,200K, allowing field customization of light color. Its tempered glass lens offers shock resistance and tolerates thermal expansion and stress, ensuring durability in outdoor environments. The fixture is engineered for reliable performance in ambient temperatures ranging from 0°F to 140°F (-18°C to 60°C).

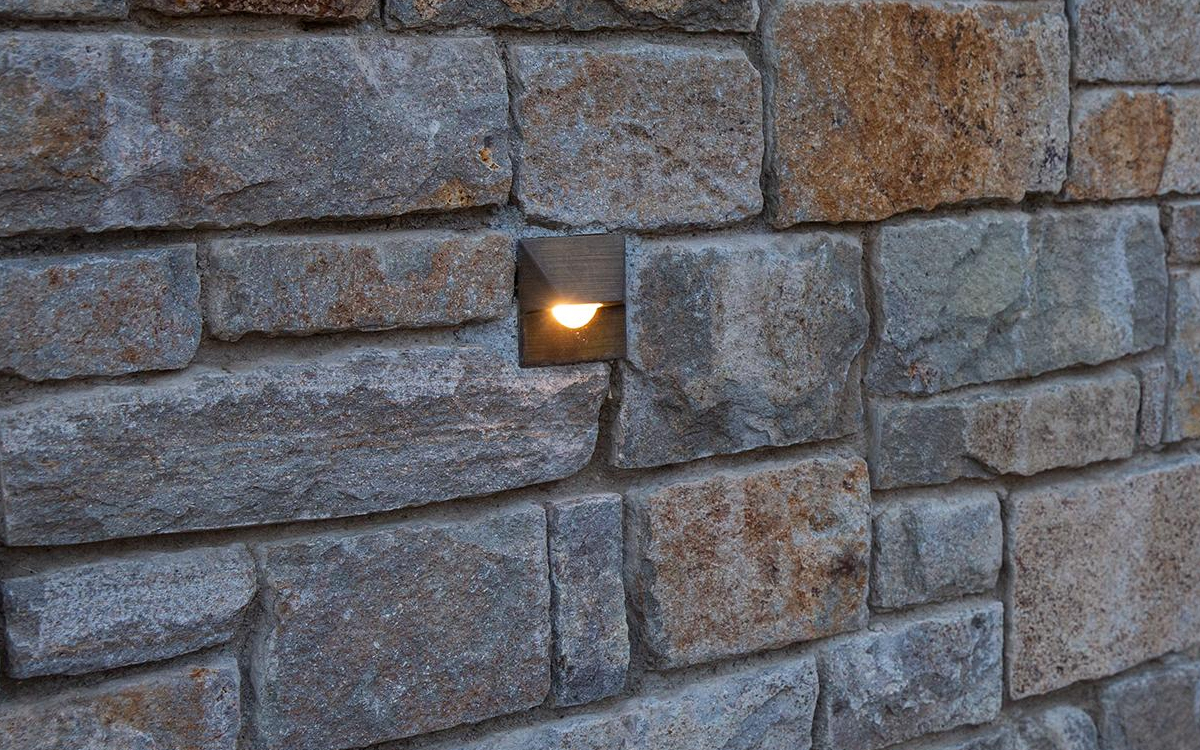

Installation is simplified with a ½"-14 NPT female hole in the ABS conduit sleeve for strain relief, which is specified separately. The PO is designed for recessed installation in vertical walls with specific orientation depending on the shape: the RD and SQ models are for down lighting only, the WW model supports any orientation, and the ST model is suitable for vertical or horizontal walls, with recommendations for adequate drainage when used for up lighting, such as in decking applications.
International compliance is ensured when used with the International Wall Kit (“EKITWALL”), meeting IEC 60598-1 and IEC 60598-2-7 standards. The PO also emphasizes sustainability by incorporating recycled materials where possible, balancing innovative design with environmental conservation. This LED wall light delivers high-quality illumination with optimal energy efficiency, longevity, and durability. It carries a 10-year limited warranty, assuring long-term performance and customer confidence.
With an output of 133 lumens, a maximum candela of 128, and IES classifications of Type IV (for RD & SQ models), Type V (ST model), and Type II (WW model), the PO LED Wall Light is a versatile, energy-efficient solution for enhancing safety and ambiance in both commercial and residential settings.
