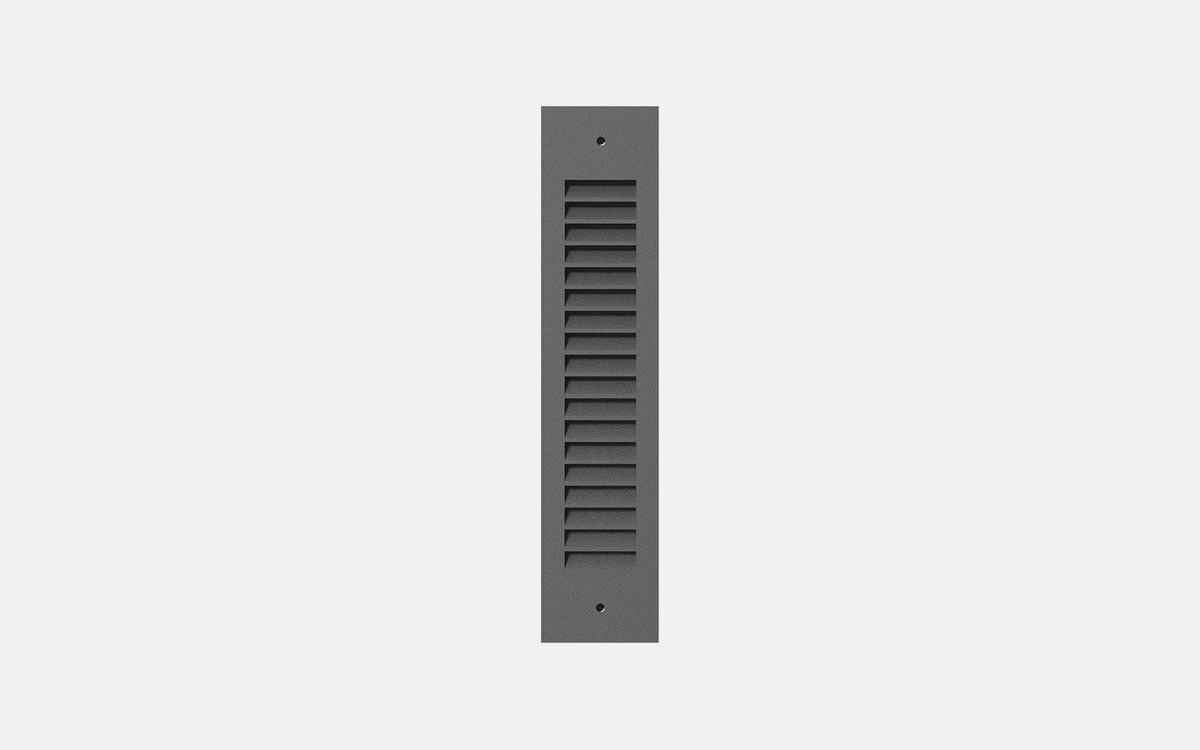

The SVL134 LED is a recessed wall luminaire engineered for durability, performance, and minimal maintenance in demanding outdoor environments. Designed with a marine-grade die-cast aluminium alloy body and protected with 5CE superior corrosion-resistant coating, it is ideal for architectural lighting applications exposed to harsh weather or coastal conditions. The luminaire features PCS polymer-coated stainless steel hardware and a robust polycarbonate main lens, providing strong protection against impacts and environmental wear.
Rated IP66 for ingress protection and IK07 for impact resistance, the SVL134 is factory-sealed to ensure long-lasting performance without requiring opening during installation. A high-grade silicone rubber gasket forms a secure seal, helping to prevent moisture and dust ingress in even the most challenging installations.
Internally, the luminaire incorporates an integral EC electronic converter with a power factor greater than 0.9, designed to operate efficiently on 220–240V, 50–60 Hz mains power. It also includes advanced thermal management to protect the LEDs and maintain consistent lumen output over time. Surge protection rated at 1–2/2 kV adds another layer of reliability, guarding the internal components against voltage spikes.
For installation in concrete walls, a pre-installation blockout is recommended and available upon request, simplifying setup and ensuring a secure fit. The SVL134 is available in a range of architectural RAL finishes, including Signal Black (RAL9004), White Aluminium (RAL9006), Grey Aluminium (RAL9007), Anthracite Grey (RAL7016), and Traffic White (RAL9016), providing flexibility to match modern design schemes.
Offering colour temperature options of 2700 K, 3000 K, and 4000 K, the SVL134 LED recessed wall luminaire is a dependable and versatile lighting solution for residential, commercial, and public spaces seeking a clean, integrated appearance with efficient illumination.
