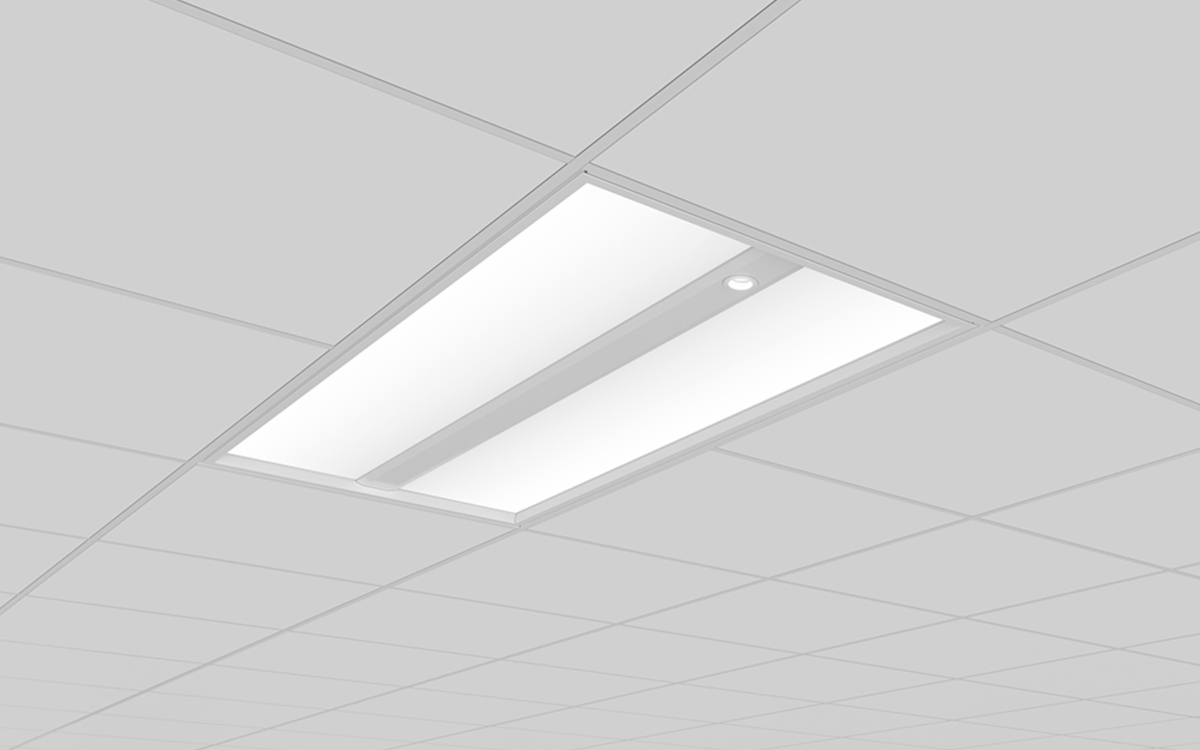

The BalancedCare™ Multi-Function Overbed luminaire is a recessed, low-profile lighting solution tailored for patient room environments where comfort, clarity, and flexibility are essential. Designed to provide visually comfortable illumination with Axis Lighting’s BeWell™ Optics, this fixture delivers glare-free light, even when viewed directly from below. Its discreet, cleanable design and functional versatility make it ideally suited for modern healthcare applications. Available in 2'x2' and 2'x4' sizes, the luminaire offers a combination of ambient, exam, and optional reading light modes, enhancing both patient comfort and caregiver efficiency.
What sets the Multi-Function Overbed luminaire apart is its seamless delivery of multiple lighting functions within a single optical system. The BeWell™ light guide transitions smoothly from soft ambient to high-powered exam lighting, eliminating the harshness typically associated with medical lighting. It achieves this without the need for separate compartments, transition lines, or pixelation, preserving the visual integrity of the room. Reading light is also available as an option, optimized for patient use in inclined bed positions, with selectable color temperatures ranging from 3000K to 4000K. Ambient and exam lighting also share this range, while Tunable White and BIOS SkyBlue® options allow dynamic spectrum control, extending from 2700K to 6500K depending on the mode.
Engineered for performance and ease of maintenance, the luminaire features a modular optical chamber with room-side access and a replaceable light engine cartridge. Its low-profile housing—just 4 inches deep—is constructed from extruded aluminum and sheet metal, with a satin frosted PMMA side lens and specular aluminum reflectors. The system is compatible with common pillow speaker controls, integrating seamlessly with patient room infrastructure. The number of circuits corresponds directly to the number of selected functions: two circuits for ambient and exam, or three when reading light is included.
Lighting performance is carefully calibrated to support healthcare best practices. Ambient lighting delivers 100–200 lux on the floor with a 4:1 average-to-minimum uniformity for general movement and communication. Exam mode provides 500–1000 lux at 36 inches above the finished floor (AFF), ensuring uniform, high-quality light for clinical evaluations from head to toe with a 2:1 uniformity ratio. Reading mode offers 400–800 lux at a 45-degree incline, ideal for patients in upright positions, with a 3:1 uniformity. For nighttime care, the luminaire supports low-level illumination at approximately 30 lux at 36" AFF, enabling staff to check on patients without disrupting sleep.
The Multi-Function Overbed luminaire supports a broad range of advanced lighting controls. Drivers include Lutron Hi-lume EcoSystem (1% dimming with Soft-on, Fade-to-Black), DALI, DMX, EldoLED LEDcode, and BIOS-enabled options. BIOS configurations include both static spectrum control (STC) and DynamicCare™ (DCA), which incorporates Bio-Dimming™—a dynamic reduction of SkyBlue spectrum for circadian-sensitive lighting. Tunable white drivers are also supported through various protocols including DALI Type 6 and Type 8, 0-10V dual-channel dimming, and Lutron DALI systems.
The luminaire is available with input voltages of 120V, 277V, 347V, universal (UNV), and DC, with optional integral or remote emergency battery backup. Certified for use in dry and damp indoor environments, it operates reliably within a temperature range of -20°C to +40°C. CRI options include a minimum of 80 or 90, with BIOS configurations offering R9 values above 75 across all CCTs for superior color fidelity. Color consistency is tightly controlled within a 3-step MacAdam ellipse, both within individual fixtures and across groups.
With a minimum rated life of 50,000 hours at 85% lumen maintenance under 25°C ambient conditions and compliant with IES LM-80 testing standards, the Multi-Function Overbed luminaire combines durability, ease of control, and exceptional lighting performance—all in a sleek form factor optimized for modern healthcare environments.
