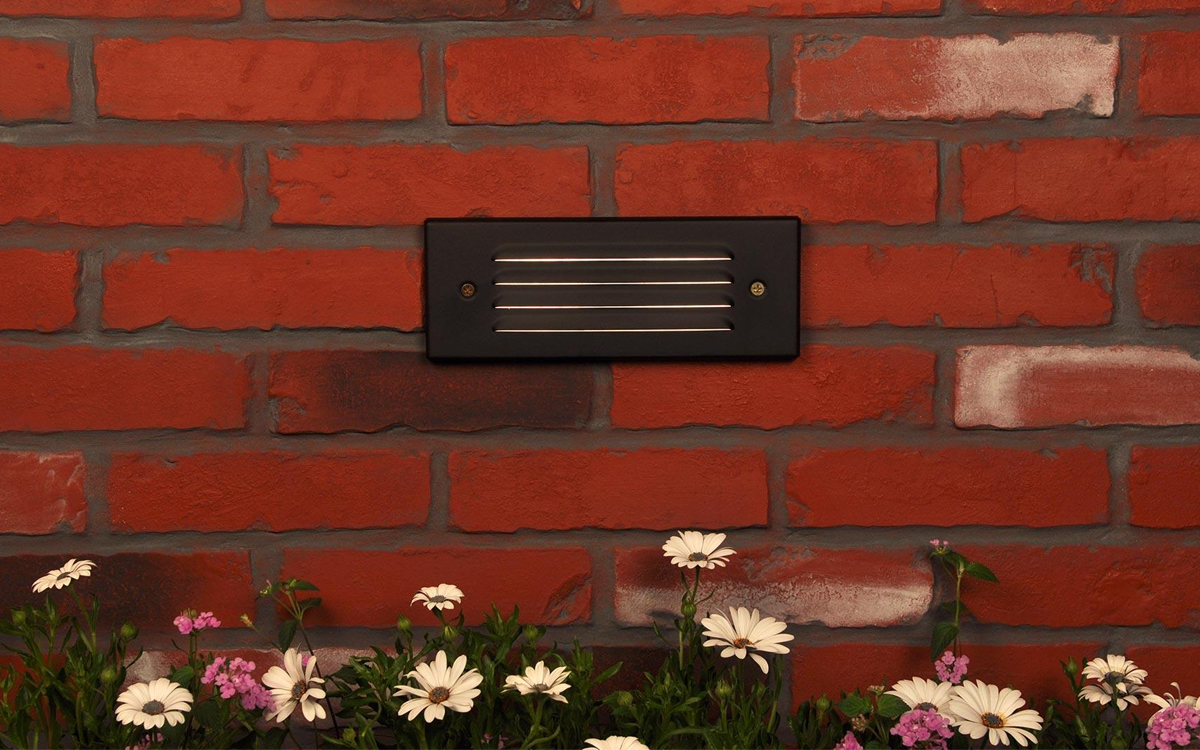

The LM LED Wall Light is designed for projects that require a higher level of illumination while maintaining a cohesive design aesthetic. It shares the same streamlined design as the CP model but delivers double the output at 20 watts, making it an ideal solution for areas where enhanced lighting is needed. The LM is particularly effective when installed in walls adjacent to stairways, offering both utility and visual consistency when used alongside CP fixtures.
Crafted with a stamped C110 copper faceplate and a durable A380 aluminum housing, the LM boasts a premium construction complemented by stainless steel hardware. The fixture integrates high-performance Cree® LEDs housed within a proprietary module that includes gold-plated connectors and conformal coating for superior corrosion resistance and reliability. A smart on-board driver with firmware-controlled temperature regulation ensures long-term performance, supporting an average LED lifespan of 50,000 hours. The LED module is also field-upgradeable and replaceable for future adaptability.
The fixture operates on an input voltage of 10–15V AC/DC and consumes 4.2 watts of power with a VA rating of 4.5, making it compatible with low-voltage outdoor lighting systems. It delivers a maximum output of 14 lumens at an efficacy of 4 lumens per watt, with a CRI of 87 and a warm 2700K color temperature using the included amber filter. Additional field-serviceable lenses are available for other CCT options including 3,900K, 4,500K, and 5,200K, allowing flexible control of lighting aesthetics.
The LM features a frosted polycarbonate lens offering high impact resistance and excellent tolerance to thermal stress. The integrated socket includes MoistureBlock™ technology to prevent moisture intrusion, ensuring dependable operation in challenging environments. The fixture comes with tamper-resistant stainless steel fasteners and is available in a variety of finish options, including natural copper, antique bronze (brushed or tumbled), or a durable TGIC powder coat. Antique finishes are sealed with a clear powder coat for added protection.
Control options include phase and PWM dimming, and the ZD version supports Luxor® technology, enabling zoning and dimming of up to 250 groups in 1% increments. The LM is suitable for recessed installation in vertical walls in the downward lighting direction only and complies with international standards (IEC 60598-1 and IEC 60598-2-7) when used with the International Wall Kit (“EKITWALL”). It operates within a temperature range of 0°F to 140°F (-18°C to 60°C) and weighs 3.6 lbs (1.6 kg). A construction sleeve with ½" NPT knockouts and a sleeve protector is included for secure and efficient installation during wall fabrication.
