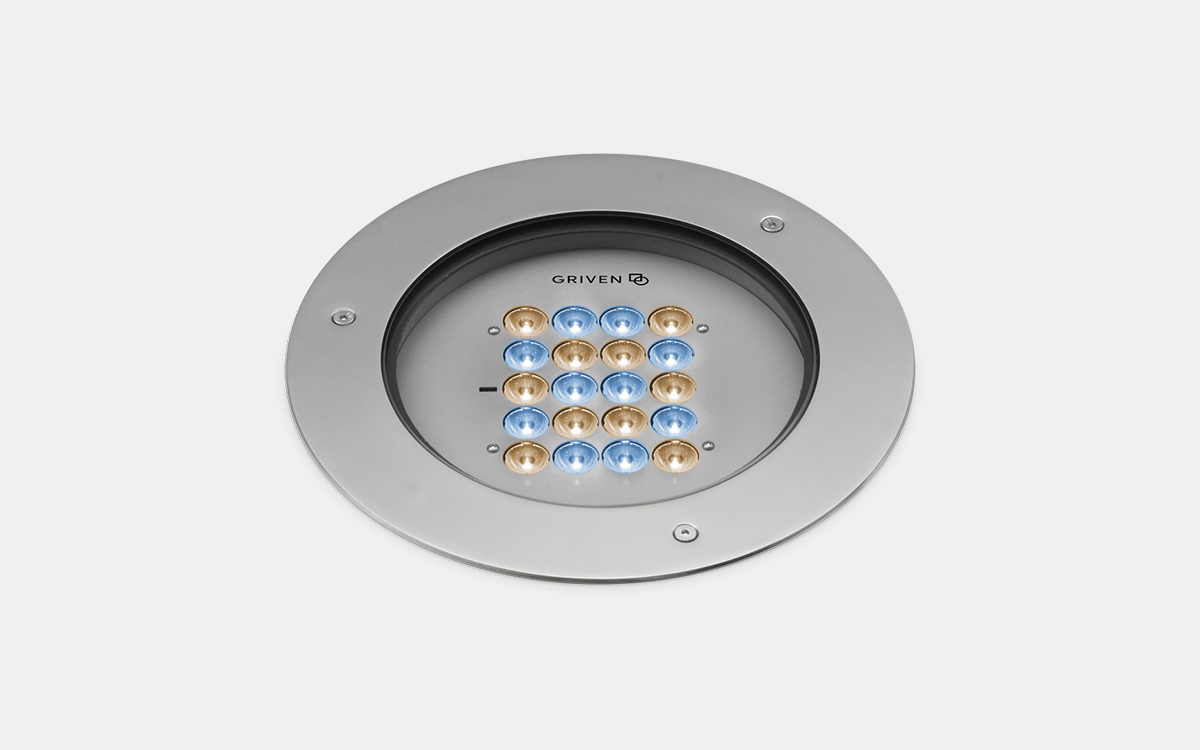

RUBY R DW is a high-performance LED uplighter specifically engineered for exterior recessed applications, offering both durability and exceptional lighting capabilities. Its compact form factor features a shallow recessed depth, making it ideal for in-ground installations where space is limited. Rated IP67 and built to withstand harsh environments, RUBY R DW also supports a 2000 kg deadweight load, allowing for safe installation in areas exposed to pedestrian or vehicular traffic.
This fixture is designed for high-impact architectural illumination, offering precise spot lighting and wide-reaching wall grazing effects. It integrates powerful tunable white multichip LEDs, delivering an adjustable color temperature range between 2700K and 6500K. This dynamic white light system ensures smooth transitions and uniform light distribution, ideal for enhancing the texture and depth of building façades and public spaces.
RUBY R DW provides an extensive range of interchangeable optical configurations, including spot, medium, wide, elliptical, and wall wash beam angles, enabling tailored lighting performance for diverse applications. With a maximum delivered luminous flux of 3667 lumens and an efficacy of up to 102 lm/W, it ensures high brightness with energy-efficient operation.
Controlled via DMX-RDM or optional remote wireless data, RUBY R DW supports seamless integration into advanced lighting systems. Measuring Ø280 mm x 155 mm and powered by a 100–277VAC input, the fixture consumes a maximum of 36W. Its robust IK09 impact rating further reinforces its suitability for outdoor architectural environments. Please note that a formwork accessory is required and must be purchased separately.
