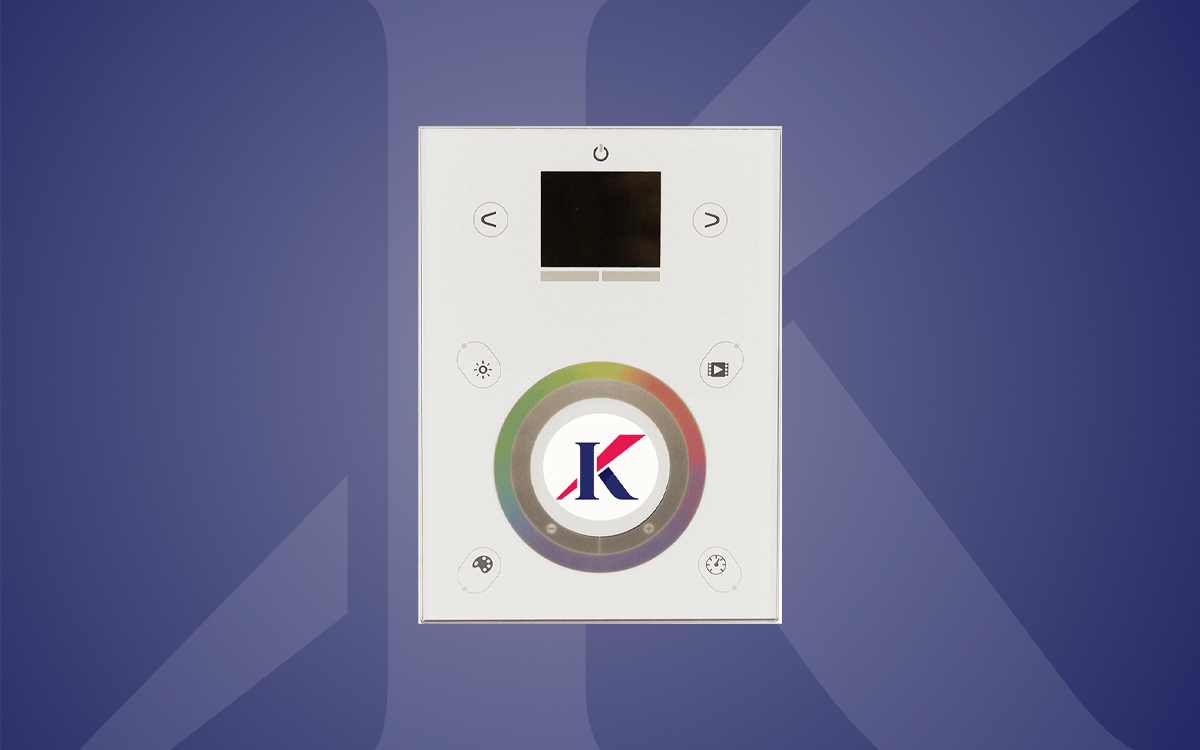

The wall-mounted DMX controller is an advanced programmable lighting control solution built specifically for RGBW fixtures and applications requiring precise, multi-zone color and intensity management. Its touchscreen interface provides an intuitive user experience suitable for a wide range of environments, including airports, convention centers, education facilities, retail spaces, hospitality venues, public areas, food service locations, and numerous healthcare applications such as cardiac cath and EP labs, emergency rooms, patient rooms, neonatal ICU, intensive care units, operating rooms, laboratories, and labor and delivery suites. The controller is designed to support complex color and scene requirements while maintaining a clean architectural presence through its tempered, sleek glass front panel.
The controller supports up to 12 preset scenes across 10 zones and includes a scroll wheel along with quick-access buttons dedicated to dimmer control, scene selection, RGB color adjustments, and speed modifications for color-changing effects. It uses multi-zone microSD memory and offers USB and direct 3-wire terminal connections using 16–22 AWG wire for programming and control. Color parameters include brightness, saturation, speed of a color-changing sequence, and fading or dimming behavior, allowing fine-tuned adjustments of RGBW lighting performance across multiple spaces. Power is supplied via a 6VDC input, with the transformer included.
The unit outputs 1024 DMX channels across two universes, enabling integration with extensive or complex RGBW fixture layouts. It also supports a broad set of trigger protocols—including eight dry contact triggers, calendar triggers, RS232, and IR—providing flexible activation and automation options. The controller mounts to a standard single-gang electrical box and is engineered to operate reliably in ambient temperatures ranging from 14°F to 113°F (–10°C to 45°C). Connection options include screw terminal blocks, RJ45 ports, and an included USB programming cable, while storage and scene data are managed using an included microSD card.
Physically, the controller measures 7.94 inches in width, 4.27 inches in depth, and 9.11 inches in vertical height, making it appropriate for wall-mounted architectural control locations. It meets FCC Part 15 requirements for EMI/RFI emissions, supporting compatibility and safe operation within sensitive environments such as hospitals, laboratories, and clinical care areas. Overall, this wall-mounted DMX controller serves as a comprehensive, multi-zone RGBW lighting control interface designed for both everyday and specialized commercial, public, and healthcare applications.
