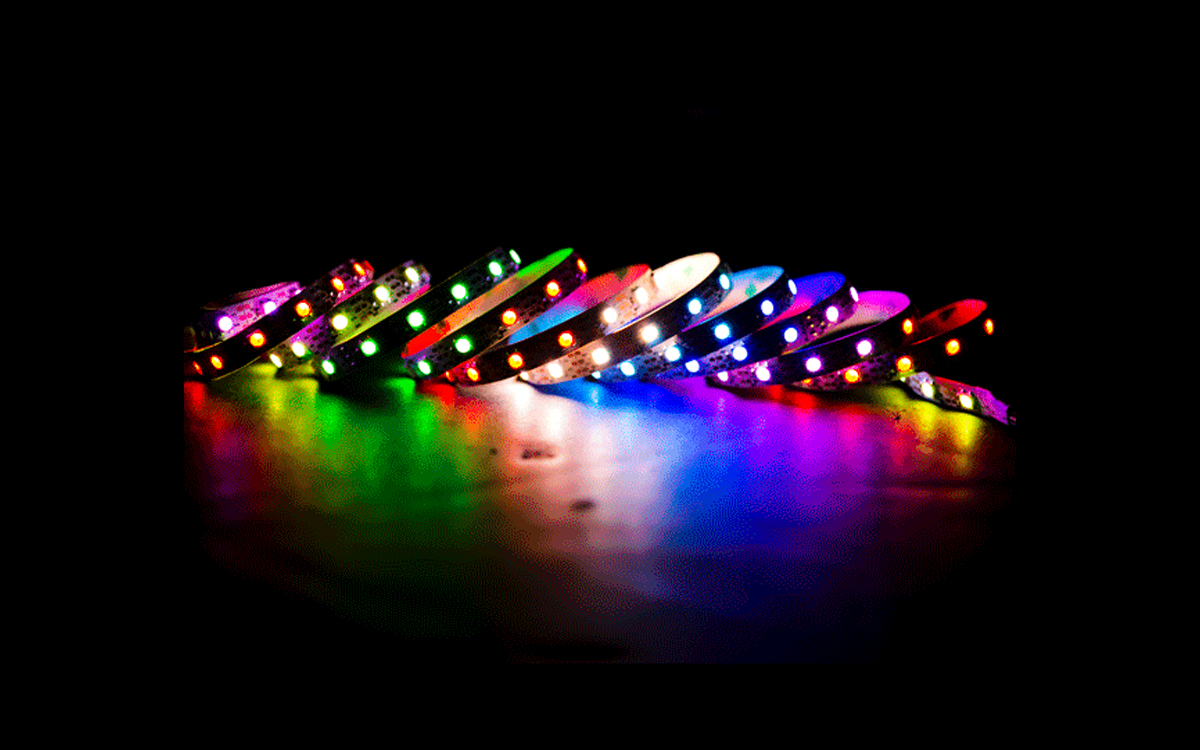

The RGBWW 4-in-1 PixelControl LED Strip Light is an advanced pixel LED solution that dramatically enhances the range of color mixing possibilities by combining standard RGB LEDs with 2,700K warm white in a single node. This combination allows lighting designers to create richer, warmer tones that were previously unattainable with conventional RGB-only pixel strips. Each pixel contains one RGBWW 4-in-1 LED, enabling designers to mix RGB with warm white on a pixel-by-pixel basis. This allows for smooth gradients, eye-catching fades, and highly customizable animated effects. Each two-meter reel contains 120 individually addressable pixels, with a high density of 60 LEDs per meter and a compact 10mm width, providing precise placement and flexible installation options. The strip is cuttable at every LED, offering the smallest possible increment for custom layouts.
The RGBWW 4-in-1 PixelControl LED Strip is fully compatible with a wide selection of PixelControl LED controllers, giving users complete control over color, speed, brightness, and animation direction without requiring additional DMX decoders. For integration into DMX-based systems, the RGBWW 4-in-1 Strip can be used with the DMX512 V2 PixelControl Decoder, which translates standard DMX output into the serial protocol required by the WS2814 IC driving the LEDs. This compatibility makes the strip suitable for both standalone installations and complex, professional DMX setups.
Each reel is equipped with a female SM connector on the input side and a male SM connector with a built-in power injector on the output side. For reliable performance in linked installations, it is recommended to inject power every two meters to prevent voltage drop and maintain consistent brightness. The strip is directional, with arrows clearly indicating the correct input orientation. When using SM connectors, the maximum recommended amperage is 3.5A per connector to ensure safe and stable operation.
Technically, the RGBWW 4-in-1 PixelControl LED Strip offers a highly versatile and precise lighting solution. Each pixel is individually addressable in the order of Green, Red, Blue, and White, with power supplied at 5 VDC. Each reel contains 120 pixels, corresponding to approximately 0.93 DMX universes, and consumes 25.5 watts per reel or 12.8 watts per meter. The strip is cuttable every 0.65 inches (16.7 mm), allowing for highly customized layouts. The LEDs feature wavelengths of 623 nm (red), 522 nm (green), 472 nm (blue), and a warm white channel at 2,700K, providing high-quality, vivid color rendering and visually pleasing warm tones.
The RGBWW 4-in-1 PixelControl LED Strip is ideal for applications requiring animated RGB and white lighting effects, including architectural lighting, stage and entertainment productions, retail displays, interactive installations, and decorative projects. The combination of pixel-level control, high-quality LEDs, compact form factor, and compatibility with DMX and PixelControl systems allows designers to create vibrant, dynamic, and professional-grade lighting experiences. With a 3-year limited warranty, the strip ensures reliable performance and long-term operation, making it a dependable choice for demanding installations.
